SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM 0005 1COWL 0006 1COWL 0007 1INSTRUMENT PANEL 0008 1INSTRUMENT PANEL 0009 1IGNITION & COMBINATION SWITCH0010 1IGNITION & COMBINATION SWITCH0011 1DOOR,ROOF,FLOOR,SEAT & LUGGAG

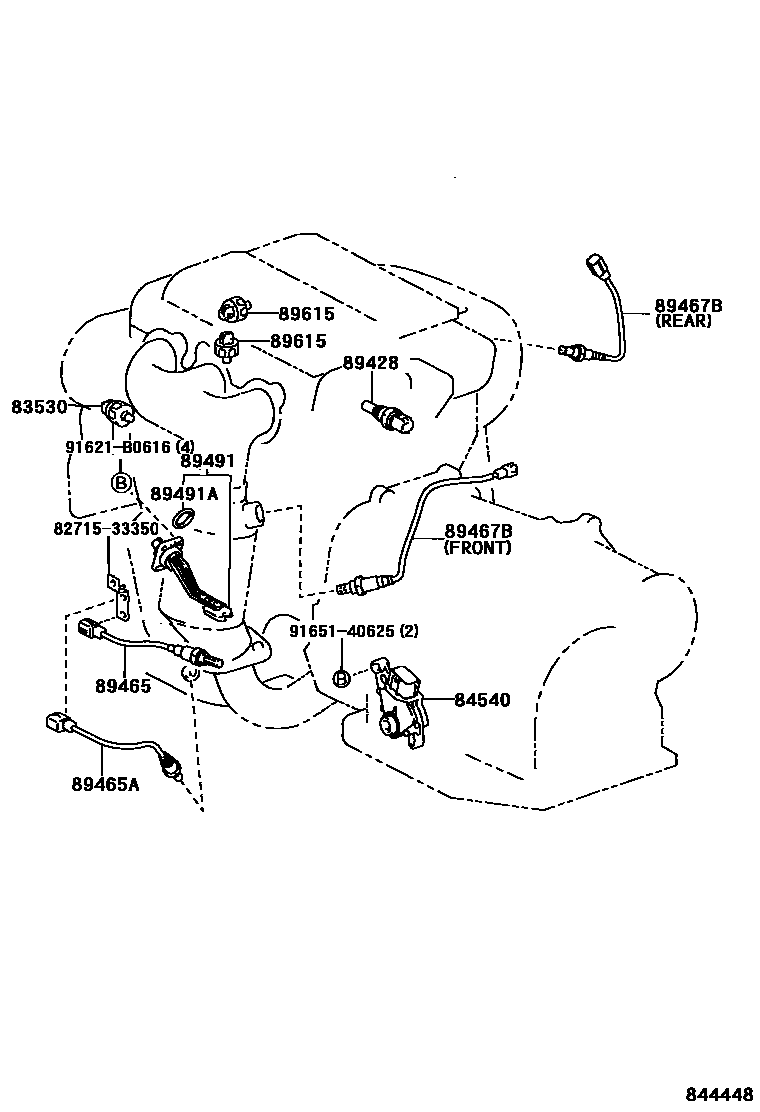

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iACV3#,MCV30200108-200406

DENSO

main83530-60020iACV3#,MCV30200108-200406

YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-32110iACV3#,MCV30..ATM200108-200307

main84540-48010iACV3#,MCV30..ATM200406

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-41010iMCV30200108-200406

89465SENSOR, OXYGEN

main89465-33220iACV3#200108-200406

main89465-33250iMCV30200406

89465ASENSOR, OXYGEN NO.2

main89465-33260iMCV30200108-200406

89467BSENSOR, AIR FUEL RATIO

main89467-33040iACV3#200406

main89467-33050iMCV30200406

FRONT

main89467-33060iMCV30200108-200406

REAR

89491SENSOR, ENGINE OIL LEVEL

main89491-28070iACV30200108-200212

main89491-28071iACV30200212-200406

main89491-33030iMCV30200108-200406

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iACV30200406

main90430-27001iMCV30200108-200406

89615SENSOR, KNOCK CONTROL

main89615-12090×2iMCV30200108-200406

main89615-32030iACV30200108-200406

W/O(PAINTED=ORANGE)

main89615-44010iACV30200108-200406

W(PAINTED=ORANGE)

8271533350BRACKET,WIRING HARNESS CLAMP

main82715-33350

91621B0616

main91621-B0616

9165140625

main91651-40625

12 parts on this diagram · 11 diagrams in section
