METER

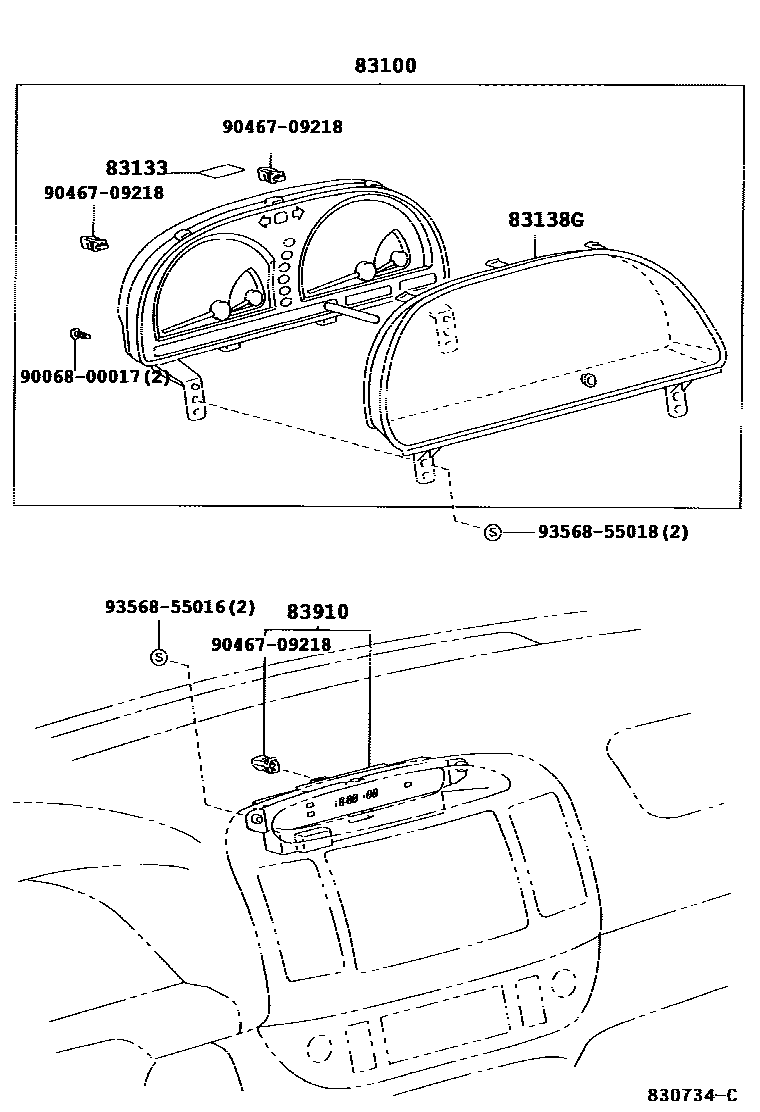

Parts diagram

83100METER ASSY, COMBINATION

main83800-06C40i200406

main83800-06C50i200406

main83800-06C60i200406

main83800-06C70i200406

main83800-06C80i200406

main83800-06C90i200406

main83800-06D30i200406

main83800-06D40i200406

main83800-0W040i200109-200304

main83800-0W041i200304-200406

main83800-0W050i200109-200304

main83800-0W051i200304-200406

main83800-0W060i200109-200304

main83800-0W061i200304-200406

main83800-0W070i200108-200304

main83800-0W071i200304-200406

main83800-0W080i200108-200304

main83800-0W081i200304-200406

main83800-0W090i200108-200304

main83800-0W091i200304-200406

main83800-0W100i200109-200406

INDIA OR GENERAL(UNLEADED) SPEC

main83800-0W101i200304-200307

INDIA OR GENERAL(UNLEADED) SPEC

main83800-0W110i200109-200304

HONG KONG OR SINGAPORE OR GENERAL(UNLEADED) SPEC

main83800-0W111i200304-200406

HONG KONG OR SINGAPORE OR GENERAL(UNLEADED) SPEC

main83800-0W120i200109-200304

HONG KONG OR SINGAPORE OR GENERAL(UNLEADED) SPEC

main83800-0W121i200304-200406

HONG KONG OR SINGAPORE OR GENERAL(UNLEADED) SPEC

main83800-0W160i200109-200304

main83800-0W161i200304-200406

main83800-0W170i200108-200304

main83800-0W171i200304-200406

83133PLATE, COMBINATION METER, NO.1

main83811-0W240i200108-200406

83138GGLASS, COMBINATION METER

main83852-06B50i200406

main83852-0W260i200108-200406

83910CLOCK ASSY

main83910-33070i200108-200406

9006800017

main90068-00017

9046709218

main90467-09218

9356855016

main93568-55016

9356855018

main93568-55018

8 parts on this diagram · 2 diagrams in section
