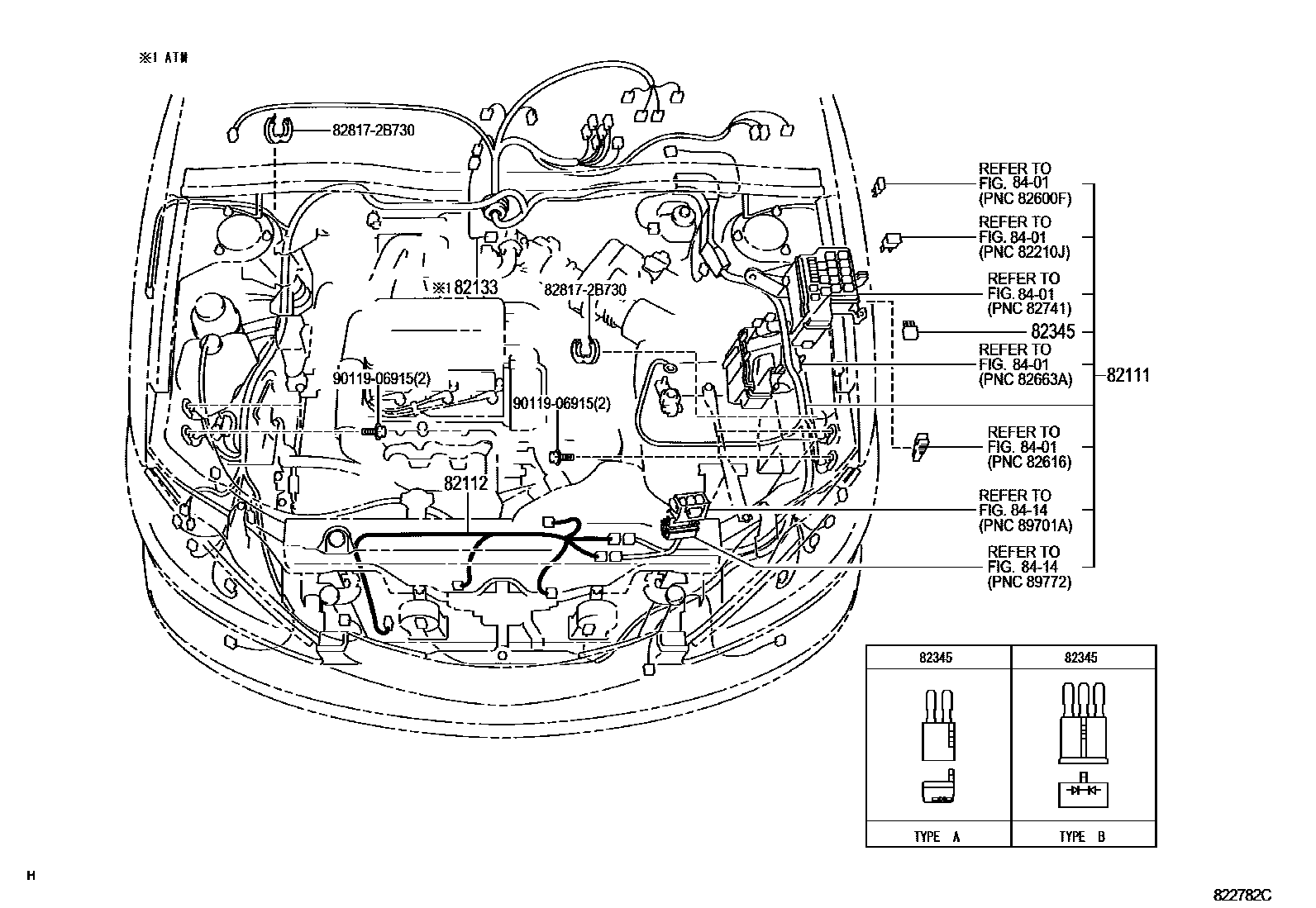

82111WIRE, ENGINE ROOM MAIN

main82111-33B90iACV30..LHD200406

main82111-33C10iMCV30..LHD200406

main82111-33C30iACV31..LHD200406

main82111-33C40iACV30..RHD200406

main82111-33C50iMCV30..RHD200406

main82111-33C60iACV31..RHD200406

main82111-3Y030iACV30..LHD200108-200307

main82111-3Y031iACV30..LHD200307-200406

main82111-3Y040iACV30..LHD200108-200307

W(DAY TIME RUNNING LIGHT SYSTEM)

main82111-3Y041iACV30..LHD200307-200406

W(DAY TIME RUNNING LIGHT SYSTEM)

main82111-3Y050iMCV30..LHD200108-200307

main82111-3Y051iMCV30..LHD200307-200406

main82111-3Y060iMCV30..LHD200108-200307

W(DAY TIME RUNNING LIGHT SYSTEM)

main82111-3Y061iMCV30..LHD200307-200406

W(DAY TIME RUNNING LIGHT SYSTEM)

main82111-3Y070iACV31..LHD200108-200307

main82111-3Y071iACV31..LHD200307-200406

main82111-3Y080iACV30..RHD200109-200307

main82111-3Y081iACV30..RHD200307-200406

main82111-3Y090iMCV30..RHD200109-200307

main82111-3Y091iMCV30..RHD200307-200406

main82111-3Y100iACV31..RHD200109-200307

main82111-3Y101iACV31..RHD200307-200406

82112WIRE, ENGINE ROOM, NO.2

main82112-33020iACV3#200108-200406

main82112-33040iMCV30200108-200406

82133WIRE, COWL, NO.3

main82133-33010iACV30,MCV30..LHD..ATM200108-200406

82345DIODE

main82345-12050iACV3#200108-200406

TYPE A:REFER TO ILLUSTRATION

main82345-12050iACV3#200406

TYPE A:REFER ILLUST.

main82345-32020iMCV30200406

TYPE B:REFER ILLUST.

main82345-32020iACV3#,MCV30200108-200406

TYPE B:REFER TO ILLUSTRATION

8401

8414

828172B730PROTECTOR, WIRING HARNESS, NO.1

main82817-2B730

9011906915

main90119-06915

8 parts on this diagram · 19 diagrams in section
