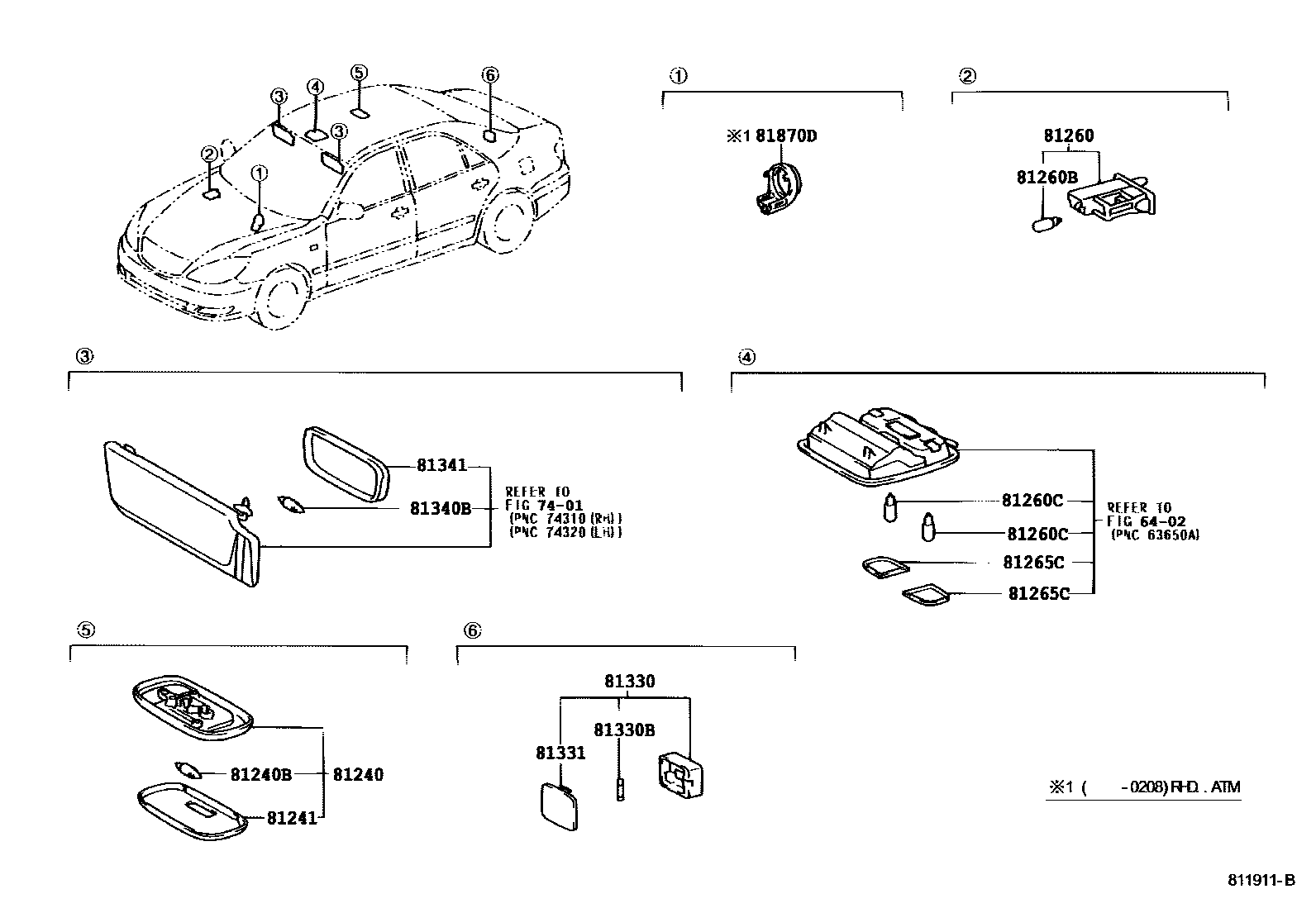

INTERIOR LAMP

6402

7401

81240LAMP ASSY, ROOM, NO.1

main81240-33030-A0iACV3#,MCV30200108-200406

IVORY,TRIM4#

main81240-33030-B0iACV3#,MCV30200108-200406

LT.GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-14001iACV3#,MCV30200108-200209

12V 3W

main90981-14011iACV3#,MCV30200406

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-33030iACV3#,MCV30200108-200406

81260LAMP ASSY, GLOVE BOX

main81260-33030iACV3#,MCV30200108-200406

81260BBULB(FOR GLOVE BOX)

main90981-11018iACV3#,MCV30200108-200406

12V 1.2W W/O SOCKET

81260CBULB(FOR MAP LAMP)

main90084-81002×2iACV3#,MCV30200406

12V 5W

main90084-98049×2iACV3#,MCV30200108-200206

12V 8W

81265CLENS, MAP LAMP, NO.1

main81265-AA010iACV3#,MCV30200406

RH

main81265-AA020iACV3#,MCV30200406

LH

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-33010iACV3#,MCV30200406

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-14009iACV3#,MCV30200406

12V 3W

81331LENS, LUGGAGE COMPARTMENT LAMP

main81338-33010iACV3#,MCV30200108-200406

81340BBULB (FOR VANITY LAMP)

main90084-98013×4iACV3#,MCV30200108-200406

81341LENS, VANITY LAMP

main81351-AA010×2iACV3#,MCV30200108-200406

81870DLAMP ASSY, KEY CYLINDER

main81870-33070iACV3#,MCV30..RHD..ATM200109-200208

15 parts on this diagram · 1 diagram in section
