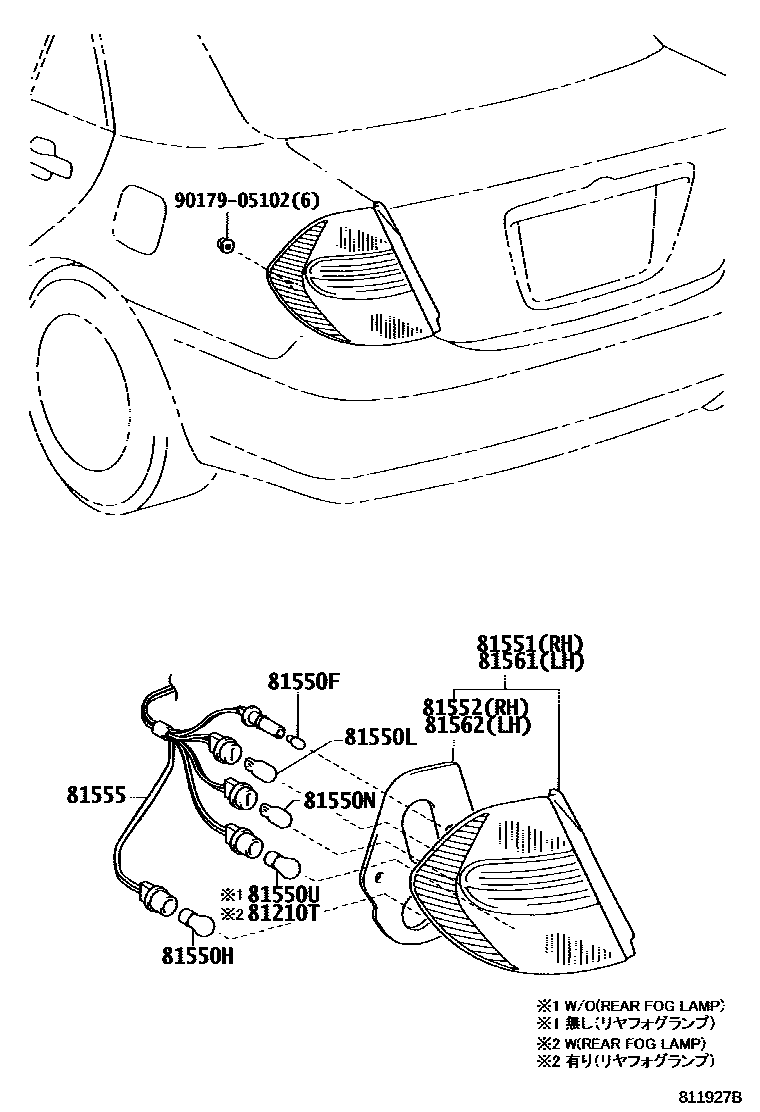

REAR COMBINATION LAMP

0001 1 0002 1

81210TBULB, REAR FOG LAMP

main90981-13043iACV31..LHD;ACV30,MCV30200406-200601

12V 21W

main90981-13044iACV31..LHD;ACV30,MCV30200305-200406

12V 21/5W

81550FBULB, TAILLAMP

main99132-12050iACV3#,MCV30200108-200601

12V 5W

81550HBULB, TAIL & STOP LAMP

main90981-13044iACV31..LHD;ACV30..RHD..MTM200108-200601

12V 21/5W

81550LBULB, REAR TURN SIGNAL LAMP

main90981-11059iACV3#,MCV30200108-200406

12V 16W

main90981-15021iACV3#,MCV30200406-200601

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059iACV3#,MCV30200108-200601

12V 16W

81550UBULB, STOP LAMP

main90981-13044iACV31..RHD;ACV30..LHD..MTM;ACV30,MCV30..ATM200108-200406

12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-33260iACV31..RHD;ACV30..LHD..MTM;ACV30,MCV30..ATM200108-200406

CHILE OR HONG KONG OR SINGAPORE SPEC

main81551-33270iACV31..LHD;ACV30,MCV30200108-200406

main81551-33370iACV31..RHD200406

CHILE OR HONG KONG SPEC

main81551-33390iACV31..LHD;ACV30,MCV30200406

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-33260iACV3#,MCV30200108-200406

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-33260iACV31..RHD;ACV30..LHD..MTM;ACV30,MCV30..ATM200108-200406

CHILE OR HONG KONG OR SINGAPORE SPEC

main81555-33270iACV31..LHD;ACV30,MCV30200108-200406

COLD SPEC

main81555-33370iACV30,MCV30..RHD..ATM200406

HONG KONG SPEC

main81555-33370iACV31..RHD200406

CHILE SPEC

main81555-33390iACV31..LHD;ACV30,MCV30200406

81561LENS, REAR COMBINATION LAMP, LH

main81561-33260iACV31..RHD;ACV30..LHD..MTM;ACV30,MCV30..ATM200108-200406

CHILE OR HONG KONG OR SINGAPORE SPEC

main81561-33270iACV31..LHD;ACV30,MCV30200108-200406

main81561-33340iACV31..RHD200406

CHILE OR HONG KONG SPEC

main81561-33360iACV31..LHD;ACV30,MCV30200406

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81562-33260iACV3#,MCV30200108-200406

9017905102

main90179-05102

12 parts on this diagram · 2 diagrams in section
