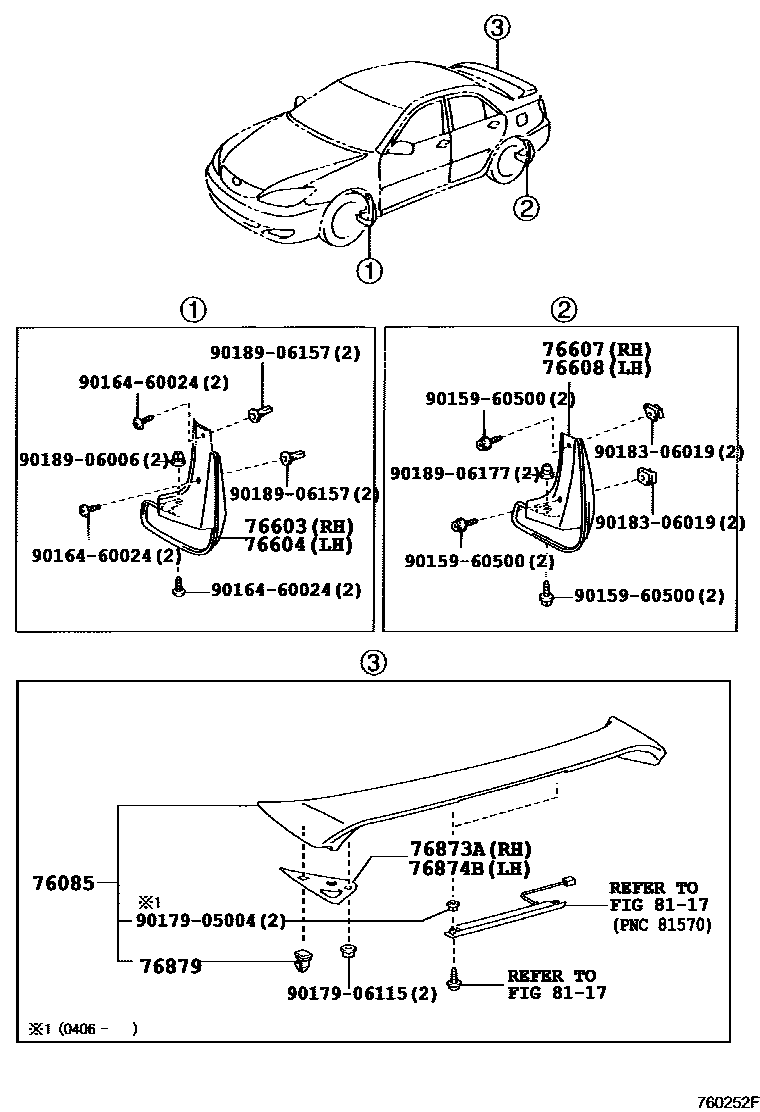

MUDGUARD & SPOILER

76085SPOILER SUB-ASSY, REAR

main76085-33090iACV3#,MCV30200108-200410

sub76085-33091

main76085-33091iACV3#,MCV30200411-200601

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-33080iACV30,MCV30200108-200406

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-33080iACV30,MCV30200108-200406

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-33110iACV30,MCV30200108-200601

NO PAINT REQ.

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-33110iACV30,MCV30200108-200601

NO PAINT REQ.

76873APROTECTOR, REAR SPOILER, RH

main76781-33010iACV3#,MCV30200108-200406

76874BPROTECTOR, REAR SPOILER, LH

main76782-33010iACV3#,MCV30200108-200406

76879CLIP, REAR SPOILER, NO.1

main76879-12040iACV3#,MCV30200108-200406

8117

9015960500

main90159-60500

9016460024

main90164-60024

9017905004

main90179-05004

9017906115

main90179-06115

9018306019

main90183-06019

9018906006

main90189-06006

9018906157

main90189-06157

9018906177

main90189-06177

17 parts on this diagram · 1 diagram in section
