BATTERY CARRIER

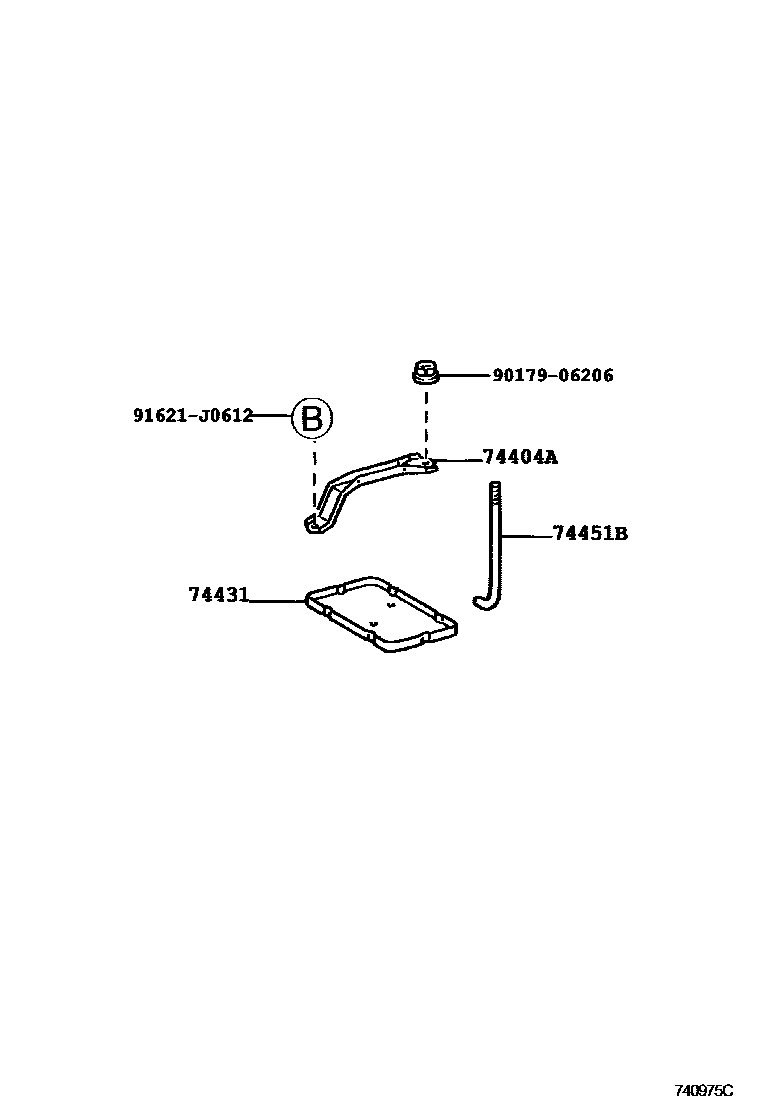

Parts diagram

74404ACLAMP SUB-ASSY, BATTERY

main74404-33090i200108-200406

74431TRAY, BATTERY

main74431-33011i200108-200406

74451BBOLT, BATTERY CLAMP

main74452-33010i200108-200406

9017906206

main90179-06206

91621J0612

main91621-J0612

5 parts on this diagram · 1 diagram in section
