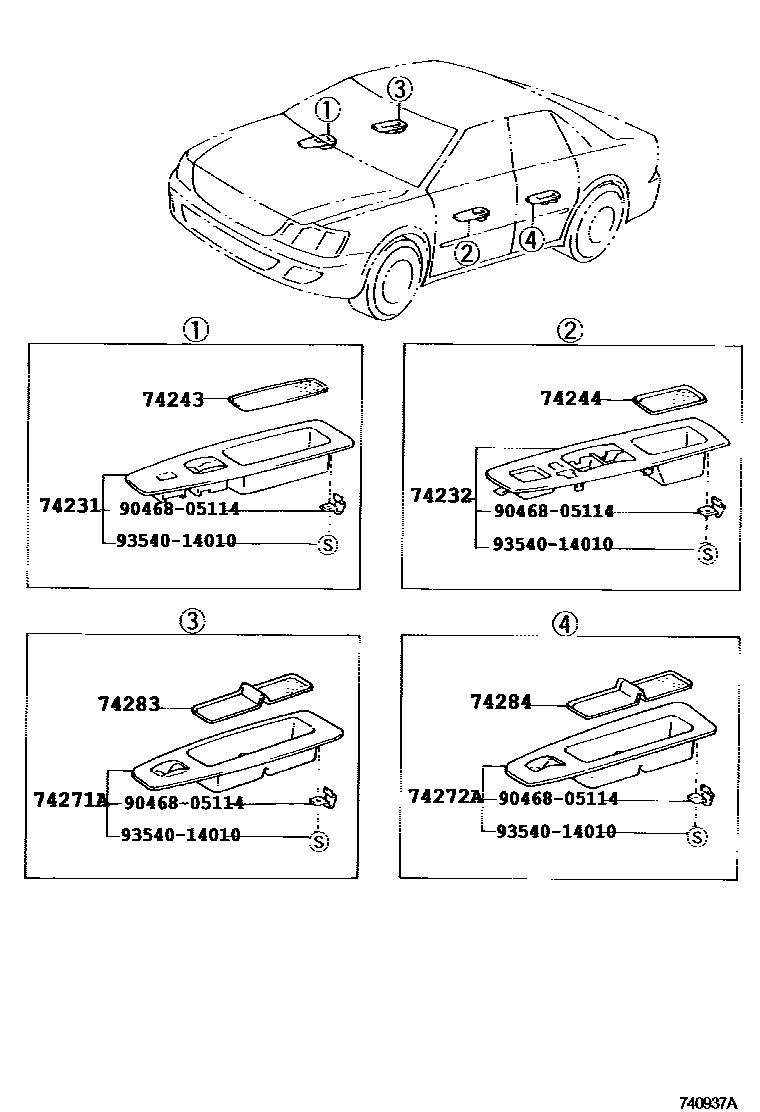

ARMREST & VISOR

0001 1ARMREST 0002 1ARMREST 0003 1VISOR

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-33240iACV3#,MCV30..LHD200108-200406

main74231-33250iACV3#,MCV30..RHD200109-200406

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-33190iACV3#,MCV30..LHD200108-200406

main74232-33200iACV3#,MCV30..RHD200406

74243COVER, FRONT DOOR ARMREST BASE, LOWER RH

main74243-33010iACV3#,MCV30..RHD200109-200406

main74244-33010iACV3#,MCV30..LHD200406-200601

74244COVER, FRONT DOOR ARMREST BASE, LOWER LH

main74243-33010iACV3#,MCV30..LHD200108-200406

main74244-33010iACV3#,MCV30..RHD200109-200406

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-33140iACV3#,MCV30200406

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-33140iACV3#,MCV30200108-200406

74283COVER, REAR DOOR ARMREST BASE, LOWER RH

main74283-33020iACV3#,MCV30200108-200406

74284COVER, REAR DOOR ARMREST BASE, LOWER LH

main74283-33020iACV3#,MCV30200108-200406

9046805114

main90468-05114

9354014010

main93540-14010

10 parts on this diagram · 3 diagrams in section
