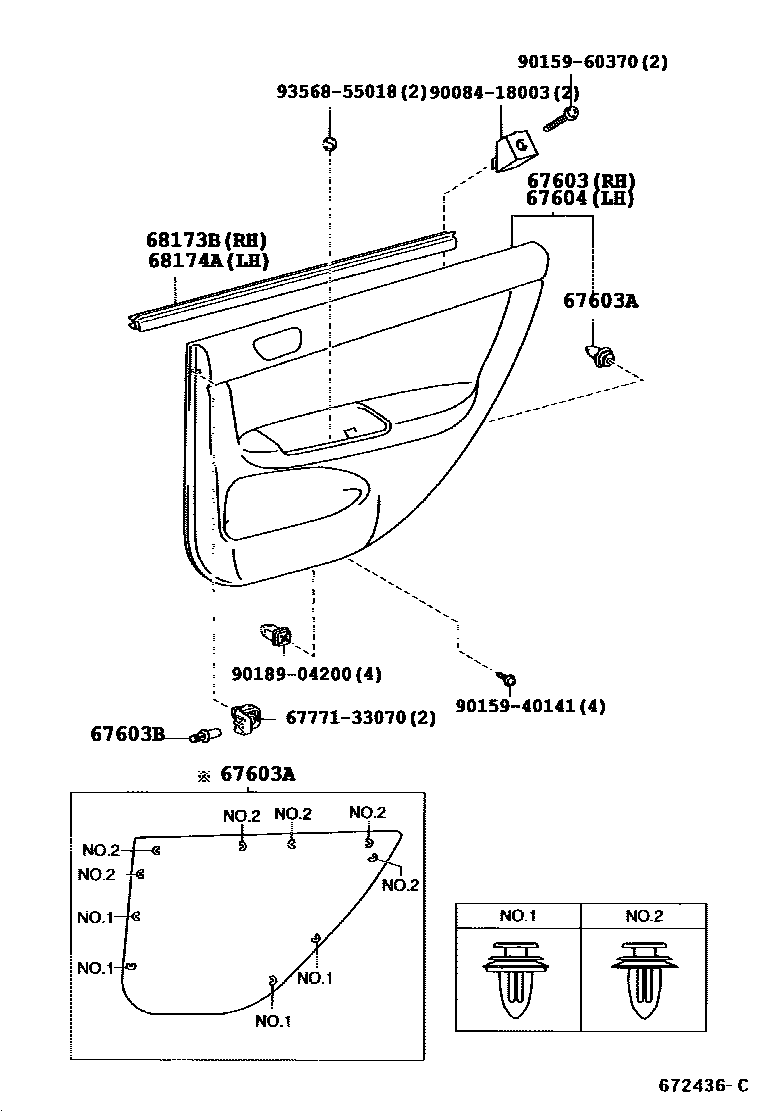

REAR DOOR PANEL & GLASS

0001 1 0002 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-33640-B0iACV3#,MCV30200108-200406

DK.GRAY,TRIM1#

main67630-33640-B0iACV3#,MCV30200406

DK.GRAY,TRIM9#

main67630-33640-E0iACV3#,MCV30200108-200406

SANDAL WOOD,TRIM4#

main67630-33650-B1iACV3#,MCV30200108-200406

LEATHER,DK.GRAY,TRIM1#

main67630-33650-B1iACV3#,MCV30200406

LEATHER,DK.GRAY,TRIM9#

main67630-33650-E0iACV3#,MCV30200108-200406

LEATHER,SANDAL WOOD,TRIM4#

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main90467-09206iACV3#,MCV30¥80200108-200406

NO.1

main90467-10161iACV3#,MCV30¥90200108-200406

NO.2

67603BCLIP(FOR REAR DOOR TRIM BOARD)

main90467-07066-E9iACV3#,MCV30200108-200406

SANDAL WOOD,TRIM4#

sub90467-07066¥120

main90467-07066-P6iACV3#,MCV30200108-200406

DK.GRAY,TRIM1#

sub90467-07066¥120

main90467-07066-P6iACV3#,MCV30200406

DK.GRAY,TRIM9#

sub90467-07066¥120

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-33640-B0iACV3#,MCV30200108-200406

DK.GRAY,TRIM1#

main67640-33640-B0iACV3#,MCV30200406

DK.GRAY,TRIM9#

main67640-33640-E0iACV3#,MCV30200108-200406

SANDAL WOOD,TRIM4#

main67640-33650-B1iACV3#,MCV30200108-200406

LEATHER,DK.GRAY,TRIM1#

main67640-33650-B1iACV3#,MCV30200406

LEATHER,DK.GRAY,TRIM9#

main67640-33650-E0iACV3#,MCV30200108-200406

LEATHER,SANDAL WOOD,TRIM4#

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-33040iACV3#,MCV30¥4,590200108-200307

sub68173-33041¥4,590

main68173-33041iACV3#,MCV30¥4,590200307-200406

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-33050iACV3#,MCV30¥4,590200108-200307

sub68174-33051¥4,590

main68174-33051iACV3#,MCV30¥4,590200307-200406

6777133070WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-33070¥250

9008418003

main90084-18003¥160

9015940141

main90159-40141¥120

9015960370

main90159-60370¥70

9018904200

main90189-04200¥80

9356855018

main93568-55018¥120

12 parts on this diagram · 2 diagrams in section
