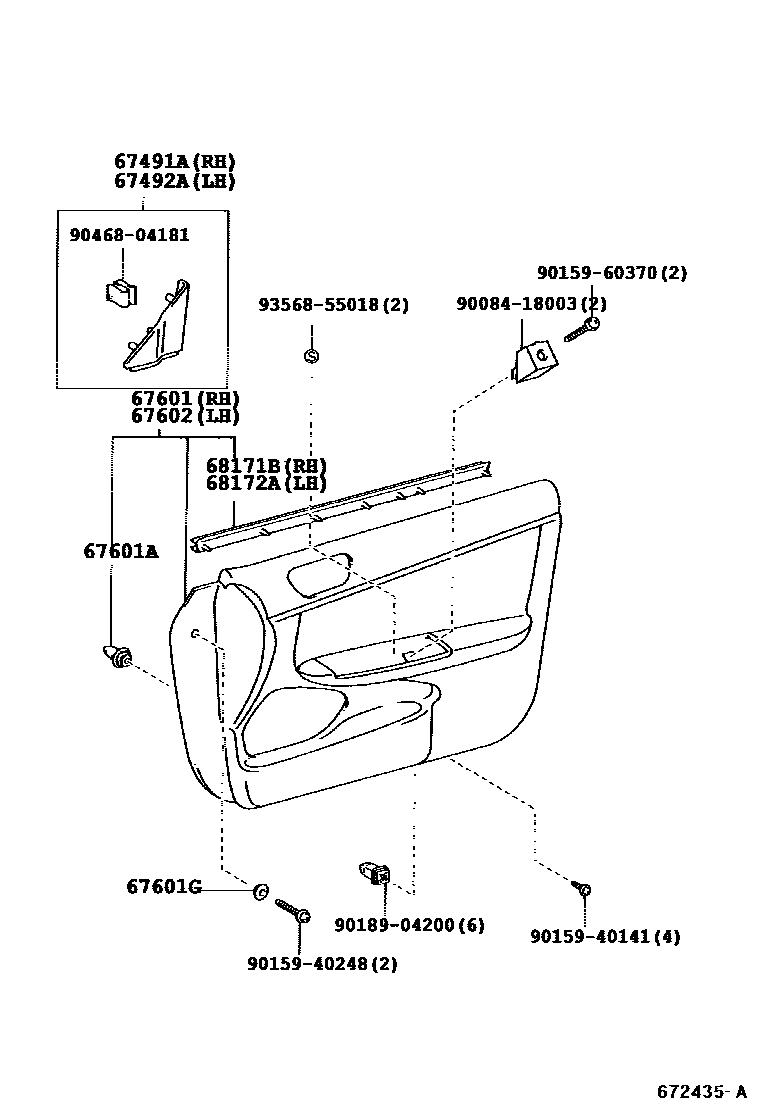

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-33090iACV3#,MCV30¥1,040200108-200406

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-33090iACV3#,MCV30¥1,040200108-200406

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-3T080-B0iACV3#,MCV30200108-200206

DK.GRAY,TRIM1#

sub67610-3T081¥43,200

main67610-3T080-E0iACV3#,MCV30200108-200206

SANDAL WOOD,TRIM4#

sub67610-3T081¥43,200

main67610-3T081-B0iACV3#,MCV30200206-200307

DK.GRAY,TRIM1#

sub67610-3T082¥43,200

main67610-3T081-E0iACV3#,MCV30200206-200307

SANDAL WOOD,TRIM4#

sub67610-3T082¥43,200

main67610-3T082-B0iACV3#,MCV30200307-200406

DK.GRAY,TRIM1#

sub67610-3T083¥43,200

main67610-3T082-B0iACV3#,MCV30200406-200411

DK.GRAY,TRIM9#

sub67610-3T083¥43,200

main67610-3T082-E0iACV3#,MCV30200307-200411

SANDAL WOOD,TRIM4#

sub67610-3T083¥43,200

main67610-3T083-B0iACV3#,MCV30200411

DK.GRAY,TRIM9#

main67610-3T083-E0iACV3#,MCV30200411

SANDAL WOOD,TRIM4#

main67610-3T090-B0iACV3#,MCV30200108-200206

LEATHER,DK.GRAY,TRIM1#

sub67610-3T091¥47,600

main67610-3T090-E0iACV3#,MCV30200108-200206

LEATHER,SANDAL WOOD,TRIM4#

sub67610-3T091¥47,600

main67610-3T091-B0iACV3#,MCV30200206-200307

LEATHER,DK.GRAY,TRIM1#

sub67610-3T092¥47,700

main67610-3T091-E0iACV3#,MCV30200206-200307

LEATHER,SANDAL WOOD,TRIM4#

sub67610-3T092¥47,700

main67610-3T092-B0iACV3#,MCV30200406-200411

LEATHER,DK.GRAY,TRIM9#

sub67610-3T093¥51,400

main67610-3T092-B0iACV3#,MCV30200307-200406

LEATHER,DK.GRAY,TRIM1#

sub67610-3T093¥51,400

main67610-3T092-E0iACV3#,MCV30200307-200411

LEATHER,SANDAL WOOD,TRIM4#

sub67610-3T093¥51,400

main67610-3T093-B0iACV3#,MCV30200411

LEATHER,DK.GRAY,TRIM9#

main67610-3T093-E0iACV3#,MCV30200411

LEATHER,SANDAL WOOD,TRIM4#

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main90467-10161iACV3#,MCV30¥90200108-200406

67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)

main90950-01746-B7iACV3#,MCV30200108-200406

DK.GRAY,TRIM1#

sub90950-01746¥110

main90950-01746-B7iACV3#,MCV30200406

DK.GRAY,TRIM9#

sub90950-01746¥110

main90950-01746-E5iACV3#,MCV30200108-200406

SANDAL WOOD,TRIM4#

sub90950-01746¥110

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-3T090-B0iACV3#,MCV30200108-200206

DK.GRAY,TRIM1#

sub67620-3T091¥43,200

main67620-3T090-E0iACV3#,MCV30200108-200206

SANDAL WOOD,TRIM4#

sub67620-3T091¥43,200

main67620-3T091-B0iACV3#,MCV30200206-200307

DK.GRAY,TRIM1#

sub67620-3T092¥43,200

main67620-3T091-E0iACV3#,MCV30200206-200307

SANDAL WOOD,TRIM4#

sub67620-3T092¥43,200

main67620-3T092-B0iACV3#,MCV30200307-200406

DK.GRAY,TRIM1#

sub67620-3T093¥43,200

main67620-3T092-B0iACV3#,MCV30200406-200411

DK.GRAY,TRIM9#

sub67620-3T093¥43,200

main67620-3T092-E0iACV3#,MCV30200307-200411

SANDAL WOOD,TRIM4#

sub67620-3T093¥43,200

main67620-3T093-B0iACV3#,MCV30200411

DK.GRAY,TRIM9#

main67620-3T093-E0iACV3#,MCV30200411

SANDAL WOOD,TRIM4#

main67620-3T100-B0iACV3#,MCV30200108-200206

LEATHER,DK.GRAY,TRIM1#

sub67620-3T101¥47,600

main67620-3T100-E0iACV3#,MCV30200108-200206

LEATHER,SANDAL WOOD,TRIM4#

sub67620-3T101¥47,600

main67620-3T101-B0iACV3#,MCV30200206-200307

LEATHER,DK.GRAY,TRIM1#

sub67620-3T102¥47,700

main67620-3T101-E0iACV3#,MCV30200206-200307

LEATHER,SANDAL WOOD,TRIM4#

sub67620-3T102¥47,700

main67620-3T102-B0iACV3#,MCV30200406-200411

LEATHER,DK.GRAY,TRIM9#

sub67620-3T103¥51,400

main67620-3T102-B0iACV3#,MCV30200307-200406

LEATHER,DK.GRAY,TRIM1#

sub67620-3T103¥51,400

main67620-3T102-E0iACV3#,MCV30200307-200411

LEATHER,SANDAL WOOD,TRIM4#

sub67620-3T103¥51,400

main67620-3T103-B0iACV3#,MCV30200411

LEATHER,DK.GRAY,TRIM9#

main67620-3T103-E0iACV3#,MCV30200411

LEATHER,SANDAL WOOD,TRIM4#

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-33040iACV3#,MCV30¥3,100200108-200208

main68171-33041iACV3#,MCV30¥3,090200208-200307

sub68171-33042¥3,090

main68171-33042iACV3#,MCV30¥3,090200307-200406

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-33040iACV3#,MCV30¥3,100200108-200208

main68172-33041iACV3#,MCV30¥3,090200208-200307

sub68172-33042¥3,090

main68172-33042iACV3#,MCV30¥3,090200307-200406

9008418003

main90084-18003¥160

9015940141

main90159-40141¥120

9015940248

main90159-40248¥120

9015960370

main90159-60370¥70

9018904200

main90189-04200¥80

9046804181

main90468-04181¥80

9356855018

main93568-55018¥120

15 parts on this diagram · 2 diagrams in section
