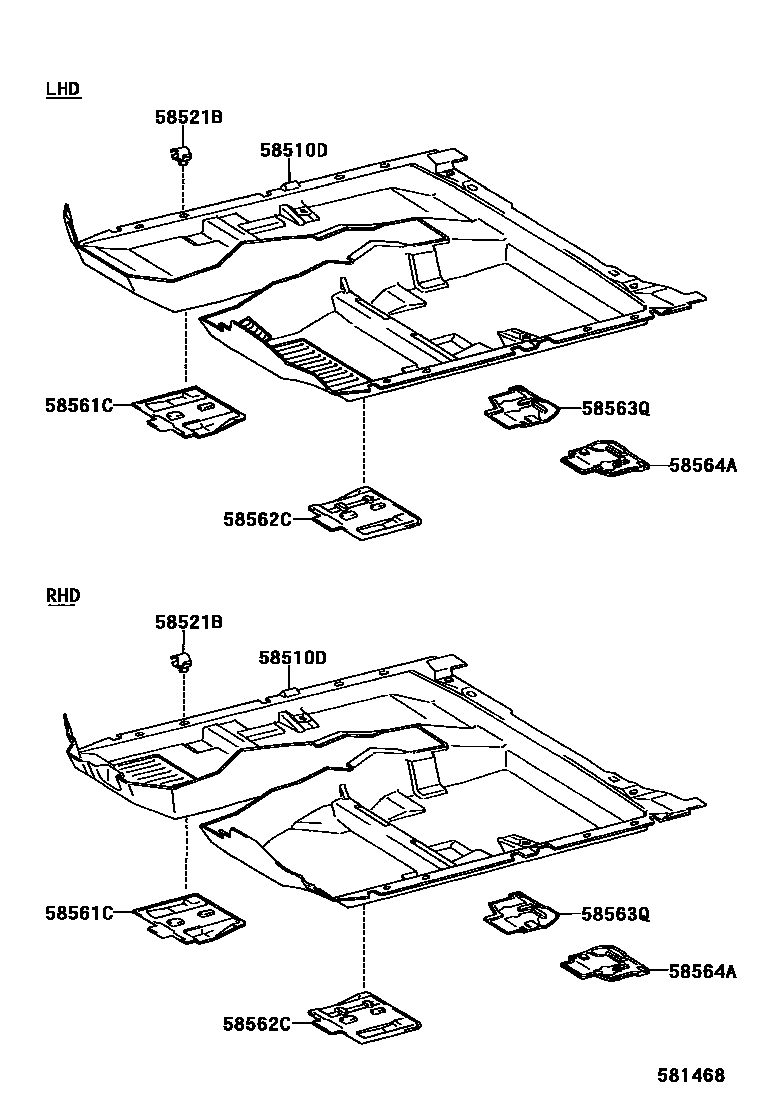

MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-33420-B1iACV3#,MCV30..LHD200406

DK. GRAY FLOOR CARPE,TRIM9#

main58510-33420-E0iACV3#,MCV30..LHD200406

FAWN FLOOR CARPET,TRIM4#

main58510-33430-B0iACV30,MCV30..LHD..ATM200108-200406

W(KICK DOWN SWITCH),DK. GRAY FLOOR CARPE,TRIM1#

main58510-33430-E0iACV30,MCV30..LHD..ATM200406

W(KICK DOWN SWITCH),FAWN FLOOR CARPET,TRIM4#

main58510-33450-B0iACV3#,MCV30..RHD200109-200406

DK. GRAY FLOOR CARPE,TRIM1#

main58510-33450-E0iACV3#,MCV30..RHD200406

FAWN FLOOR CARPET,TRIM4#

58521BHOOK, FLOOR CARPET

main58521-33040×6iACV3#,MCV30200108-200406

58561CSILENCER, FRONT FLOOR, NO.1

main58561-33020iACV3#,MCV30200108-200406

58562CSILENCER, FRONT FLOOR, NO.2

main58562-33020iACV3#,MCV30200108-200206

main58562-33021iACV3#,MCV30200206-200406

58563QSILENCER, FRONT FLOOR, NO.3

main58563-33020iACV3#,MCV30200108-200406

58564ASILENCER, FRONT FLOOR, NO.4

main58564-33020iACV3#,MCV30200108-200406

6 parts on this diagram · 1 diagram in section
