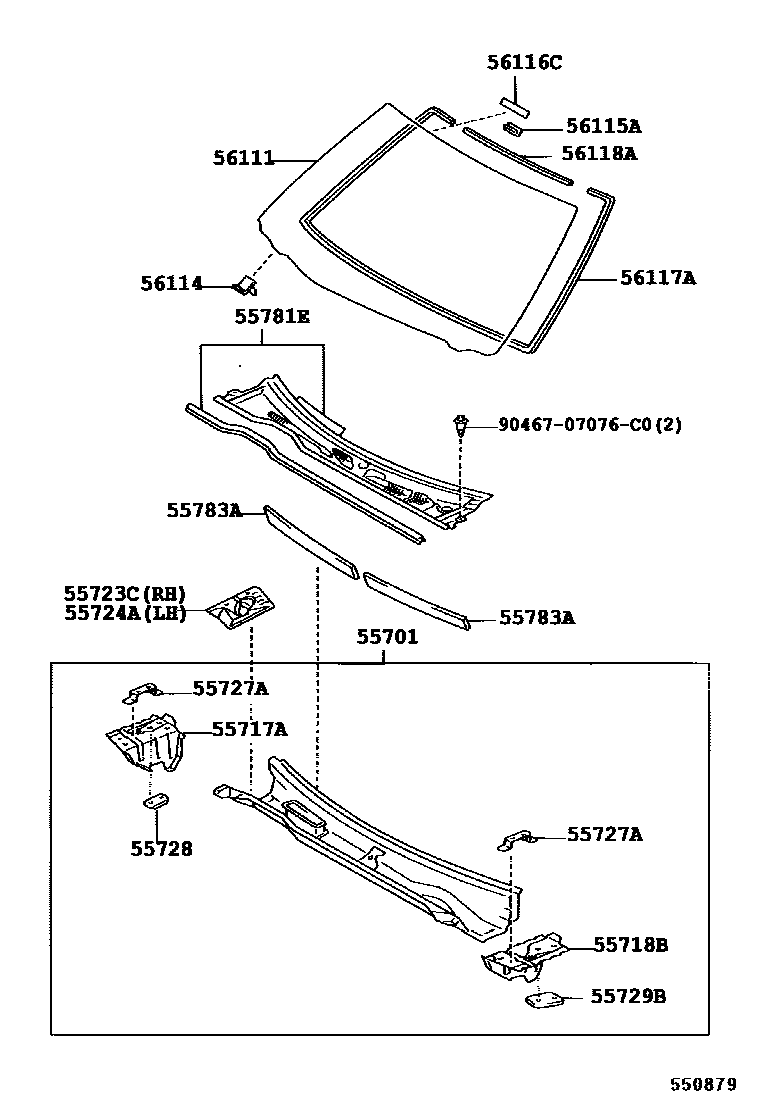

COWL PANEL & WINDSHIELD GLASS

55701PANEL SUB-ASSY, COWL

main55700-33200iACV3#,MCV30..LHD200108-200406

main55700-33240iACV3#,MCV30..RHD200109-200406

55717APANEL, COWL TOP SIDE, INNER RH

main55717-33030iACV3#,MCV30200108-200203

main55717-33031iACV3#,MCV30200203-200406

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-33030iACV3#,MCV30200108-200406

55723CREINFORCEMENT, COWL TOP SIDE, RH

main55723-33030iACV3#,MCV30200108-200406

55724AREINFORCEMENT, COWL TOP SIDE, LH

main55724-33030iACV3#,MCV30200108-200406

55727ARETAINER, FRONT PANEL UPPER REINFORCEMENT

main55727-33030×2iACV3#,MCV30200108-200406

55728REINFORCEMENT, HOOD STOPPER, RH

main55728-33020iACV3#,MCV30200108-200406

55729BREINFORCEMENT, HOOD STOPPER, LH

main55729-33020iACV3#,MCV30200108-200406

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-33030iACV3#,MCV30..LHD200406

main55708-33040iACV3#,MCV30..RHD200109-200406

55783APAD, COWL TOP SILENCER

main55783-33040×2iACV3#,MCV30200108-200406

56111GLASS, WINDSHIELD

main56101-33300iACV3#,MCV30..LHD200303-200406

*LAM,T=4.7,GREEN

main56101-33420iACV3#,MCV30..LHD200108-200303

*LAM,T=4.7,GREEN

main56101-33430iACV3#,MCV30..RHD200109-200406

*LAM,T=4.7,GREEN

56114RETAINER, WINDSHIELD GLASS

main56114-22050×2iACV3#,MCV30200406

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iACV3#,MCV30200406

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iACV3#,MCV30200108-200406

56117ADAM, WINDOW GLASS ADHESIVE

main56117-33060iACV3#,MCV30200406

L=3454

main56117-64010iACV3#,MCV30200211-200406

*D,L=3454

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56117-52040iACV3#,MCV30200211-200406

*D,L=685

sub56117-74010

main56118-33050iACV3#,MCV30200108-200406

L=685

9046707076C0

main90467-07076C0

17 parts on this diagram · 1 diagram in section
