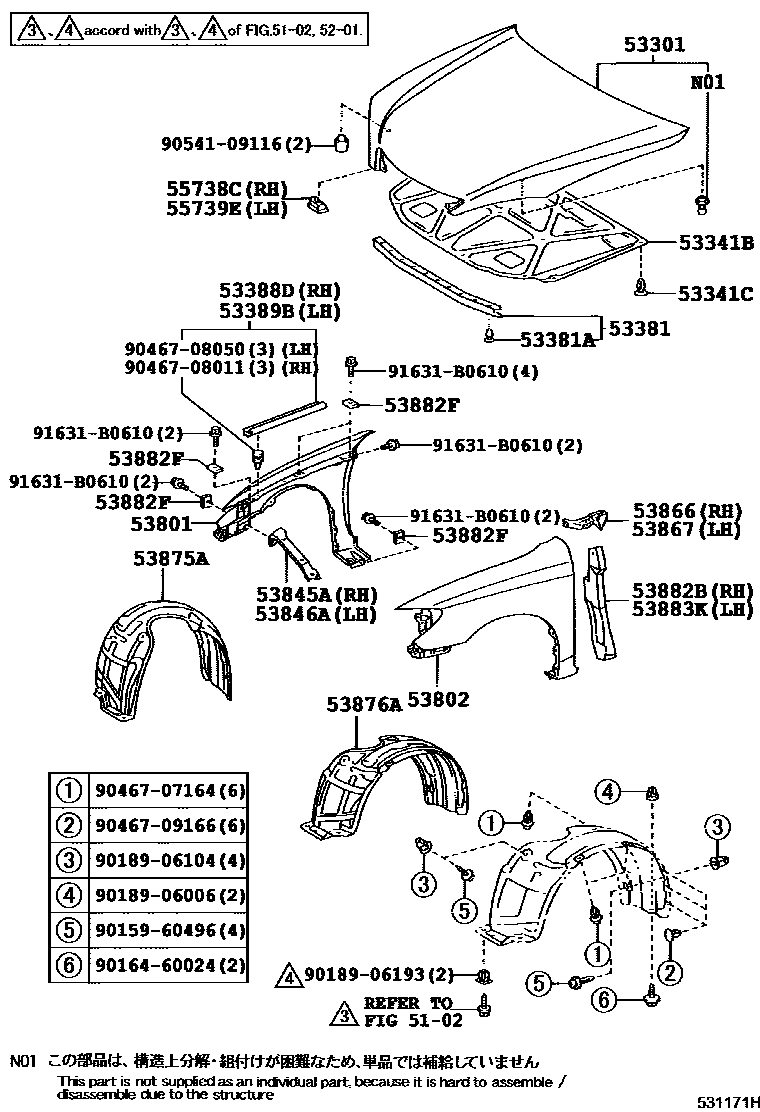

HOOD & FRONT FENDER
5102
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53845ABRACE, FRONT WHEEL OPENING APRON, RH
53846ABRACE, FRONT WHEEL OPENING APRON, LH
53866SEAL, FRONT FENDER TO COWL SIDE, RH
53867SEAL, FRONT FENDER TO COWL SIDE, LH
53882BSEAL, FRONT FENDER, RH
53882FSEAL, FRONT FENDER
53883KSEAL, FRONT FENDER, LH
55738CSTOPPER, HOOD, RH
55739ESTOPPER, HOOD, LH
9015960496
main90159-60496
9016460024
main90164-60024
9018906006
main90189-06006
9018906104
main90189-06104
9018906193
main90189-06193
9046707164
main90467-07164
9046708011
main90467-08011
9046708050
main90467-08050
9046709166
main90467-09166
9054109116
main90541-09116
91631B0610
main91631-B0610
32 parts on this diagram · 2 diagrams in section
