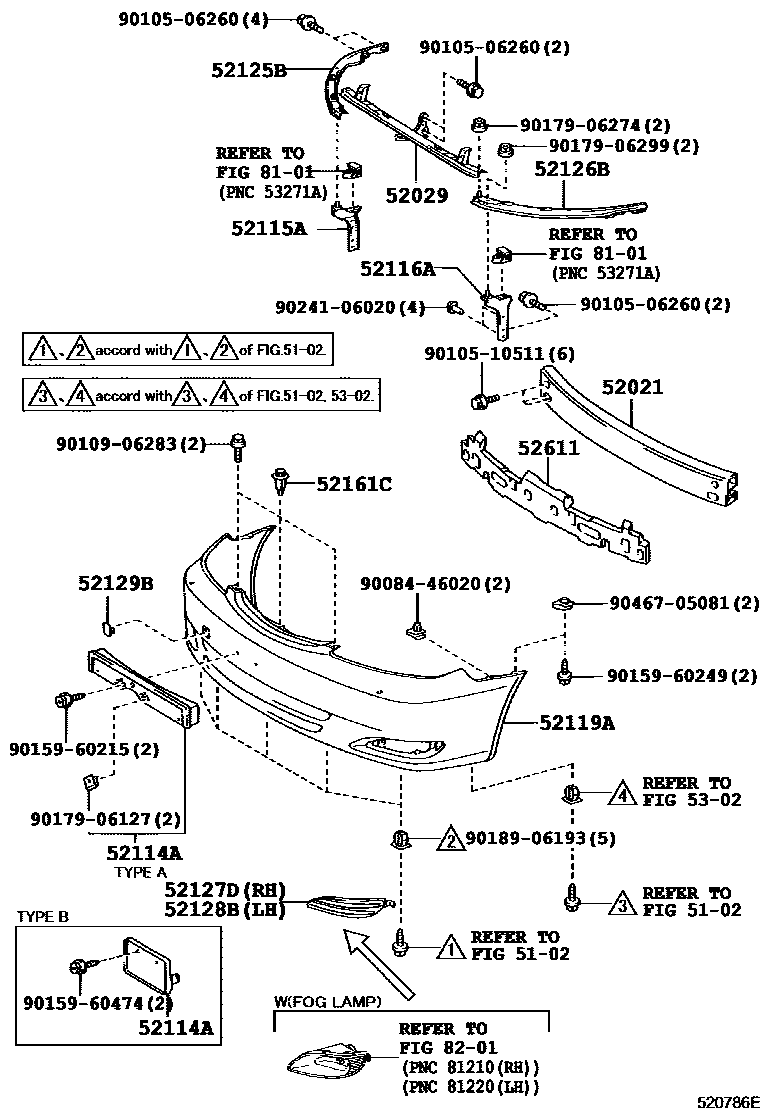

FRONT BUMPER & BUMPER STAY
5102
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
PAINT REQ.,PNC 52114A = TYPE B:REFER TO ILLUSTRATION
PAINT REQ.,PNC 52114A = TYPE A:REFER TO ILLUSTRATION
PAINT REQ.,W(HEAD LAMP CLEANER) & PNC 52114A = TYPE A:REFER TO ILLUSTRATION
PAINT REQ.
PAINT REQ.,W(HEADLAMP CLEANER)
52125BEXTENSION, FRONT BUMPER REINFORCEMENT, RH
52126BEXTENSION, FRONT BUMPER REINFORCEMENT, LH
52127DCOVER, FRONT BUMPER HOLE, RH
52128BCOVER, FRONT BUMPER HOLE, LH
52129BCOVER, FRONT BUMPER, LOWER
52161CPIECE, FRONT BUMPER
sub52161-0K040
52611ABSORBER, FRONT BUMPER ENERGY
5302
8101
8201
9008446020
main90084-46020
9010506260
main90105-06260
9010510511
main90105-10511
9010906283
main90109-06283
9015960215
main90159-60215
9015960249
main90159-60249
9015960474
main90159-60474
9017906127
main90179-06127
9017906274
main90179-06274
9017906299
main90179-06299
9018906193
main90189-06193
9024106020
main90241-06020
9046705081
main90467-05081
30 parts on this diagram · 2 diagrams in section
