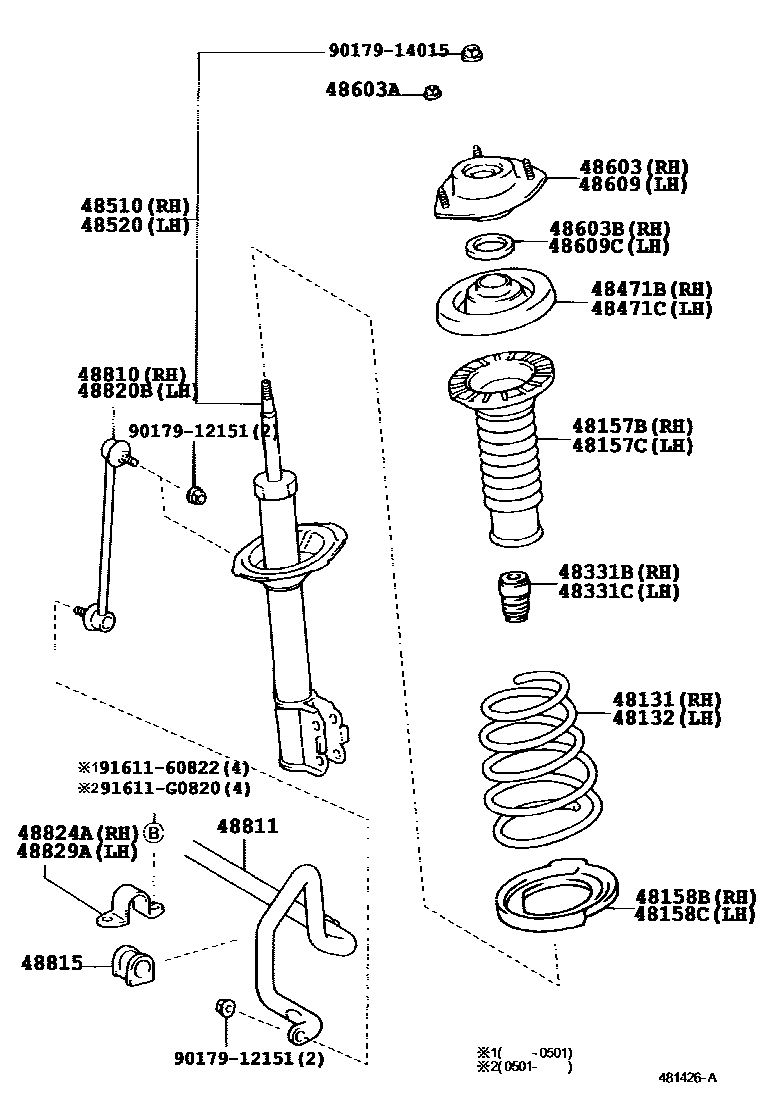

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
CHILE SPEC,OD=13.5
CHILE SPEC
BRAZIL OR CHILE OR HONG KONG OR SINGAPORE SPEC,OD=13.7
BRAZIL OR CHILE OR HONG KONG SPEC
OD=13.6
ARGENTINA OR ISRAEL SPEC
OD=13.9
OD=13.7
OD=13.7
OD=13.9
OD=14
ARGENTINA OR BRAZIL OR CHILE OR HONG KONG OR ISRAEL OR TURKEY SPEC,OD=13.9
OD=14.1
OD=13.9
sub48131-3T313
GENERAL OR VENEZUELA SPEC,OD=14.2
48132SPRING, FRONT COIL, LH
CHILE SPEC,OD=13.5
CHILE SPEC,OD=13.5
BRAZIL OR CHILE OR HONG KONG OR SINGAPORE SPEC,OD=13.7
BRAZIL OR CHILE OR HONG KONG SPEC
OD=13.6
OD=13.7
OD=13.9
OD=13.7
OD=13.7
OD=13.9
OD=14
ARGENTINA OR BRAZIL OR CHILE OR HONG KONG OR ISRAEL OR TURKEY SPEC
OD=14.1
OD=13.9
sub48131-3T313
GENERAL OR VENEZUELA SPEC,OD=14.2
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48471BSEAT, FRONT COIL SPRING, UPPER RH
48471CSEAT, FRONT COIL SPRING, UPPER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-33440,BRAZIL OR CHILE OR GENERAL OR HONG KONG OR SINGAPORE OR VENEZUELASPEC
sub48510-80149
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-33440,BRAZIL OR CHILE OR GENERAL OR HONG KONG OR SINGAPORE OR VENEZUELASPEC
sub48520-39715
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48603BBEARING(FOR FRONT SUSPENSION SUPPORT RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609CBEARING(FOR FRONT SUSPENSION SUPPORT LH)
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
OD=23
OD=24
48815BUSH, FRONT STABILIZER BAR, NO.1
FRONT STABILIZER BAR OD=23
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9017912151
main90179-12151
9017914015
main90179-14015
9161160822
main91611-60822
91611G0820
main91611-G0820
27 parts on this diagram · 1 diagram in section
