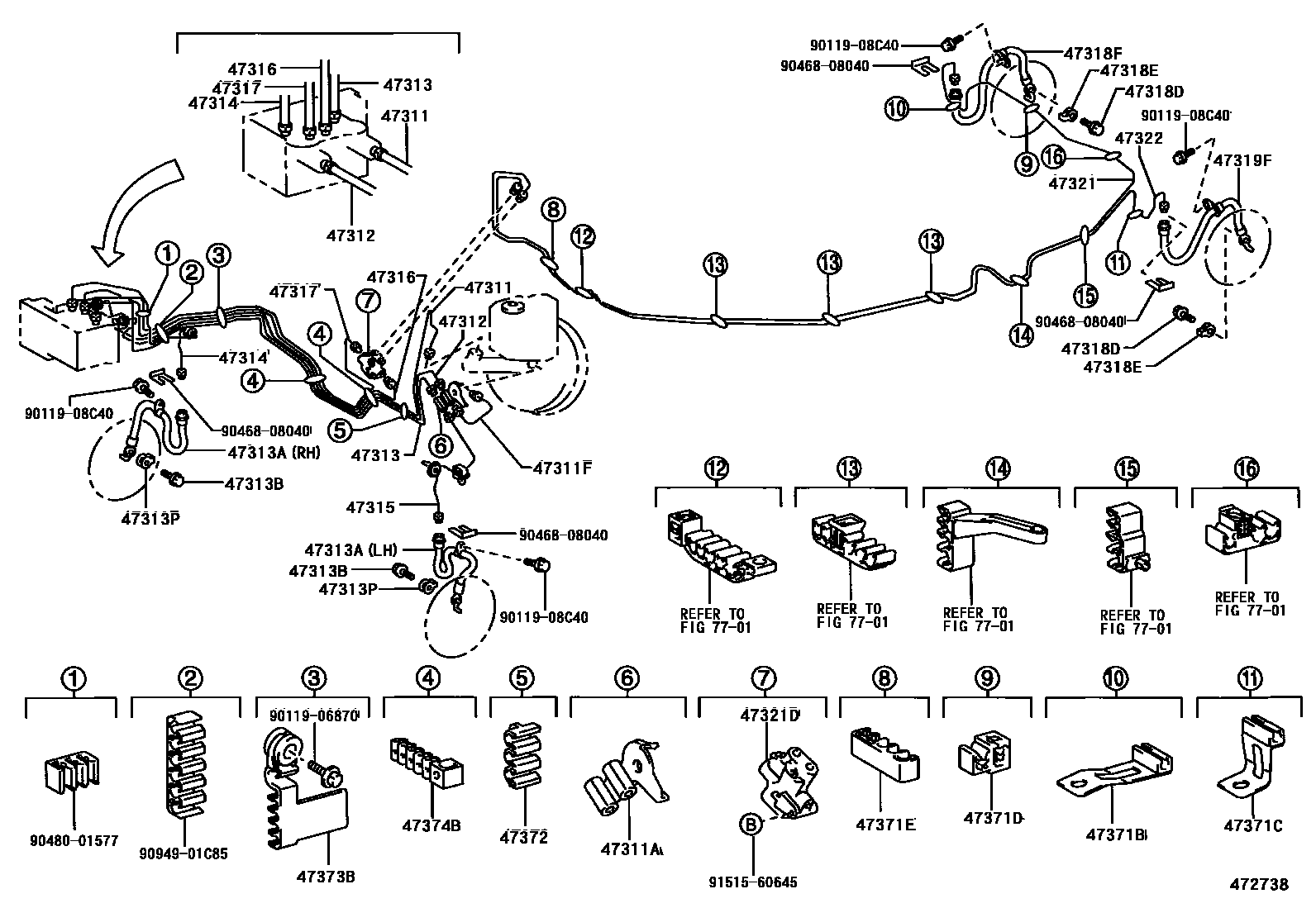

BRAKE TUBE & CLAMP

0001 1 0002 1W(VSC) 0003 1 0004 1W(VSC) 0005 1 0006 1W(VSC) 0007 1W(VSC)

47311TUBE, FRONT BRAKE, NO.1

main47311-33070iMCV30..RHD200109-200406

main47311-33080iACV3#..RHD200109-200406

main47311-33090iMCV30..LHD200108-200406

main47311-33100iACV3#..LHD200108-200406

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-10238iACV3#,MCV30..LHD200108-200406

47311FTUBE, FRONT BRAKE, FRAME NO.1

main47311-33140iACV3#,MCV30..LHD200108-200406

47312TUBE, FRONT BRAKE, NO.2

main47312-33090iMCV30..RHD200109-200406

main47312-33100iACV3#..RHD200109-200406

main47312-33110iMCV30..LHD200108-200406

main47312-33120iACV3#..LHD200108-200406

47313TUBE, FRONT BRAKE, NO.3

main47313-33090iMCV30..RHD200109-200406

main47313-33100iACV3#..RHD200109-200406

main47313-33110iMCV30..LHD200108-200406

main47313-33120iACV3#..LHD200108-200406

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02C89iACV3#,MCV30200108-200406

RH

main90947-02C90iACV3#,MCV30200108-200406

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iACV3#,MCV30200108-200406

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iACV3#,MCV30200108-200406

47314TUBE, FRONT BRAKE, NO.4

main47314-33060iMCV30200108-200406

main47314-33070iACV3#200108-200406

47315TUBE, FRONT BRAKE, NO.5

main47315-33170iACV3#,MCV30..RHD200109-200406

main47315-33180iACV3#,MCV30..LHD200108-200406

47316TUBE, FRONT BRAKE, NO.6

main47316-33190iMCV30..RHD200109-200406

main47316-33200iACV3#..RHD200109-200406

main47316-33210iMCV30..LHD200108-200406

main47316-33220iACV3#..LHD200108-200406

47317TUBE, FRONT BRAKE, NO.7

main47317-33180iMCV30..RHD200109-200406

main47317-33190iACV3#..RHD200109-200406

main47317-33200iMCV30..LHD200108-200406

main47317-33210iACV3#..LHD200108-200406

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iACV3#,MCV30200108-200406

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020iACV3#,MCV30200108-200406

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02C93iACV3#,MCV30200108-200406

sub90947-02F60

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02C94iACV3#,MCV30200108-200406

sub90947-02F61

47321TUBE, REAR BRAKE, NO.1

main47321-33130iACV3#,MCV30200108-200406

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10140iACV3#,MCV30200108-200406

47322TUBE, REAR BRAKE, NO.2

main47322-33100iACV3#,MCV30200108-200406

47371BCLAMP, BRAKE TUBE, NO.6

main47371-32130iACV3#,MCV30200108-200406

47371CCLAMP, BRAKE TUBE, NO.7

main47371-32140iACV3#,MCV30200108-200406

47371DCLAMP, BRAKE TUBE, NO.8

main90949-01B45iACV3#,MCV30200108-200406

47371ECLAMP, BRAKE TUBE, NO.9

main90949-01C53iACV3#,MCV30200108-200406

47372CLAMP, BRAKE TUBE, NO.2

main90464-00778iACV3#,MCV30..LHD200108-200406

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01C55iACV3#,MCV30200108-200406

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01C56iACV3#,MCV30200108-200406

7701

9011906870

main90119-06870

9011908C40

main90119-08C40

9046808040

main90468-08040

9048001577

main90480-01577

9094901C85

main90949-01C85

9151560645

main91515-60645

33 parts on this diagram · 7 diagrams in section
