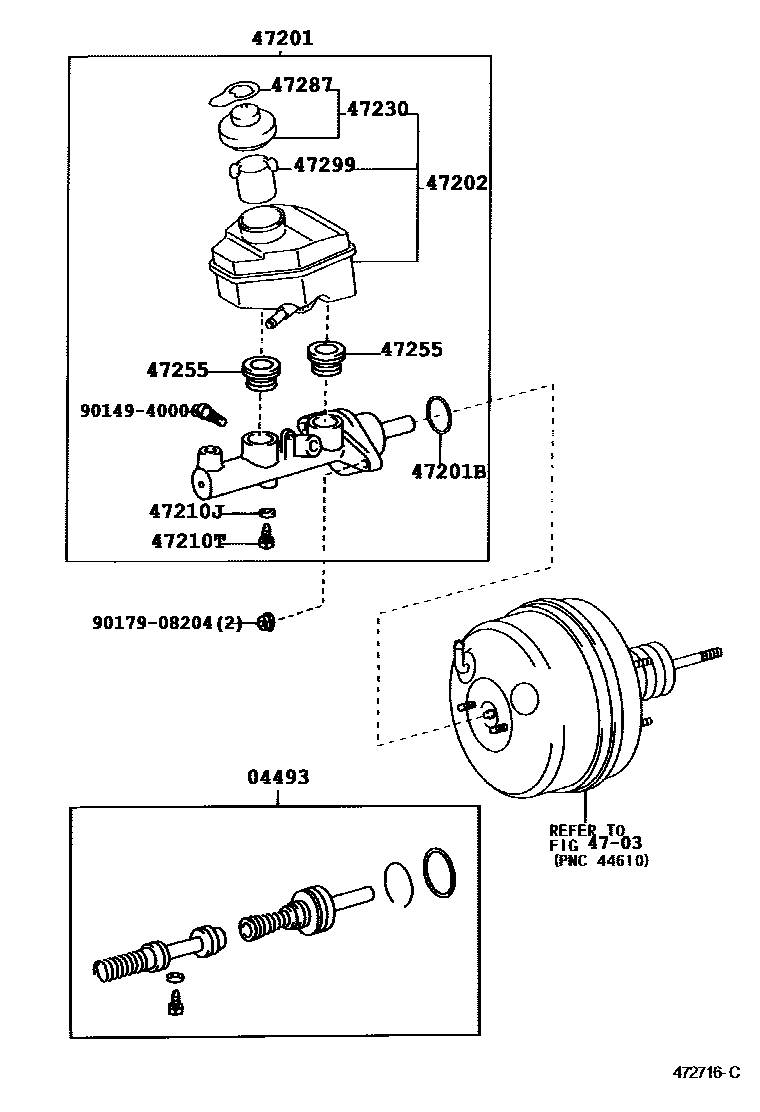

BRAKE MASTER CYLINDER

0001 1 0002 1W(VSC)

04493CYLINDER KIT, BRAKE MASTER

main04493-33110iACV3#200108-200406

main04493-33120iMCV30200108-200406

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-33360iACV3#..LHD..ATM200108-200406

main47201-33370iACV3#..RHD..ATM200109-200406

main47201-33380iACV30..LHD..MTM200108-200406

main47201-33390iACV30..RHD..MTM200109-200406

main47201-33410iMCV30..LHD200108-200406

main47201-33420iMCV30..RHD200109-200406

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iACV31..RHD;ACV30,MCV30200108-200410

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-33150iACV3#..LHD..ATM200108-200301

sub47220-33151

main47220-33151iACV3#..LHD..ATM200301-200406

main47220-33160iACV3#..RHD..ATM200109-200406

main47220-33170iACV30..LHD..MTM200108-200406

main47220-33180iACV30..RHD..MTM200109-200406

main47220-33200iMCV30..LHD200108-200406

main47220-33210iMCV30..RHD200109-200406

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iACV30;ACV31..RHD200112-200410

main90430-06104iACV3#200108-200112

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iACV3#200108-200410

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iACV3#,MCV30200108-200410

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iACV3#,MCV30200108-200410

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iACV3#,MCV30200108-200410

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iACV3#,MCV30200108-200410

9014940006

main90149-40006

9017908204

main90179-08204
