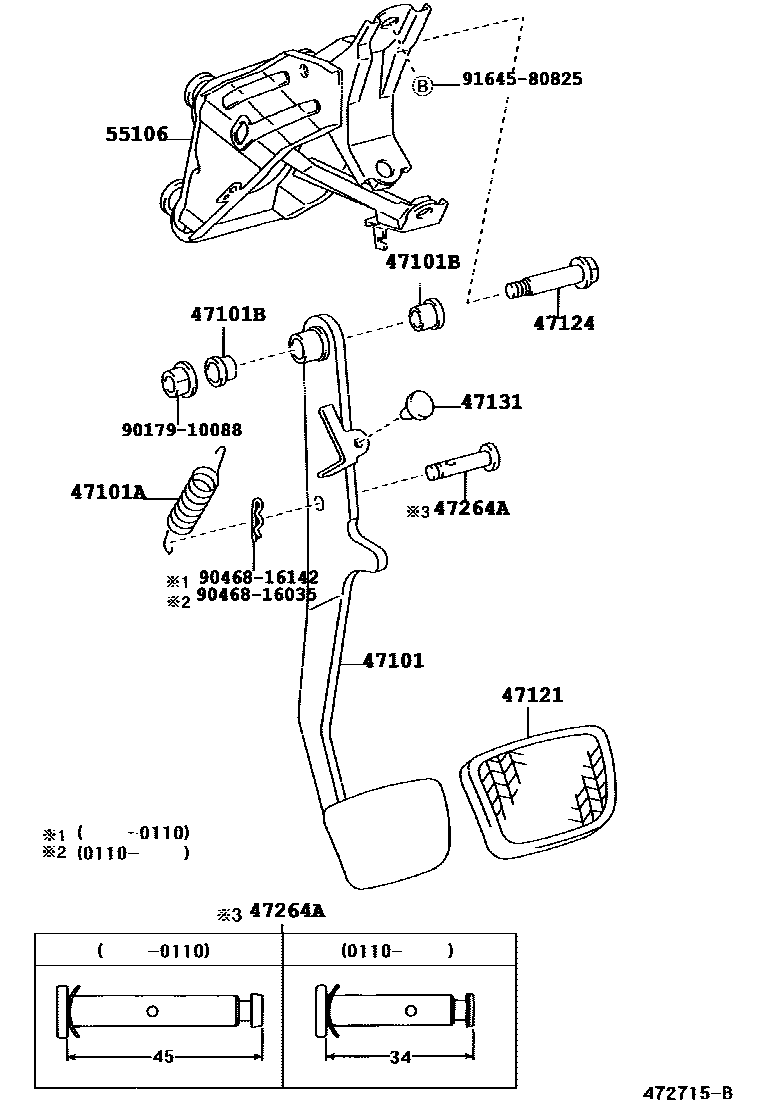

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-33060iACV30..LHD..MTM¥2,790200108-200406

main47101-33070iACV3#,MCV30..LHD..ATM¥2,980200108-200406

main47101-33080iACV30..RHD..MTM¥2,380200109-200406

main47101-33090iACV3#,MCV30..RHD..ATM¥2,570200109-200406

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14051iACV3#,MCV30¥140200108-200406

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iACV3#,MCV30¥120200108-200406

47121PAD, BRAKE PEDAL

main31321-52010iACV30..MTM¥200200108-200406

main47121-50020iACV3#,MCV30..ATM¥510200108-200406

47124SHAFT, BRAKE PEDAL

main90109-10167iACV3#,MCV30¥190200108-200406

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iACV3#,MCV30¥110200108-200406

47264APIN(FOR PUSH ROD)

main47148-33011iACV3#,MCV30¥220200110-200406

main47148-33020iACV3#,MCV30¥390200108-200110

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-33080iACV3#,MCV30..LHD¥3,370200108-200601

main55106-33090iACV3#,MCV30..RHD¥4,000200109-200601

9017910088

main90179-10088¥100

9046816035

main90468-16035¥140

9046816142

main90468-16142¥70

9164580825

main91645-80825¥100

12 parts on this diagram · 1 diagram in section
