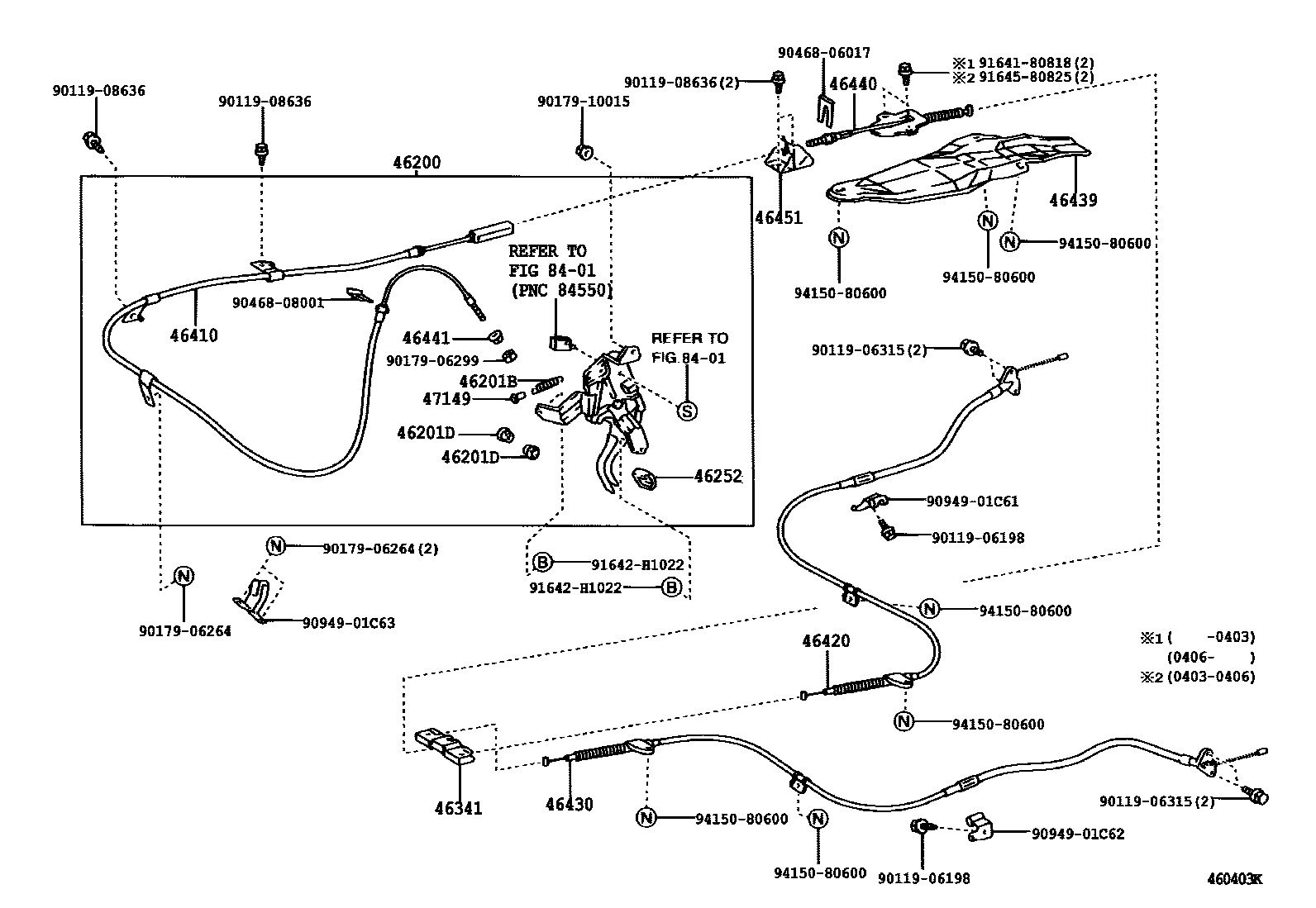

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-33050iACV3#,MCV30..LHD..ATM200108-200406

main46200-33070iACV3#,MCV30..RHD..ATM200109-200406

46201BSPRING, TENSION

main90506-19005iACV3#,MCV30..ATM200108-200406

46201DBUSH(FOR PARKING BRAKE PEDAL)

main90386-16022iACV3#,MCV30..ATM200108-200406

46252PAD, PARKING PEDAL

main46252-63010iACV3#,MCV30..ATM200108-200406

46341EQUALIZER, PARKING BRAKE

main46341-20070iACV3#,MCV30200108-200406

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-33120iACV3#,MCV30..LHD..ATM200108-200406

main46410-33130iACV30..MTM200108-200406

main46410-33140iACV3#,MCV30..RHD..ATM200109-200406

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-33100iACV3#,MCV30200108-200406

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-33100iACV3#,MCV30200108-200406

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-33020iACV3#,MCV30200108-200406

46440CABLE ASSY, PARKING BRAKE, NO.4

main46440-33030iACV3#,MCV30..ATM200108-200406

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iACV3#,MCV30..ATM200108-200406

46451BRACKET, CABLE SUPPORT

main46451-33040iACV3#,MCV30..ATM200108-200406

47149DAMPER, RETURN SPRING

main47149-22010iACV3#,MCV30..ATM200108-200406

8401

9011906198

main90119-06198

9011906315

main90119-06315

9011908636

main90119-08636

9017906264

main90179-06264

9017906299

main90179-06299

9017910015

main90179-10015

9046806017

main90468-06017

9046808001

main90468-08001

9094901C61

main90949-01C61

9094901C62

main90949-01C62

9094901C63

main90949-01C63

9164180818

main91641-80818

91642H1022

main91642-H1022

9164580825

main91645-80825

9415080600

main94150-80600

29 parts on this diagram · 4 diagrams in section
