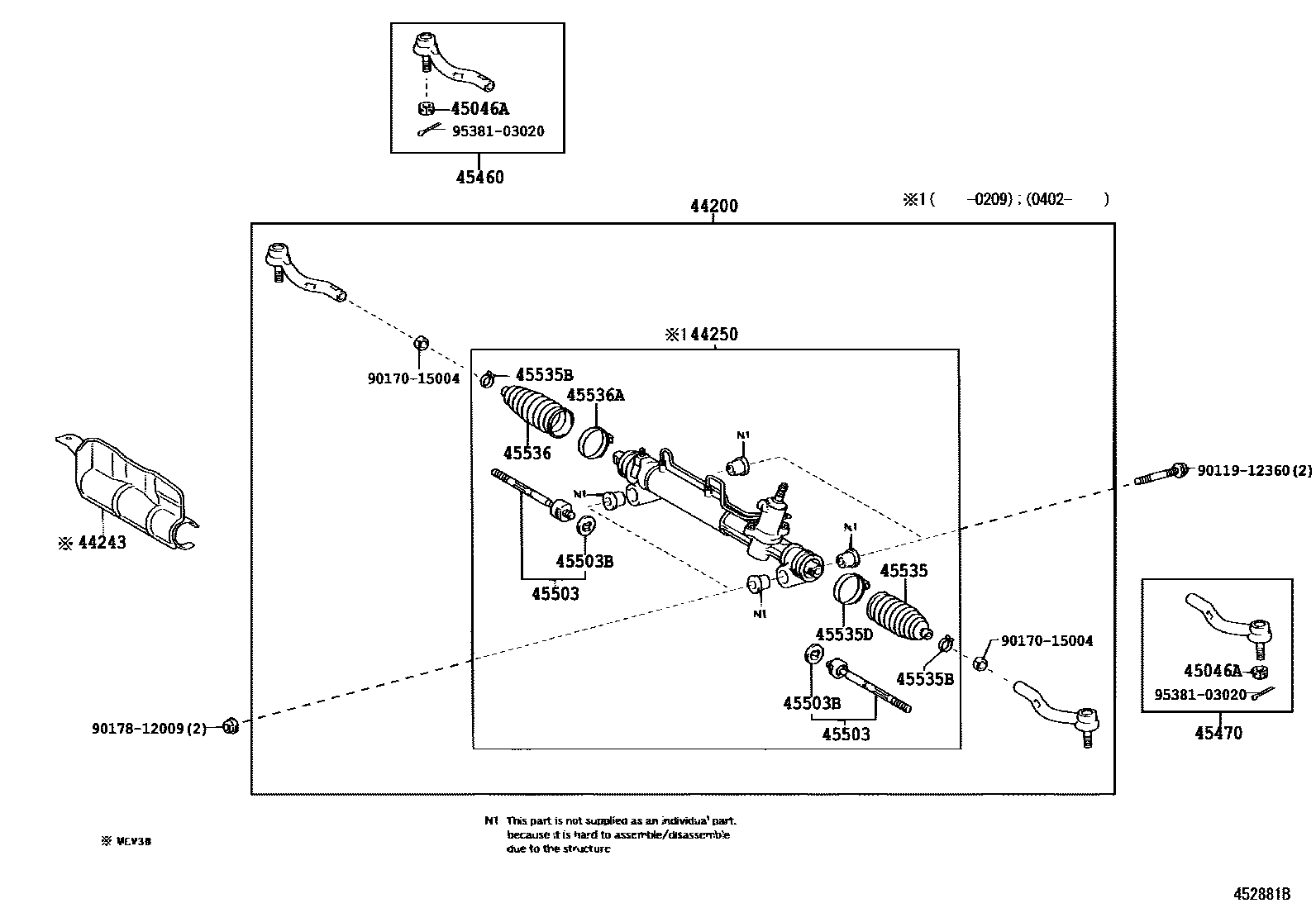

FRONT STEERING GEAR & LINK
44200LINK ASSY, POWER STEERING
44243INSULATOR, POWER STEERING RACK HOUSING HEAT
44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)
45046ANUT, CASTLE(FOR TIE ROD END)
45460ROD ASSY, TIE, RH
45470ROD ASSY, TIE, LH
45503END SUB-ASSY, STEERING RACK
45503BWASHER, CLAW(FOR STEERING RACK END)
OD=35.2
45535BOOT, STEERING RACK, NO.1
(L)
(J)
45535BCLIP(FOR STEERING RACK BOOT)
(L)
(J)
45535DCLAMP(FOR STEERING RACK BOOT NO.1)
(L)
(J)
45536BOOT, STEERING RACK, NO.2
(L)
(J)
45536ACLAMP(FOR STEERING RACK BOOT NO.2)
(L)
(J)
9011912360
main90119-12360
9017015004
main90170-15004
9017812009
main90178-12009
9538103020
main95381-03020
17 parts on this diagram · 4 diagrams in section
