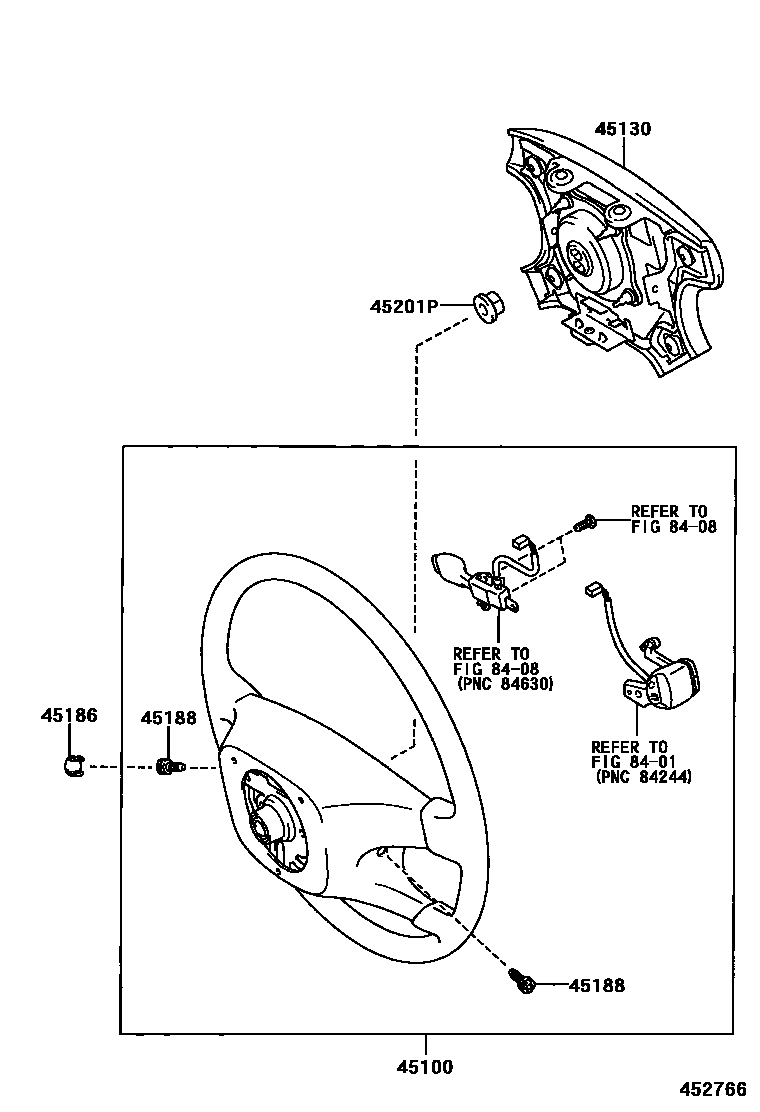

STEERING WHEEL
45100WHEEL ASSY, STEERING
4-SPOKE,LEATHER,W(CRUISE CONTROL),DK.GRAY,TRIM1#
4-SPOKE,LEATHER,W(CRUISE CONTROL),SANDAL WOOD,TRIM4#
4-SPOKE,LEATHER,DK.GRAY,TRIM1#
4-SPOKE,LEATHER,SANDAL WOOD,TRIM4#
4-SPOKE,WOOD&LEATHER,W(CRUISE CONTR0L),DK.GRAY,TRIM1#
sub45100-33490
4-SPOKE,WOOD&LEATHER,W(CRUISE CONTR0L),SANDAL WOOD,TRIM4#
sub45100-33490
45130BUTTON ASSY, HORN
DK.GRAY,TRIM9#
SANDAL WOOD,TRIM4#
45186COVER, STEERING WHEEL, LOWER NO.2
45188SCREW, STEERING WHEEL PAD ATTACHING
L=18.5
L=18
45201PNUT, STEERING WHEEL SET
8401
8408
7 parts on this diagram · 2 diagrams in section
