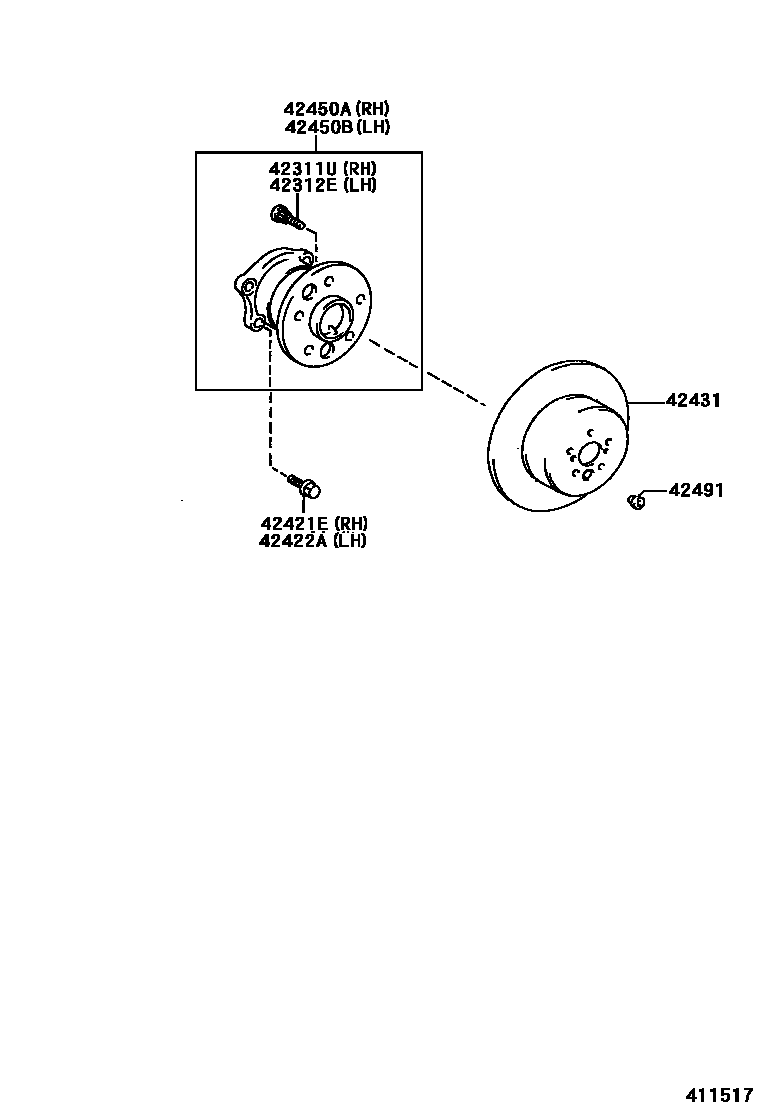

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iACV3#,MCV30¥240200108-200601

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iACV3#,MCV30¥240200108-200601

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-10510iACV3#,MCV30¥140200108-200406

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-10510iACV3#,MCV30¥140200108-200406

42431DISC, REAR

main42431-33030iACV3#,MCV30¥10,300200108-200406

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-48010iACV3#,MCV30¥36,300200108-200601

sub42450-48011¥36,100

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42460-48010iACV3#,MCV30¥36,300200108-200601

sub42460-48011¥36,100

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020iACV3#,MCV30¥140200108-200406

8 parts on this diagram · 1 diagram in section
