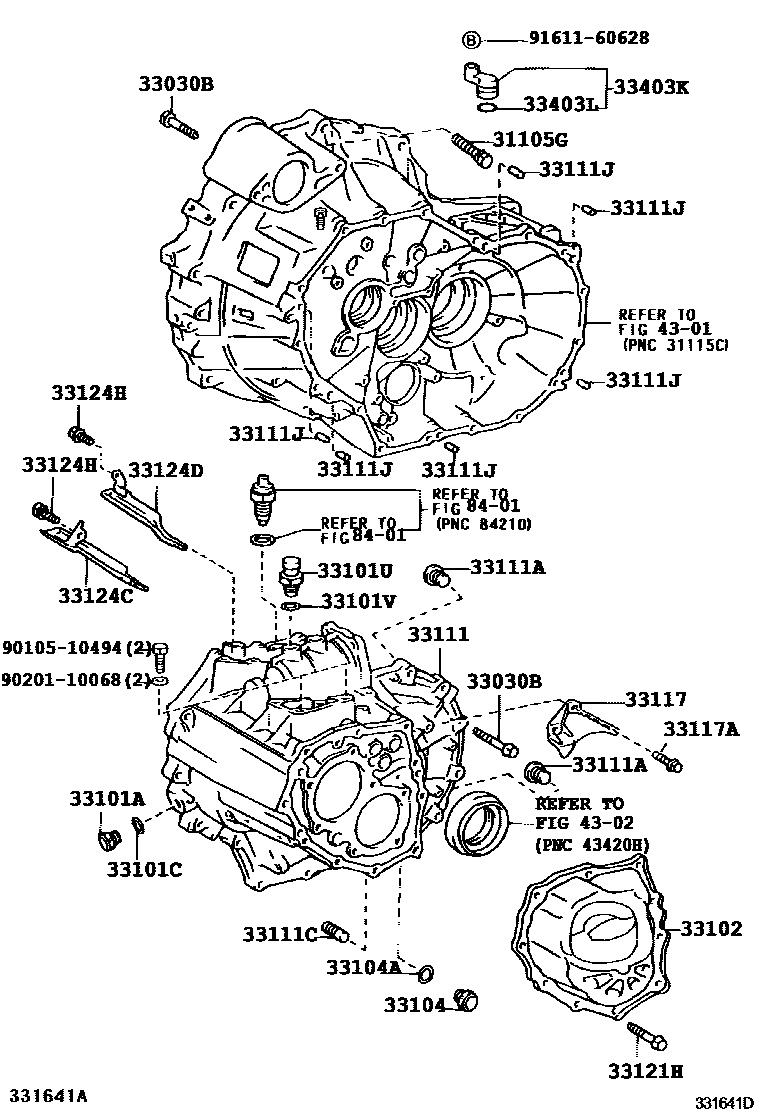

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
*12-1.25PX74.5-25
*12-1.25PX60-30
*10-1.25PX60-30
*10-1.25PX65-30
33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
*8-1.25PX45-27.5
33101APLUG(FOR MANUAL TRANSMISSION FILLER)
33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)
33101VGASKET(FOR MANUAL TRANSMISSION BREATHER PLUG)
33104PLUG SUB-ASSY, DRAIN(MTM)
33104AGASKET, DRAIN PLUG(MTM)
33111CASE, MANUAL TRANSMISSION
33111APLUG, MANUAL TRANSMISSION CASE
33111CPLUG(FOR TRANSMISSION CASE)
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
L=23,OD=8
33117PROTECTOR, MANUAL TRANSMISSION CASE
33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)
33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
33124CPIPE, OIL RECEIVER, NO.1(MTM)
33124DPIPE, OIL RECEIVER, NO.2(MTM)
33124HBOLT(FOR OIL RECEIVER PIPE)
33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403LRING, O
4301
4302
8401
9010510494
main90105-10494
9020110068
main90201-10068
9161160628
main91611-60628
27 parts on this diagram · 1 diagram in section
