TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

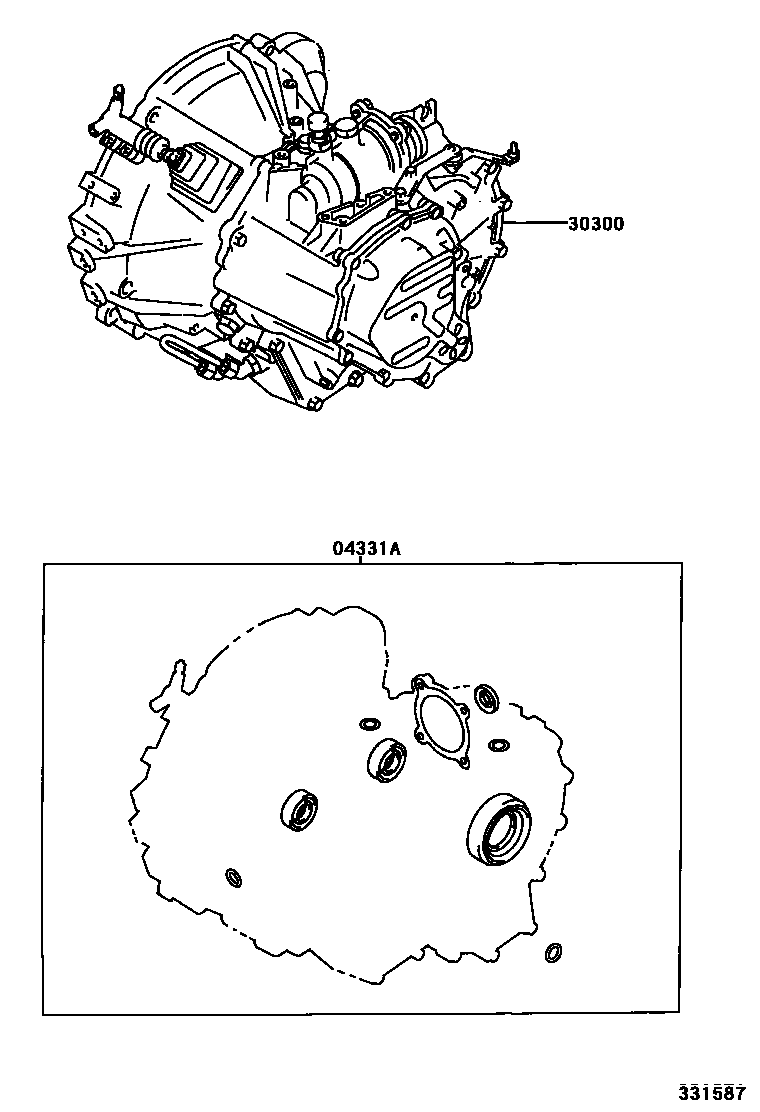

Parts diagram
04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)
main04331-28020i200108-200406
sub04331-64011
main04331-64010i200406-200509
sub04331-64011
main04331-64011i200509-200601
30300TRANSAXLE ASSY, MANUAL
main30300-33190i200108-200307
E354
main30300-33191i200307-200503
E354
sub30300-33192
main30300-33192i200503
E354

2 parts on this diagram · 1 diagram in section
