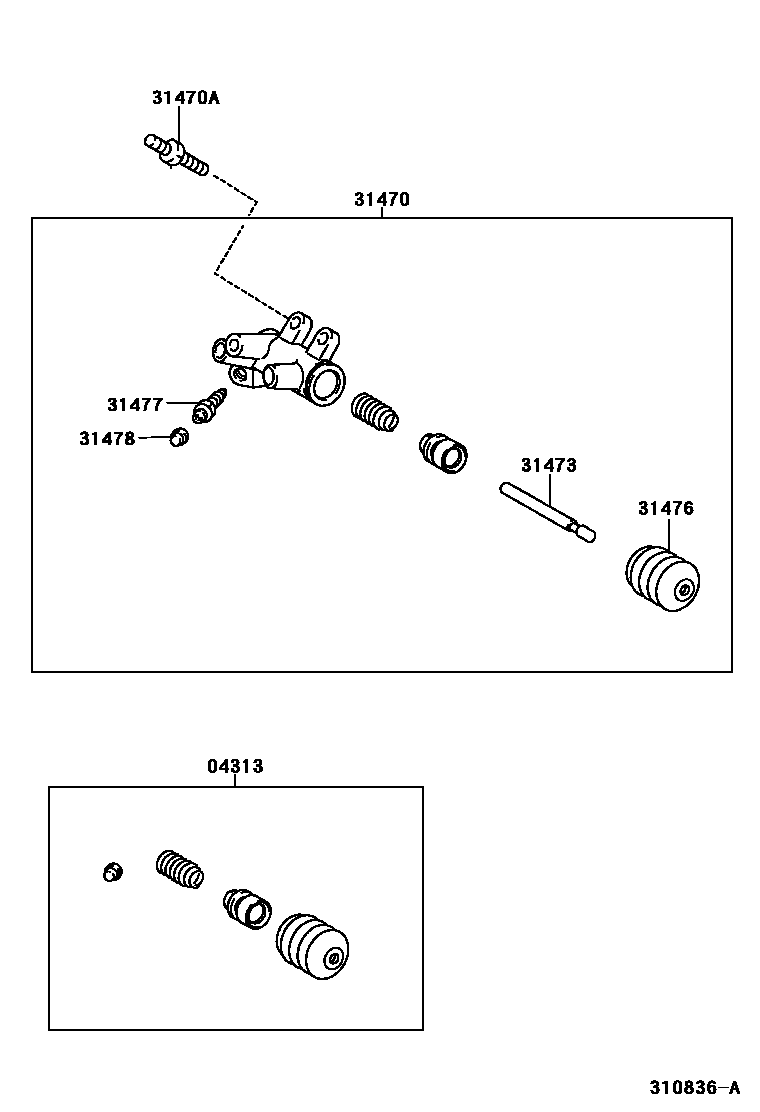

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iACV30..MTM200108-200307

main04313-52020iACV30..MTM200401-200406

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-28080iACV30..MTM200108-200307

sub31470-28081

main31470-42030iACV30..MTM200307-200404

sub31470-42031

main31470-42031iACV30..MTM200406

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90109-08248iACV30..MTM200307-200406

*8-1.25PX25-20.1

main91611-60822iACV30..MTM200108-200307

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22030iACV30..MTM200406-200601

main31473-32010iACV30..MTM200108-200308

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iACV30..MTM200108-200601

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iACV30..MTM200108-200601

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iACV30..MTM200108-200601

7 parts on this diagram · 1 diagram in section
