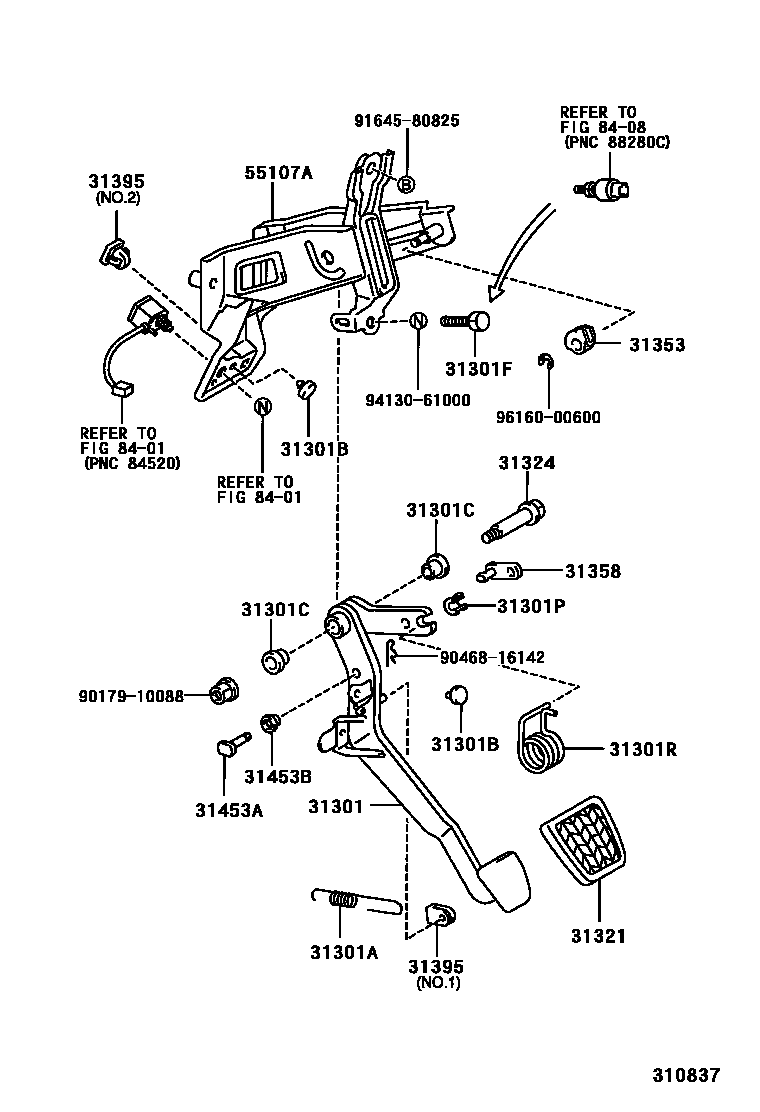

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-33040iACV30..LHD..MTM¥2,500200108-200406

main31301-33050iACV30..RHD..MTM¥2,700200109-200406

31301ASPRING(FOR CLUTCH PEDAL)

main90905-07033iACV30..MTM¥230200108-200406

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iACV30..MTM¥110200108-200406

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iACV30..MTM¥120200108-200406

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iACV30..MTM¥110200108-200406

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iACV30..MTM¥100200108-200406

31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)

main90949-03110iACV30..MTM¥930200108-200406

31321PAD, CLUTCH PEDAL

main31321-52010iACV30..MTM¥200200108-200406

31324SHAFT, CLUTCH PEDAL

main90109-10167iACV30..MTM¥190200108-200406

31353HOLDER, CLUTCH PEDAL SPRING

main31353-35010iACV30..MTM¥660200108-200406

31358CAP, OVER CENTER SPRING

main31358-42010iACV30..MTM¥430200108-200406

31395HOOK, PEDAL SPRING

main31395-33010iACV30..MTM¥160200108-200406

NO.1

main31395-33020iACV30..MTM¥90200108-200406

NO.2

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08143iACV30..MTM¥230200108-200406

L=30

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iACV30..MTM¥110200108-200406

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-33030iACV30..RHD..MTM¥3,370200109-200502

main55107-33040iACV30..LHD..MTM¥3,370200108-200502

8401

8408

9017910088

main90179-10088¥100

9046816142

main90468-16142¥70

9164580825

main91645-80825¥100

9413061000

main94130-61000¥70

9616000600

main96160-00600¥80

22 parts on this diagram · 3 diagrams in section
