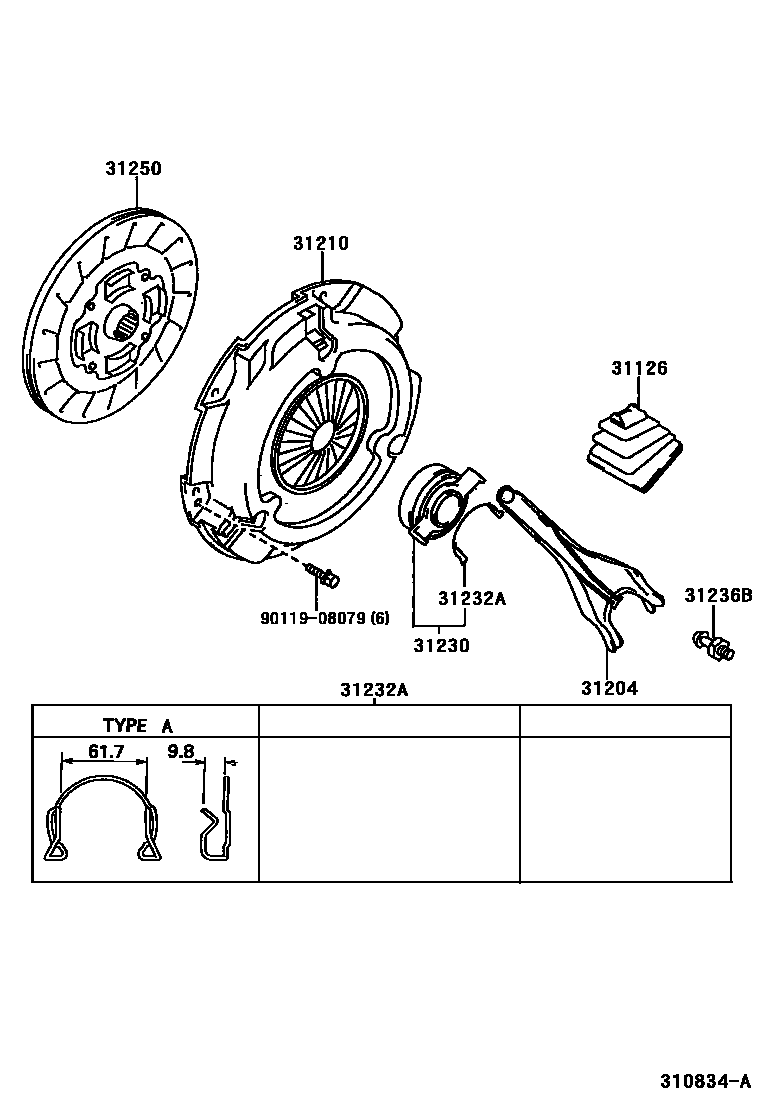

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-32010iACV30..MTM200108-200406

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20100iACV30..MTM200108-200406

31210COVER ASSY, CLUTCH

main31210-28060iACV30..MTM200108-200508

sub31210-33040

main31210-33040iACV30..MTM200509

sub31210-33041

31230BEARING ASSY, CLUTCH RELEASE

main31230-20170iACV30..MTM200108-200601

31232ACLIP, RELEASE BEARING HUB

main31232-20020iACV30..MTM200108-200601

TYPE A:REFER TO ILLUSTRATION

31236BSUPPORT, RELEASE FORK

main31236-20060iACV30..MTM200108-200406

31250DISC ASSY, CLUTCH

main31250-28180iACV30..MTM200108-200510

sub31250-28181

main31250-28181iACV30..MTM200511

sub31250-33060

9011908079

main90119-08079

8 parts on this diagram · 1 diagram in section
