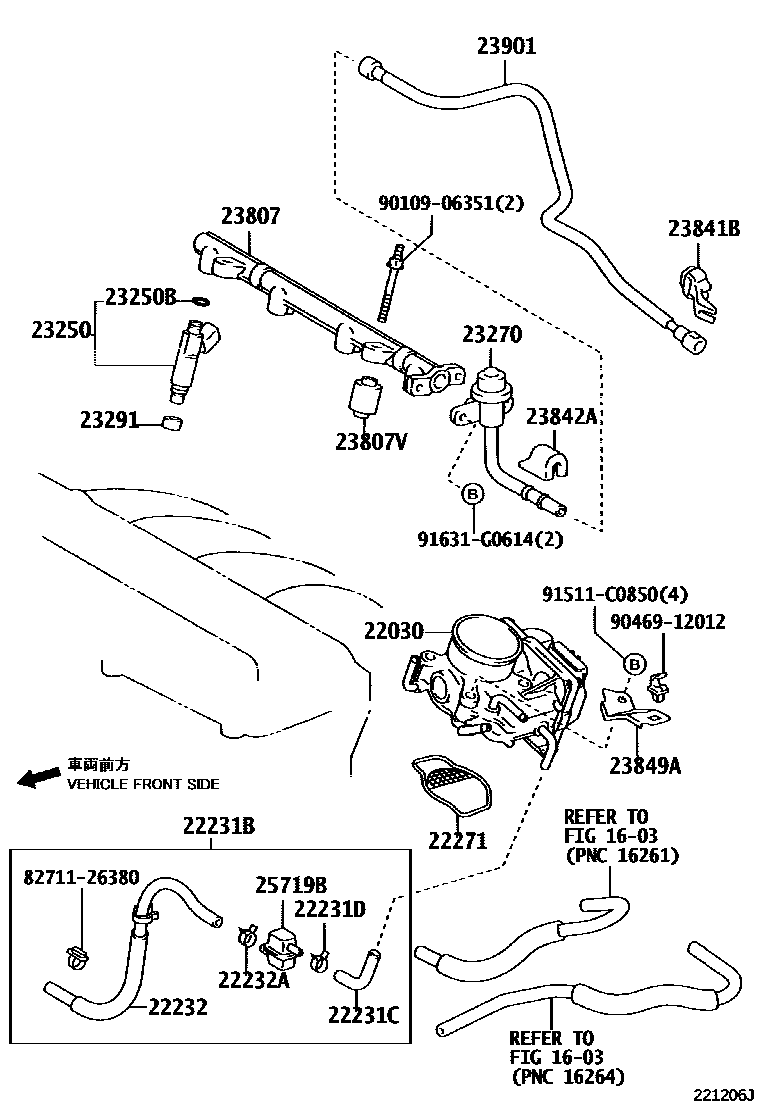

FUEL INJECTION SYSTEM
1603
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22231BHOSE, THROTTLE BODY
22231CHOSE, THROTTLE BODY, NO.1
22231DCLAMP OR CLIP(FOR THROTTLE BODY HOSE)
22232HOSE, THROTTLE BODY, NO.2
22232ACLAMP OR CLIP(FOR THROTTLE BODY HOSE)
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23291INSULATOR, INJECTOR VIBRATION
23807PIPE SUB-ASSY, FUEL DELIVERY
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23849ASUPPORT, FUEL PIPE
23901TUBE SUB-ASSY, FUEL
25719BTANK, VACUUM SURGE
8271126380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
9010906351
9046912012
91511C0850
91631G0614
24 parts on this diagram · 3 diagrams in section
