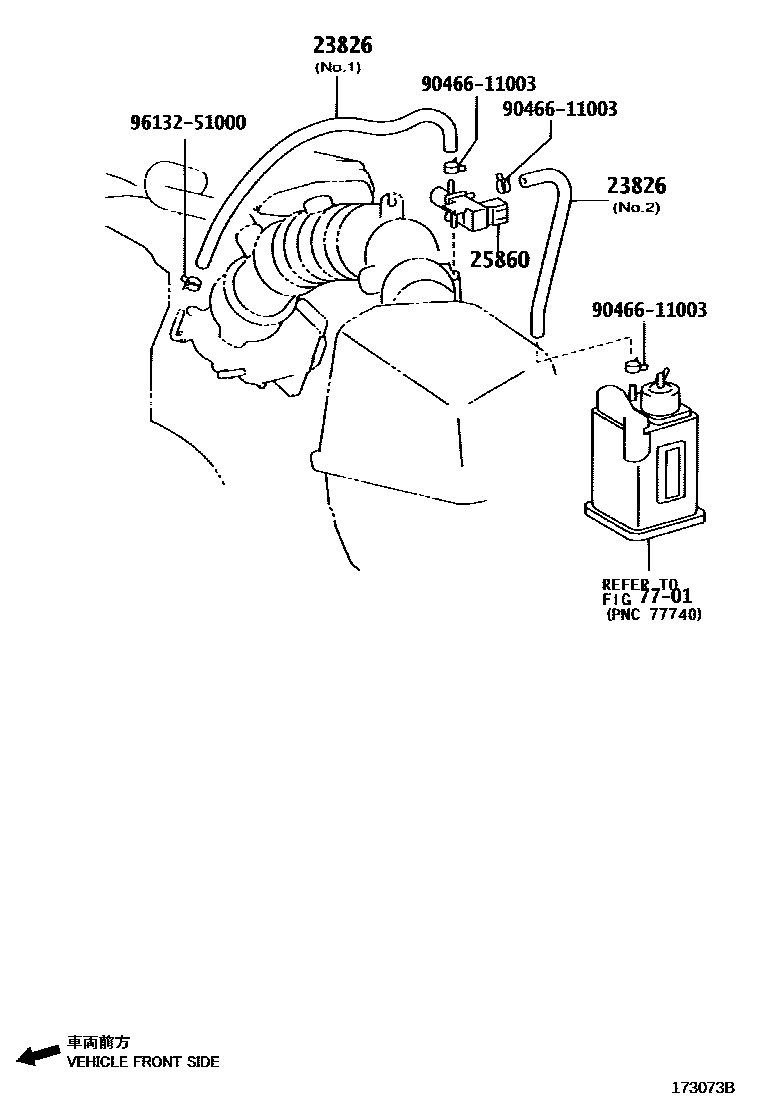

VACUUM PIPING

0001 1 0002 1

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-20080i1MZFE..MCV30200108-200406

main23826-28150i1AZFE,2AZFE..ACV3#200108-200406

NO.1

main23826-28160i1AZFE,2AZFE..ACV3#200108-200406

NO.2

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-28080i1AZFE,2AZFE..ACV3#200108-200406

main25860-62010i1MZFE..MCV30200108-200406

7701

9046611003

main90466-11003

9613251000

main96132-51000

5 parts on this diagram · 2 diagrams in section
