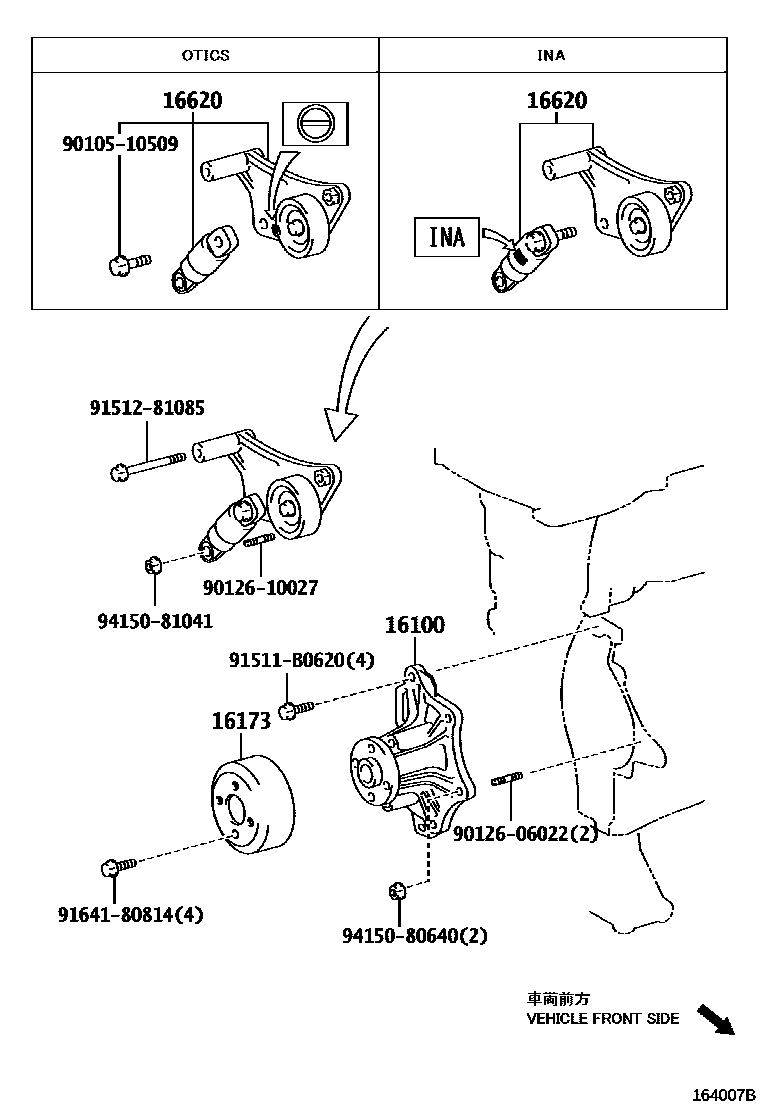

WATER PUMP

0001 1 0002 1 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-28040i1AZFE,2AZFE..ACV3#¥15,000200108-200406

sub16100-28041¥11,800

main16100-29085i1MZFE..MCV30¥14,900200108-200406

16173PULLEY, WATER PUMP

main16173-28020i1AZFE,2AZFE..ACV3#¥2,290200108-200406

16620TENSIONER ASSY, V-RIBBED BELT

main16620-28011i1AZFE,2AZFE..ACV3#¥29,100200108-200601

sub16620-0W110¥29,100

9010510509

main90105-10509¥170

9012606022

main90126-06022¥230

9012610027

main90126-10027¥410

91511B0620

main91511-B0620¥100

9151281085

main91512-81085¥120

9164180814

main91641-80814¥110

9415080640

main94150-80640¥220

9415081041

main94150-81041¥110

11 parts on this diagram · 3 diagrams in section
