STANDARD TOOL

09110JACK ASSY

main09111-06020iACV3#,MCV30200108-200201

sub09111-0W080

main09111-06100iACV30..LHD..ATM200410-200505

CHINA SPEC

sub09111-0W100

main09111-0W080iACV3#,MCV30200201-200403

main09111-0W100iACV30..LHD..ATM200505

CHINA SPEC

main09111-AA010iACV31..LHD200404-200410

09113HANDLE, JACK

main09113-33010iACV3#,MCV30200108-200406

09120BAG, TOOL

main09120-16030iACV3#,MCV30200108-200406

09130PLIERS

main99913-11500iACV3#,MCV30200108-200406

09135DRIVER, SCREW

main99915-10700iACV3#,MCV30200108-200406

09141SPANNER

main99914-10810iACV3#,MCV30200108-200406

8 X 10

main99914-11214iACV3#,MCV30200108-200406

12 X 14

09150WRENCH, HUB NUT BOX

main09150-40010iACV3#,MCV30200108-200406

09184STOPPER, WHEEL

main09184-00010iACV3#,MCV30200108-200406

51960HOOK ASSY, FRONT

main51960-33010iACV3#,MCV30200108-200406

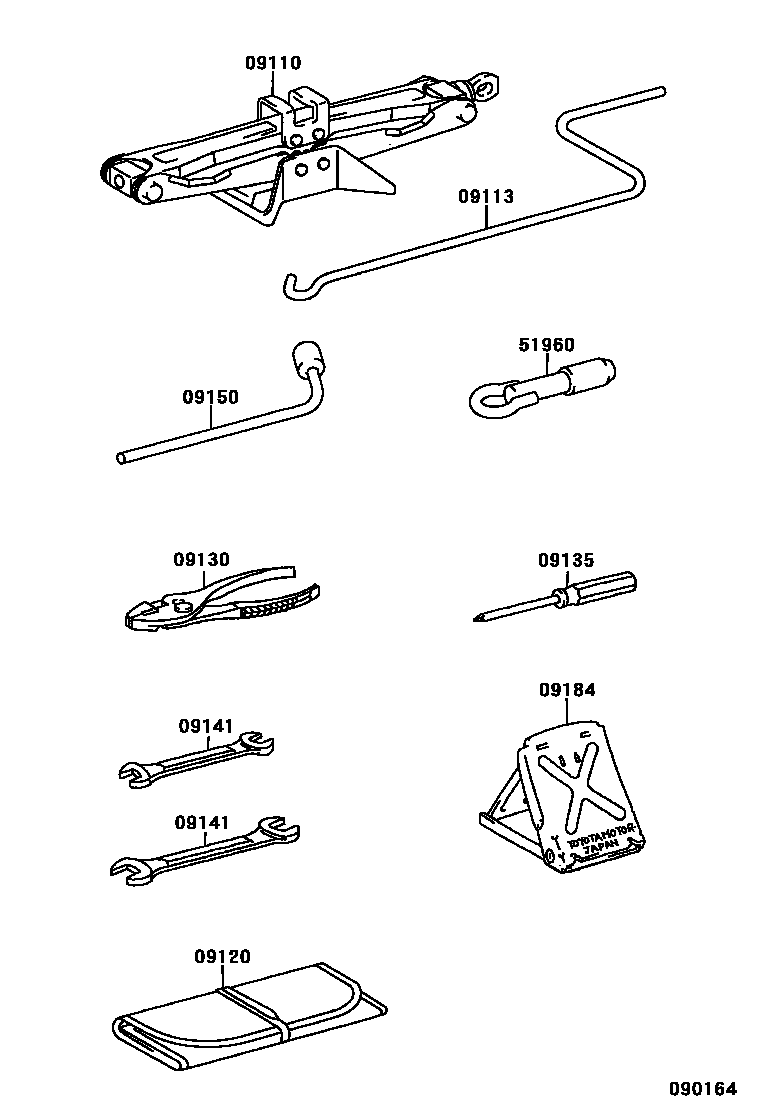

9 parts on this diagram · 1 diagram in section
