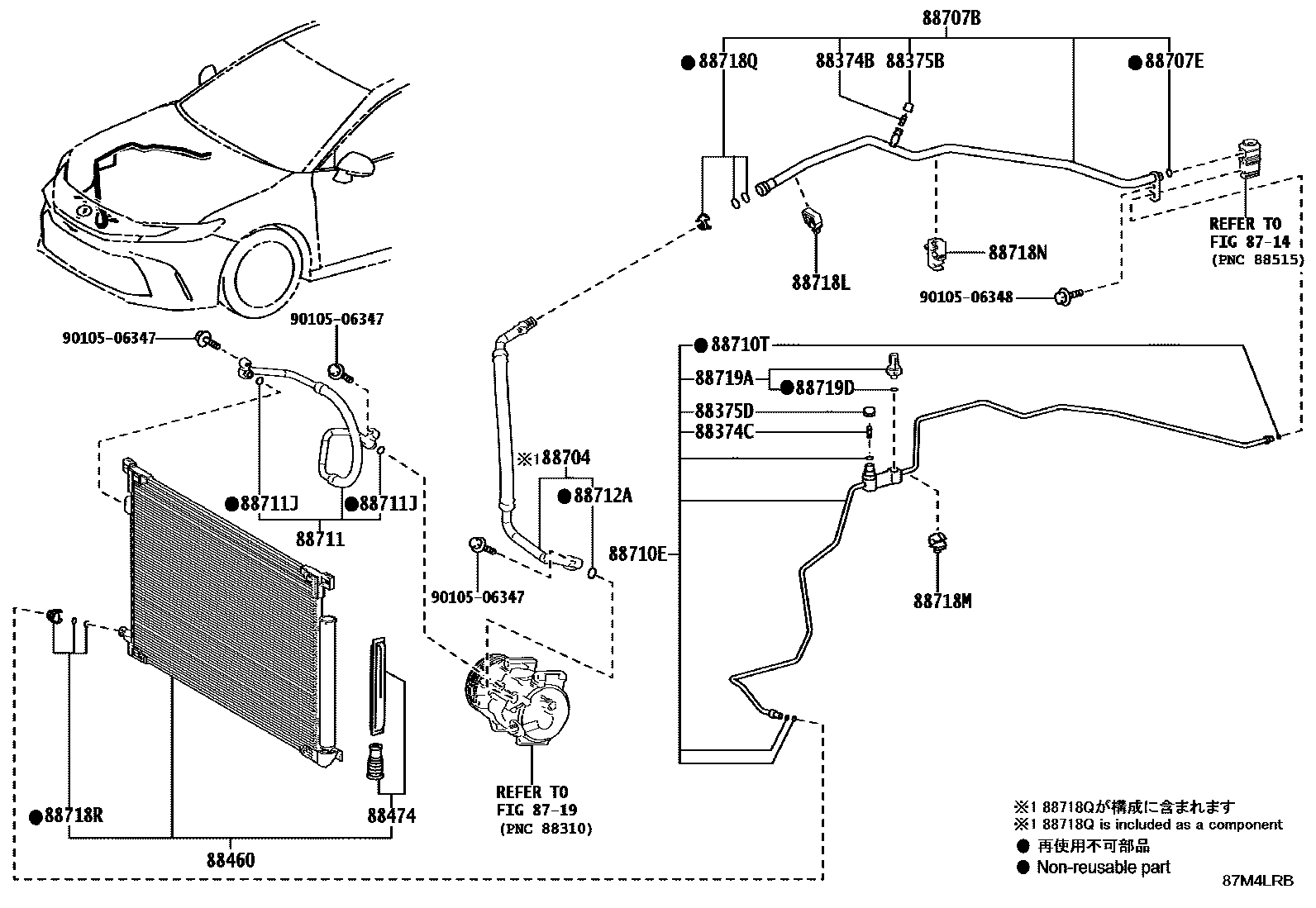

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iAXVA80,AXVH80,MXVA80202406

88374CVALVE, SERVICE, NO.2

main88374-30010iAXVA80,AXVH80,MXVA80202406

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iAXVA80,MXVA80;AXVH80..GCC,TAIW;AXVH80..RHD..EUR202406

MOLDOVA SPEC

main88375-30290iAXVA80,MXVA80;AXVH80..GCC,TAIW;AXVH80..RHD..EUR202406

UKRAINE SPEC

main88375-30290iAXVA80,MXVA80;AXVH80..GCC,TAIW;AXVH80..RHD..EUR202406

CAUCASUS SPEC

main88375-30290iAXVA80,MXVA80;AXVH80..GCC,TAIW;AXVH80..RHD..EUR202406

KAZAKHSTAN SPEC

main88375-30290iAXVA80,MXVA80;AXVH80..GCC,TAIW;AXVH80..RHD..EUR202406

KYRGYZSTAN SPEC

main88375-30290iAXVA80,MXVA80;AXVH80..GCC,TAIW;AXVH80..RHD..EUR202406

ARMENIA SPEC

main88375-30310iAXVH80..G..ARL;AXVH80..LHD..G..EUR;AXVH80..N..(ARL,EUR)202406

ISRAEL SPEC

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iAXVA80,MXVA80;AXVH80..GCC,TAIW;AXVH80..RHD..EUR202406

MOLDOVA SPEC

main88375-30280iAXVA80,MXVA80;AXVH80..GCC,TAIW;AXVH80..RHD..EUR202406

UKRAINE SPEC

main88375-30280iAXVA80,MXVA80;AXVH80..GCC,TAIW;AXVH80..RHD..EUR202406

CAUCASUS SPEC

main88375-30280iAXVA80,MXVA80;AXVH80..GCC,TAIW;AXVH80..RHD..EUR202406

KAZAKHSTAN SPEC

main88375-30280iAXVA80,MXVA80;AXVH80..GCC,TAIW;AXVH80..RHD..EUR202406

KYRGYZSTAN SPEC

main88375-30280iAXVA80,MXVA80;AXVH80..GCC,TAIW;AXVH80..RHD..EUR202406

ARMENIA SPEC

main88375-30320iAXVH80..G..ARL;AXVH80..LHD..G..EUR;AXVH80..N..(ARL,EUR)202406

ISRAEL SPEC

88460CONDENSER ASSY, COOLER

main884A0-42010iAXVA80,MXVA80202406

main884A0-42070iAXVH80202406

88474DRYER, COOLER

main88474-12010iAXVA80,AXVH80,MXVA80202406

88704HOSE SUB-ASSY, SUCTION

main88704-33620iAXVA80..GCC202406

main88704-33630iAXVH80202406

main88704-33701iAXVA80..EUR202406

main88704-33710iMXVA80202406

88707BTUBE SUB-ASSY, SUCTION, B

main88707-33190iAXVH80..GCC,TAIW202406

MOLDOVA SPEC

main88707-33190iAXVH80..GCC,TAIW202406

UKRAINE SPEC

main88707-33190iAXVH80..GCC,TAIW202406

CAUCASUS SPEC

main88707-33190iAXVH80..GCC,TAIW202406

KAZAKHSTAN SPEC

main88707-33190iAXVH80..GCC,TAIW202406

KYRGYZSTAN SPEC

main88707-33190iAXVH80..GCC,TAIW202406

ARMENIA SPEC

main88707-33210iAXVH80..LHD..EUR202406

ISRAEL SPEC

main88707-33220iAXVA80,MXVA80202406

main88707-33260iAXVH80..RHD..EUR202406

main88707-33270iAXVH80..ARL202406

88707ERING, O, NO.2(FOR SUCTION TUBE)

main90099-14121iAXVA80,AXVH80,MXVA80202406

ID=13.4,OD=18.2

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-33620iAXVH80..ARL202406

main88710-33631iAXVH80..RHD..EUR202406

main88710-33640iAXVH80..LHD..EUR202406

ISRAEL SPEC

main88710-33651iAXVH80..GCC,TAIW202406

MOLDOVA SPEC

main88710-33651iAXVH80..GCC,TAIW202406

UKRAINE SPEC

main88710-33651iAXVH80..GCC,TAIW202406

CAUCASUS SPEC

main88710-33651iAXVH80..GCC,TAIW202406

KAZAKHSTAN SPEC

main88710-33651iAXVH80..GCC,TAIW202406

KYRGYZSTAN SPEC

main88710-33651iAXVH80..GCC,TAIW202406

ARMENIA SPEC

main88710-33680iAXVA80,MXVA80202406

88710TRING, O, NO.3(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90099-14119iAXVA80,AXVH80,MXVA80202406

ID=6.7,OD=10.3

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-33330iAXVA80..GCC202406

main88711-33340iAXVH80202406

main88711-33401iAXVA80..EUR202406

main88711-33410iMXVA80202406

88711JRING, O, NO.1(FOR DISCHARGE HOSE)

main90099-14120iAXVA80,AXVH80,MXVA80202406

ID=10.8,OD=15.6

88712ARING, O(FOR COOLER REFRIGERANT SUCTION HOSE)

main90099-14121iAXVA80,AXVH80,MXVA80202406

ID=13.4,OD=18.2

88718LCLAMP, PIPING

main88718-33550iAXVA80,MXVA80202406

88718MCLAMP, PIPING

main88718-33560iAXVA80,AXVH80,MXVA80202406

88718NCLAMP, PIPING

main88718-60C10iAXVA80,MXVA80202406

88718QCLAMP, PIPING

main88718-52280iAXVA80,AXVH80,MXVA80202406

88718RCLAMP, PIPING

main88718-1E150iAXVA80,AXVH80,MXVA80202406

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010iAXVA80,AXVH80,MXVA80202406

88719DRING, O(FOR AIR CONDITIONER PRESSURE SENSOR)

main90099-14122iAXVA80,AXVH80,MXVA80202406

ID=10.6,OD=14.16

9010506347

main90105-06347

9010506348

main90105-06348

25 parts on this diagram · 4 diagrams in section
