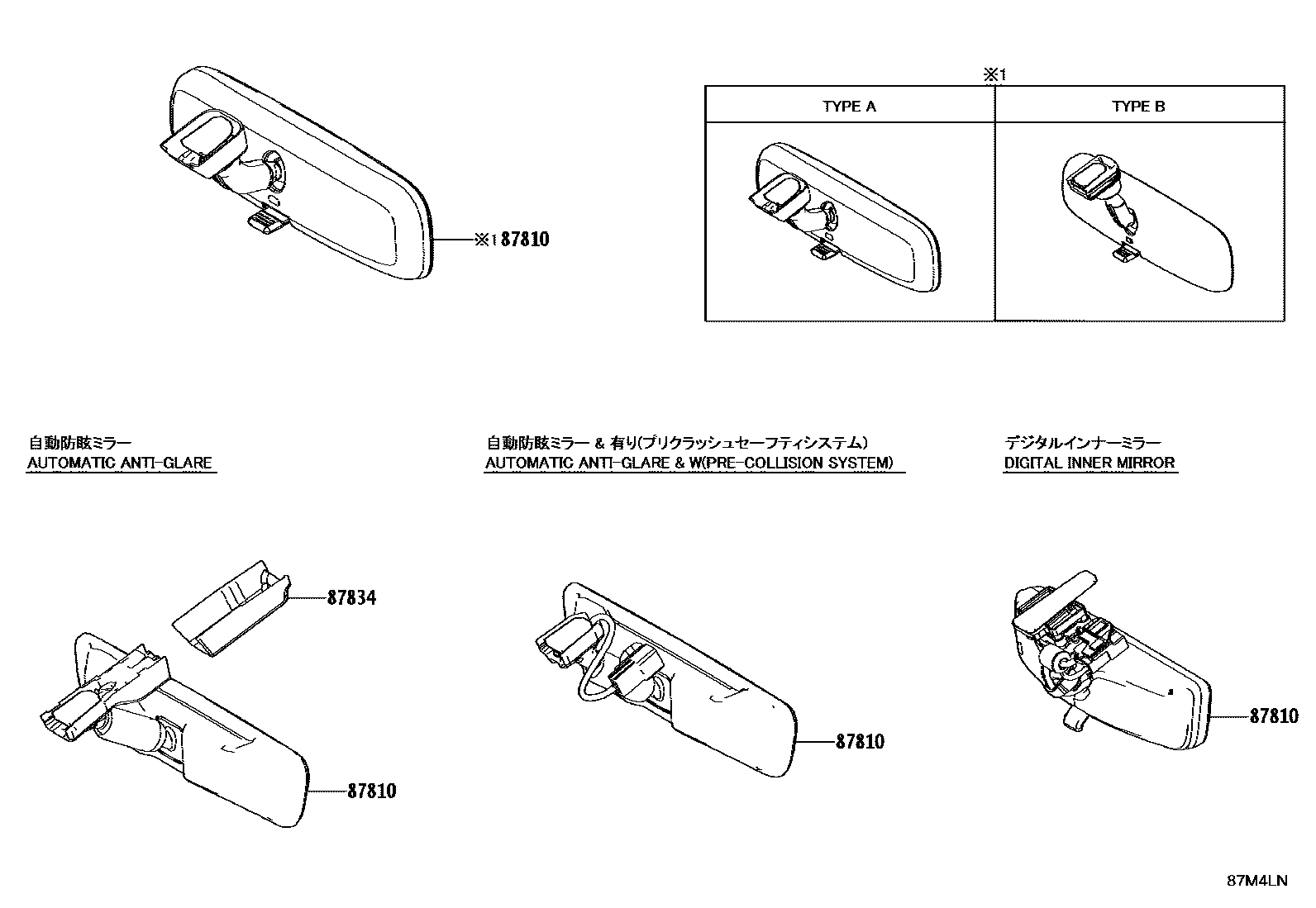

MIRROR

0001 1INNER REAR VIEW MIRROR 0002 1OUTER REAR VIEW MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-53210iAXVH80,MXVA80..N..TAIW202406

TYPE B

main87810-60191iAXVA80,AXVH80..D202406

TYPE A

main87840-0W360supersedes 87840-0W360iAXVH80..G..(ARL,TAIW)202406

UPPER GRADE PACKAGE&HEAD UP DISPLAY-WITH

main87840-0W460iAXVH80..LHD..G..EUR202406

ISRAEL SPEC

main87840-0W480iAXVA80,AXVH80..LHD..G..EUR202406

LIBYA SPEC

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87818-42020iAXVA80,AXVH80..LHD..G..EUR202406

LIBYA SPEC

2 parts on this diagram · 2 diagrams in section
