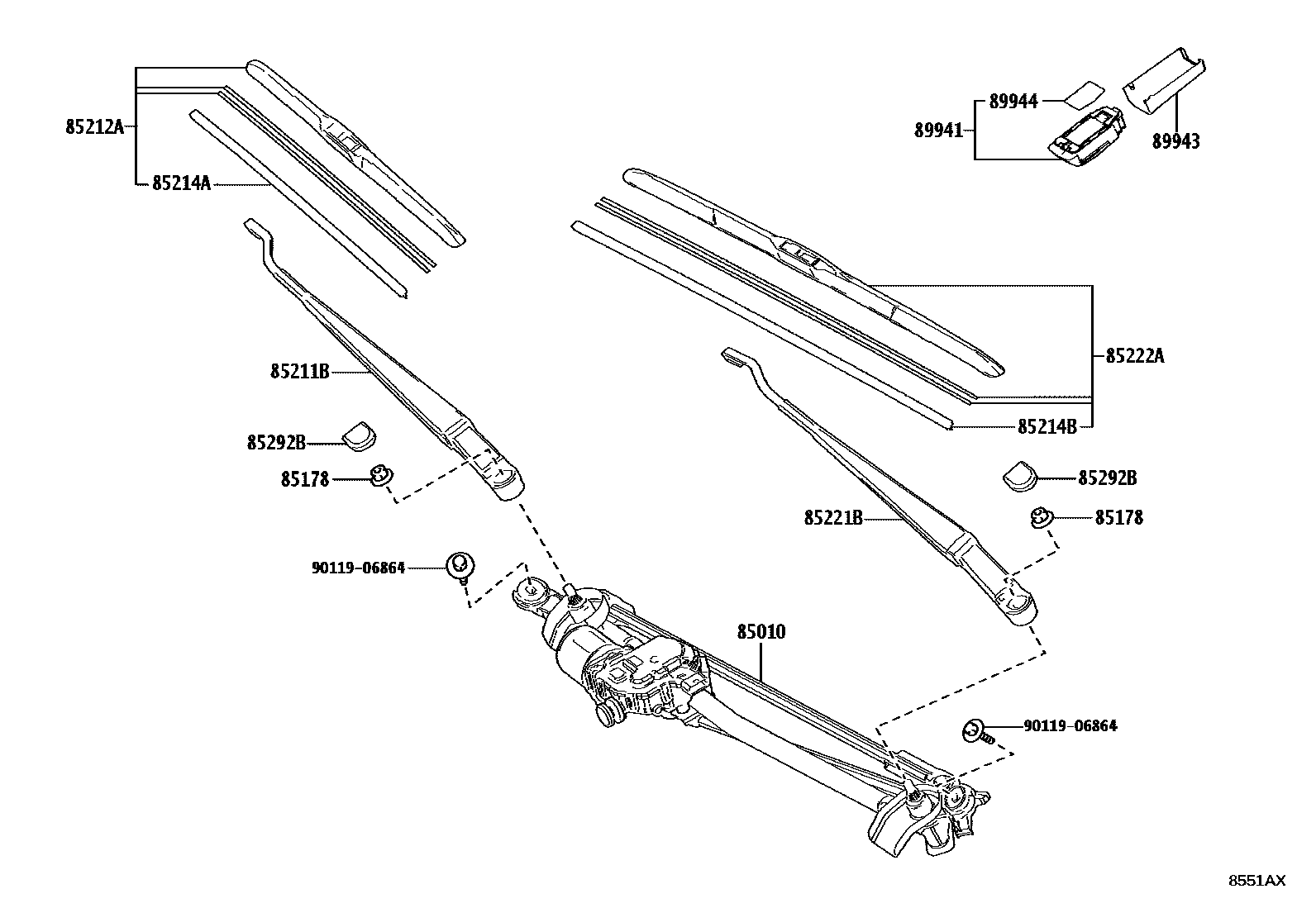

WINDSHIELD WIPER

0001 1 0002 1

85010MOTOR & LINK ASSY, FR WIPER

main85010-33420iAXVA80,AXVH80,MXVA80..LHD202406

main85010-33430iAXVH80..RHD202406

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2iAXVA80,AXVH80,MXVA80202406

85211BARM, FRONT WIPER, RH

main85211-33480iAXVH80..RHD202406

main85211-33490iAXVA80,AXVH80,MXVA80..LHD202406

85212ABLADE, FR WIPER, RH

main85212-33370iAXVA80,AXVH80,MXVA80..LHD202406

main85212-52210iAXVH80..RHD202406

85214ARUBBER, WIPER, RH

main85214-52110iAXVH80..RHD202406

main85214-60120iAXVA80,AXVH80,MXVA80..LHD202406

85214BRUBBER, WIPER, LH

main85214-52110iAXVA80,AXVH80,MXVA80..LHD202406

main85214-60120iAXVH80..RHD202406

85221BARM, FRONT WIPER, LH

main85221-33500iAXVA80,AXVH80,MXVA80..LHD202406

main85221-33510iAXVH80..RHD202406

main85221-33480iAXVA80,AXVH80..GCC202406

JORDAN SPEC

85222ABLADE, FR WIPER, LH

main85222-33340iAXVA80,AXVH80,MXVA80..LHD202406

main85222-33350iAXVH80..RHD202406

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iAXVA80,AXVH80,MXVA80202406

89941SENSOR, RAIN

main89941-78020iAXVA80,AXVH80..EUR;AXVH80,MXVA80..G..(ARL,TAIW)202406

89943COVER, RAIN SENSOR

main89943-12040iAXVA80,AXVH80..EUR;AXVH80,MXVA80..G..(ARL,TAIW)202406

89944TAPE, RAIN SENSOR

main89944-42020iAXVA80,AXVH80..EUR;AXVH80,MXVA80..G..(ARL,TAIW)202406

9011906864

main90119-06864

13 parts on this diagram · 2 diagrams in section
