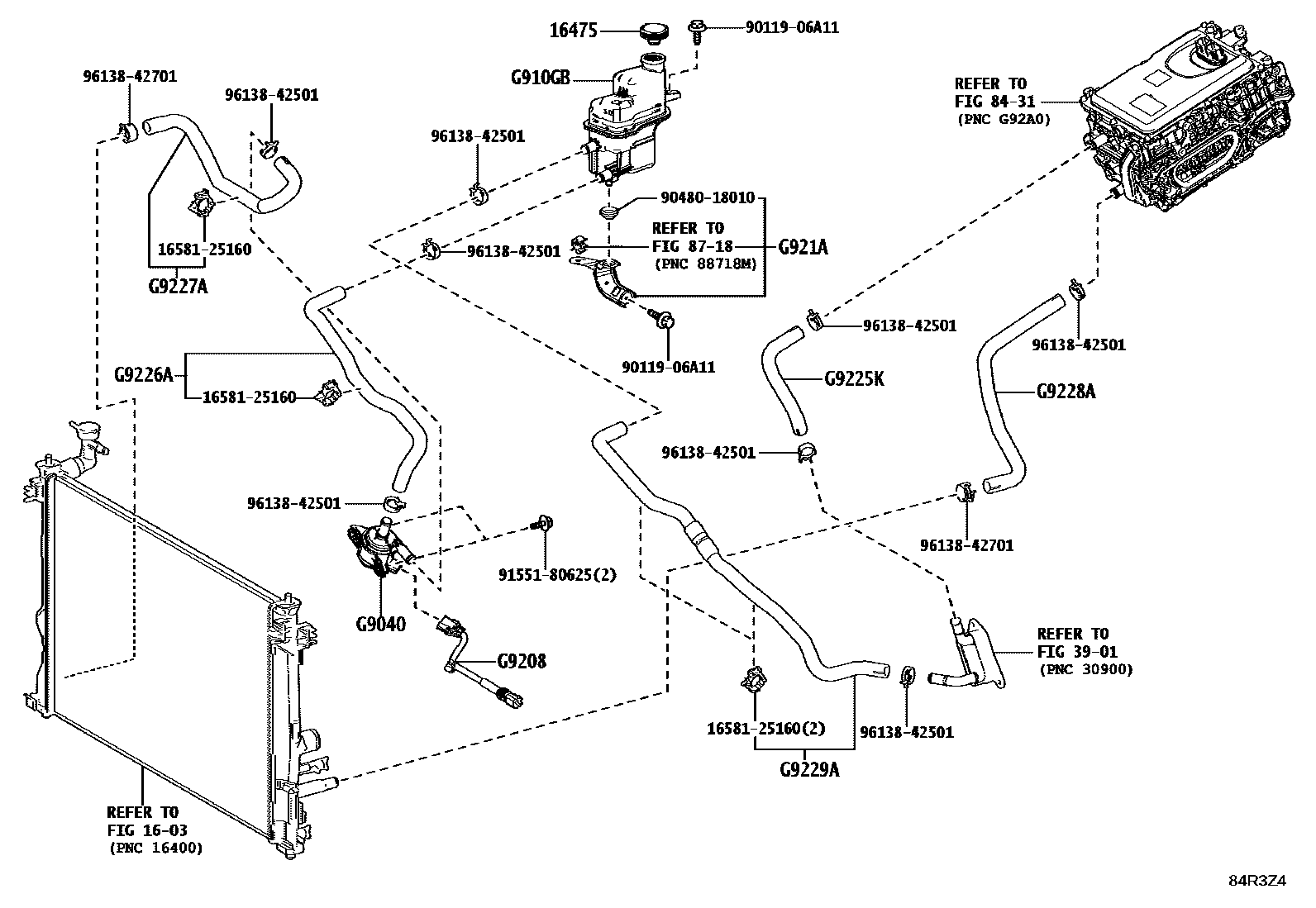

INVERTER COOLING

1603

16475CAP, RESERVE TANK

main16475-28140iA25..AXVH80202406

3901

8431

8718

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904033060iAXVH80202406

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G33010iAXVH80202406

G9208WIRE SUB-ASSY, INVERTER

mainG920833020iAXVH80202406

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H233011iAXVH80202406

G9225KHOSE, INVERTER COOLING, NO.1

mainG922533100iAXVH80202406

G9226AHOSE, INVERTER COOLING, NO.2

mainG922633022iAXVH80202406

G9227AHOSE, INVERTER COOLING, NO.3

mainG922733021iAXVH80202406

G9228AHOSE, INVERTER COOLING, NO.4

mainG922833040iAXVH80202406

G9229AHOSE, INVERTER COOLING, NO.5

mainG922933040iAXVH80202406

1658125160CLAMP, HOSE(FOR WATER HOSE)

main16581-25160

9011906A11

main90119-06A11

9048018010

main90480-18010

9155180625

main91551-80625

9613842501

main96138-42501

9613842701

main96138-42701

20 parts on this diagram · 1 diagram in section
