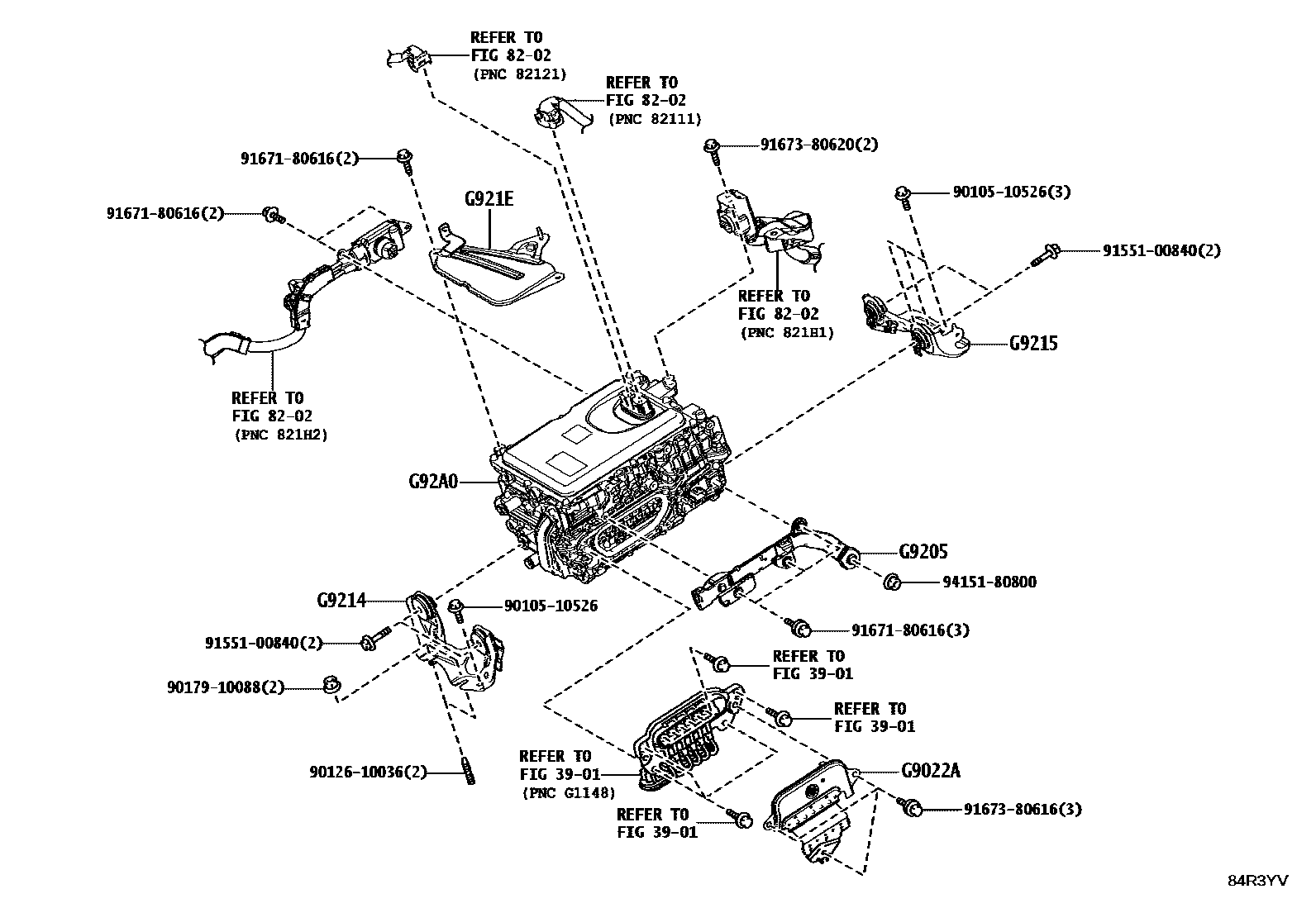

HEV INVERTER

3901

8202

G9022ACOVER SUB-ASSY, INVERTER, UPPER

mainG902228030iAXVH80202406

G9205PLATE SUB-ASSY, INVERTER BUS-BAR

mainG920533040iAXVH80202406

G9214BRACKET, INVERTER, NO.1

mainG921463010iAXVH80202406

G9215BRACKET, INVERTER, NO.2

mainG921533050iAXVH80202406

G921EPROTECTOR, INVERTER

mainG921E33040iAXVH80202406

G92A0INVERTER ASSY, HYBRID MOTOR CONTROL

mainG92A033050iAXVH80202406

*614

9010510526

main90105-10526

9012610036

main90126-10036

9017910088

main90179-10088

9155100840

main91551-00840

9167180616

main91671-80616

9167380616

main91673-80616

9167380620

main91673-80620

9415180800

main94151-80800

16 parts on this diagram · 1 diagram in section
