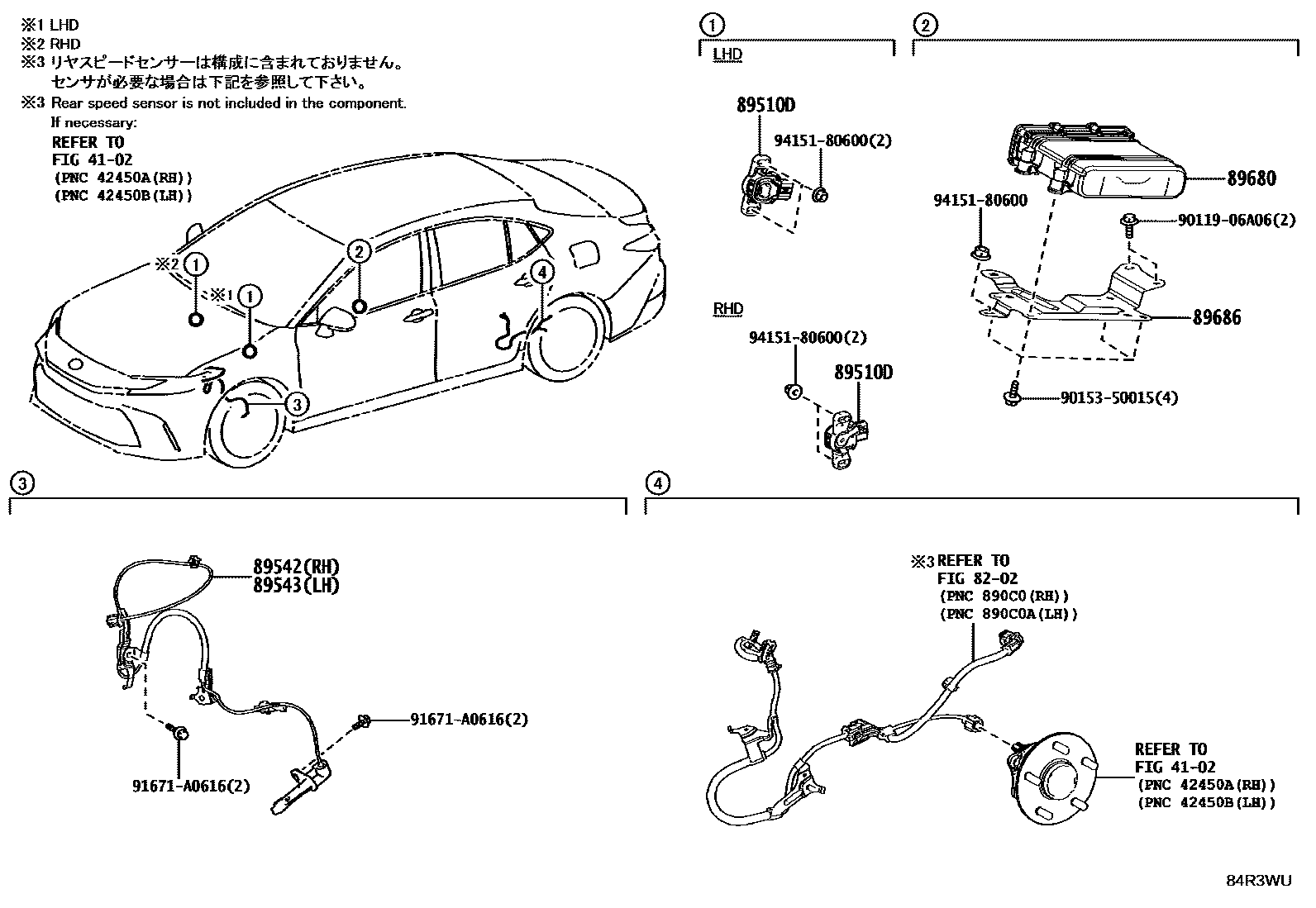

ABS & VSC

4102

8202

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-42010iAXVH80..LHD202406

main89510-42020iAXVH80..RHD202406

89542SENSOR, SPEED, FRONT RH

main89542-33190iAXVA80,AXVH80,MXVA80202406

89543SENSOR, SPEED, FRONT LH

main89543-33190iAXVA80,AXVH80,MXVA80202406

89680SUPPLY ASSY, BRAKE CONTROL POWER

main89680-48030iAXVH80202406

89686BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-33020iAXVH80202406

9011906A06

main90119-06A06

9015350015

main90153-50015

91671A0616

main91671-A0616

9415180600

main94151-80600

11 parts on this diagram · 1 diagram in section
