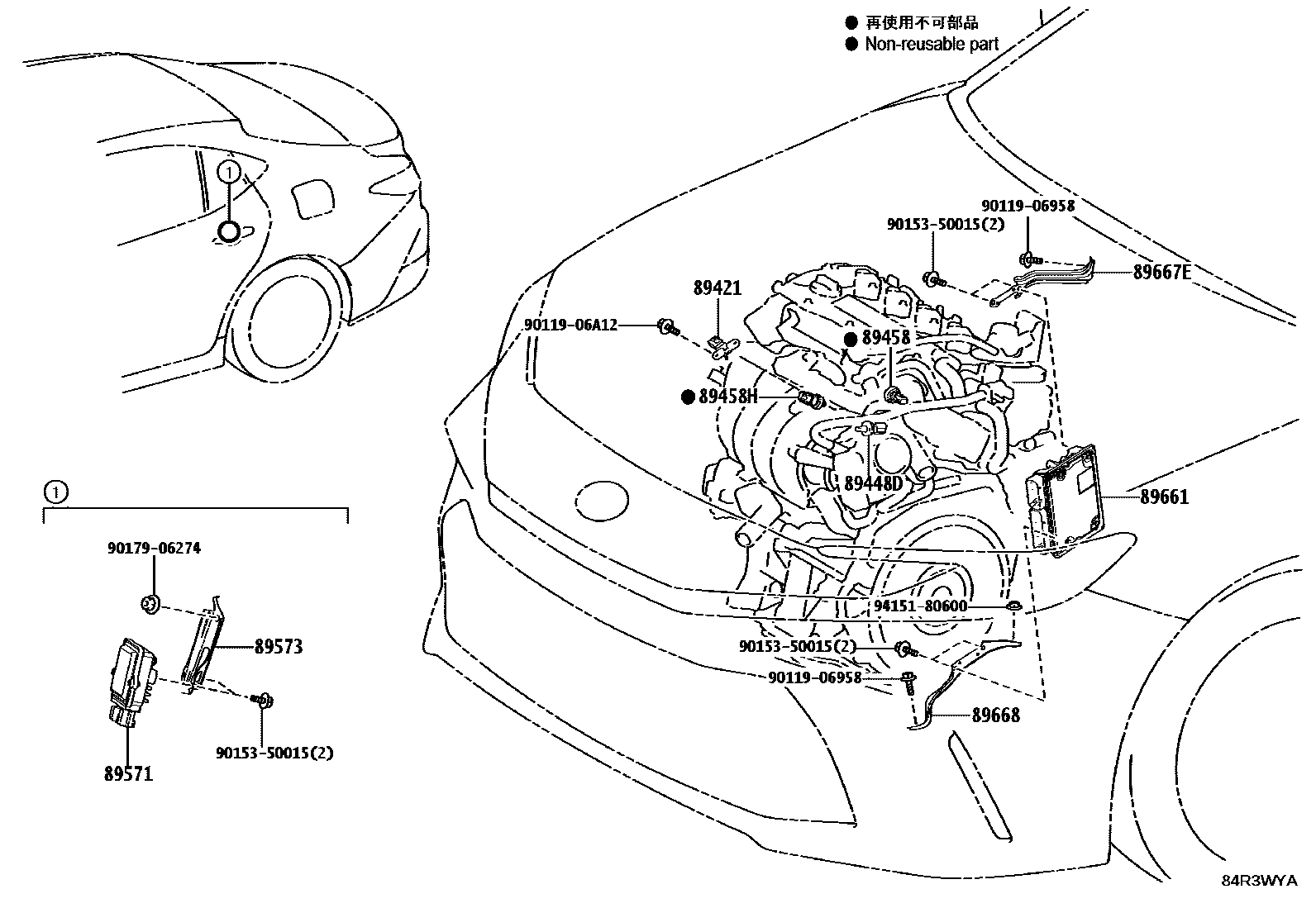

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iAXVA80,AXVH80,MXVA80202406

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-33010iAXVA80,AXVH80,MXVA80202406

89458SENSOR, FUEL PRESSURE

main89458-33030iAXVA80,AXVH80,MXVA80202406

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-33042iAXVA80,AXVH80,MXVA80202406

89571COMPUTER, FUEL PUMP CONTROL

main89571-42010iAXVA80,AXVH80,MXVA80202406

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-33070iAXVA80,AXVH80,MXVA80202406

89661COMPUTER, ENGINE CONTROL

main89661-3TM20iMXVA80202406

DENSO,*614

main89661-3TM30iAXVA80202406

DENSO,*614

main89661-3TM50iAXVH80202406

DENSO,*614

main89661-3TM50iAXVH80202406

DENSO,ISRAEL SPEC,*614

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-33190iAXVA80,MXVA80202406

main89667-33300iAXVH80202406

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-33240iAXVA80,MXVA80202406

main89668-33300iAXVH80..LHD202406

main89668-33310iAXVH80..RHD202406

9011906958

main90119-06958

9011906A12

main90119-06A12

9015350015

main90153-50015

9017906274

main90179-06274

9415180600

main94151-80600

14 parts on this diagram · 3 diagrams in section
