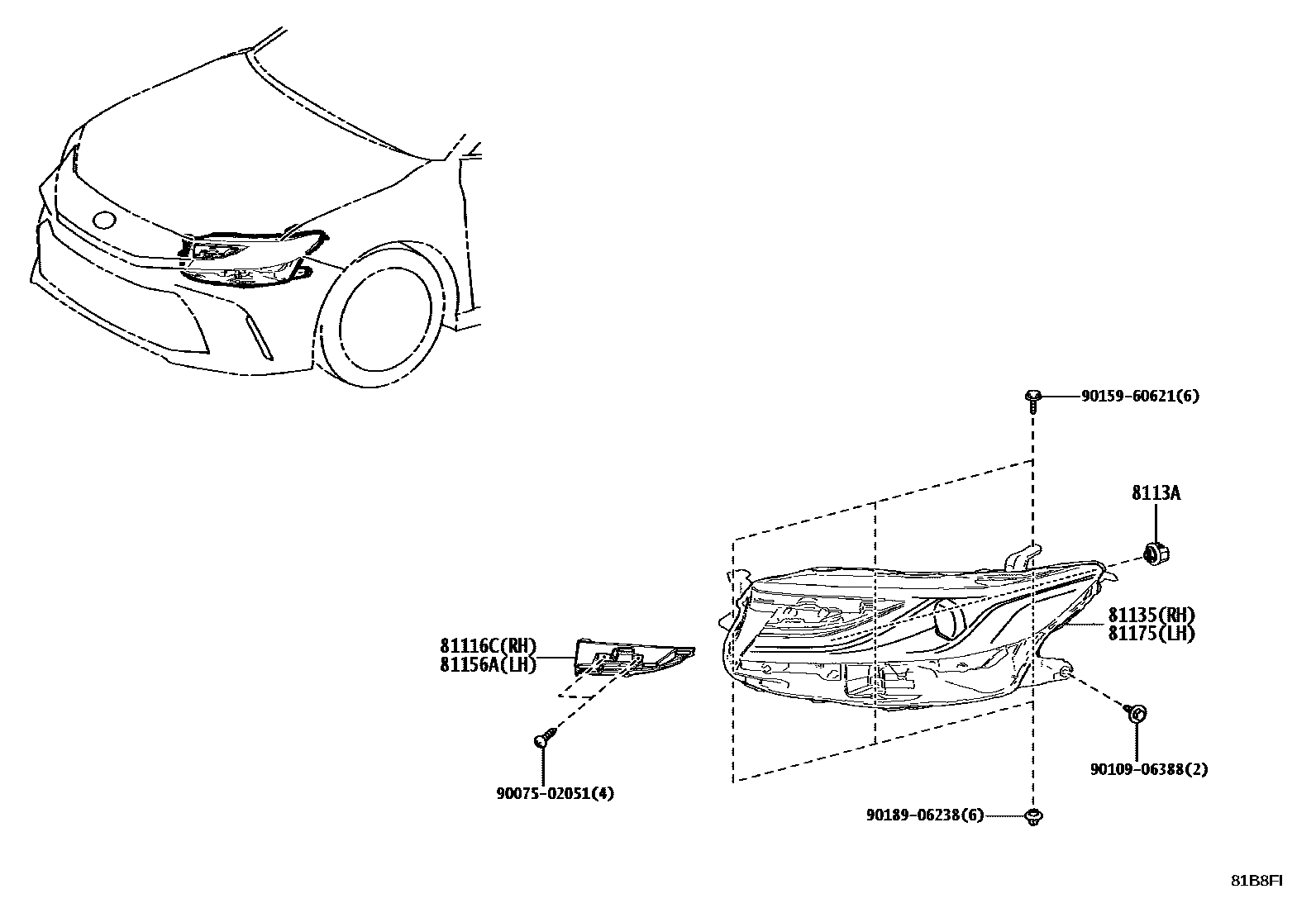

HEADLAMP

0001 1SINGLE BEAM LED 0002 1LED(TRINOCULAR FULL LED)

81116CBRACKET, HEADLAMP, RH

main81116-33N30iAXVA80,AXVH80,MXVA80202406

81135UNIT ASSY, HEADLAMP, RH

main81140-33N30iAXVH80..N..EUR;AXVA80,MXVA80..N..(EUR,TAIW)202406

main81140-33N50iAXVA80,AXVH80..D202406

VALUE PACKAGE&HEADLAMP-SINGLE BEAM LED

main81140-33N60iAXVH80..LHD..G..EUR;AXVA80,MXVA80..G..(EUR,TAIW);AXVA80,AXVH80..(G,N)..(GCC,TAIW)202406

main81140-33N70iAXVH80..RHD202406

8113ALED, HEADLAMP FRONT TURN SIGNAL

main81965-48030iAXVH80..N..EUR;AXVA80,AXVH80..D;AXVA80,MXVA80..N..(EUR,TAIW)202406

VALUE PACKAGE&HEADLAMP-SINGLE BEAM LED

81156ABRACKET, HEADLAMP, LH

main81156-33N30iAXVA80,AXVH80,MXVA80202406

81175UNIT ASSY, HEADLAMP, LH

main81070-33N30iAXVH80..N..EUR;AXVA80,MXVA80..N..(EUR,TAIW)202406

main81070-33N50iAXVA80,AXVH80..D202406

VALUE PACKAGE&HEADLAMP-SINGLE BEAM LED

main81070-33N60iAXVH80..LHD..G..EUR;AXVA80,MXVA80..G..(EUR,TAIW);AXVA80,AXVH80..(G,N)..(GCC,TAIW)202406

main81070-33N70iAXVH80..RHD202406

9007502051

main90075-02051

9010906388

main90109-06388

9015960621

main90159-60621

9018906238

main90189-06238

9 parts on this diagram · 2 diagrams in section
