FRONT SEAT & SEAT TRACK

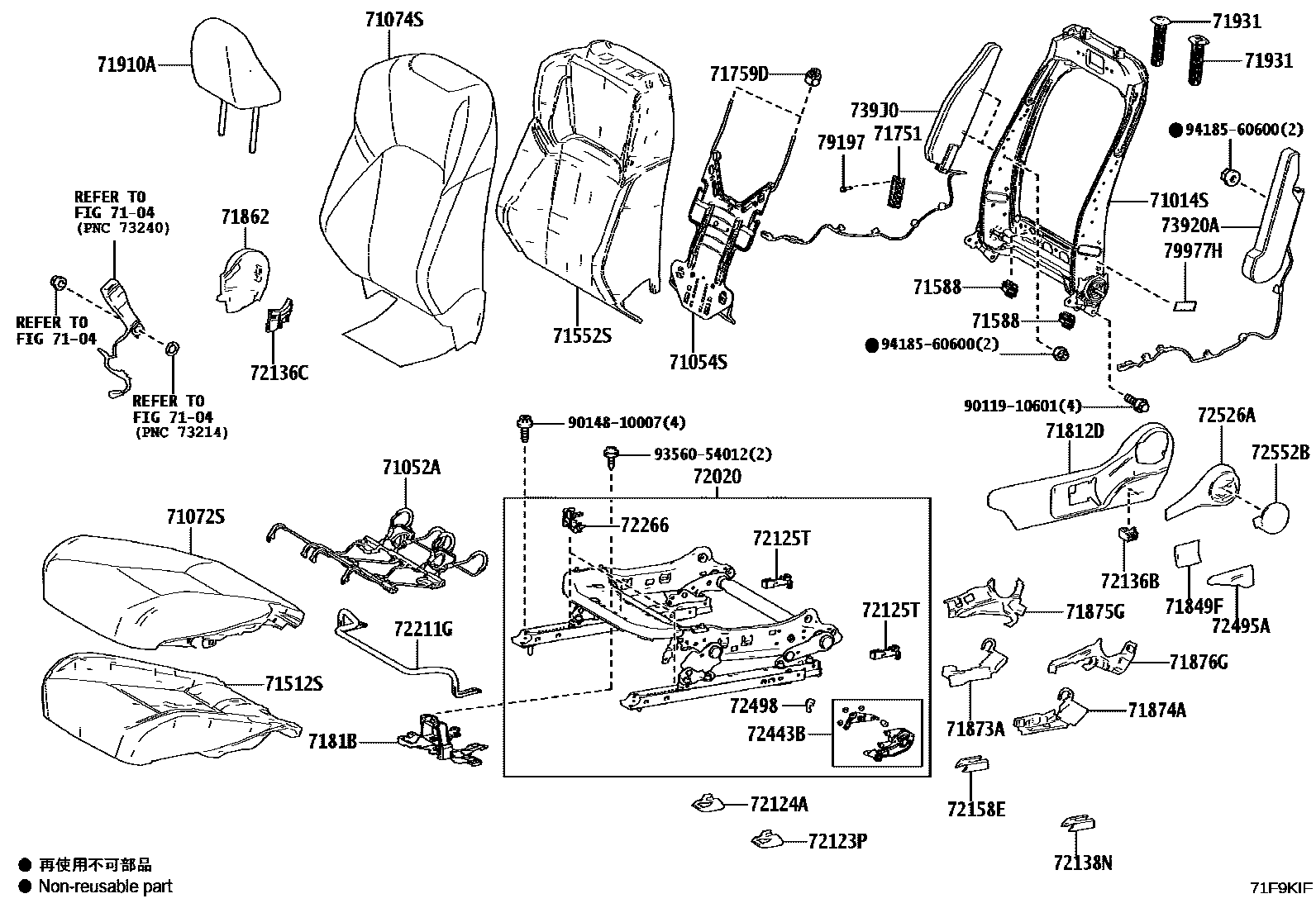

Parts diagram
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71014-33570i202406
main71014-33580i202406
main71014-33590i202406
main71014-33610i202406
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT)
7104
71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH
main71051-33070i202406
71054SSPRING SUB-ASSY, FRONT SEATBACK, LH
main71053-47050i202406
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-33M30-C2i202406
BLACK MELANGE,TRIM2#
main71072-33M40-C2i202406
BLACK,TRIM2#
main71072-33M40-E1i202406
NEUTRAL BEIGE,TRIM4#
main71072-33M80-C4i202406
BLACK,TRIM2#
main71072-33U70-C4i202406
BLACK,TRIM2#
main71072-33U70-C4i202406
HEATER PACKAGE,BLACK,TRIM2#
main71072-33U80-A2i202406
FROMAGE,TRIM0#
main71072-33U80-C3i202406
BLACK,TRIM2#
main71072-33U80-E2i202406
OCHER,TRIM4#
main71072-33U90-A2i202406
FROMAGE,TRIM0#
main71072-33U90-A2i202406
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT),FROMAGE,TRIM0#
main71072-33U90-C3i202406
BLACK,TRIM2#
main71072-33U90-C3i202406
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT),BLACK,TRIM2#
main71072-33U90-E2i202406
OCHER,TRIM4#
main71072-33U90-E2i202406
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT),OCHER,TRIM4#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-33U20-C5i202406
BLACK,TRIM2#
main71074-33U20-E4i202406
NEUTRAL BEIGE,TRIM4#
main71074-33U30-C5i202406
BLACK,TRIM2#
main71074-33U30-E4i202406
NEUTRAL BEIGE,TRIM4#
main71074-33U60-C7i202406
BLACK,TRIM2#
main71074-33U60-C7i202406
HEATER PACKAGE,BLACK,TRIM2#
main71074-33U70-A6i202406
FROMAGE,TRIM0#
main71074-33U70-C6i202406
BLACK,TRIM2#
main71074-33U70-E4i202406
OCHER,TRIM4#
main71074-33U80-A6i202406
FROMAGE,TRIM0#
main71074-33U80-C6i202406
BLACK,TRIM2#
main71074-33U80-E4i202406
OCHER,TRIM4#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71502-33280i202406
main71512-33460i202406
main71512-33520i202406
main71512-33530i202406
main79016-33010i202406
main79016-33020i202406
main79016-33030i202406
main79016-33040i202406
UPPER GRADE PACKAGE
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-33420i202406
main71552-33430i202406
main71552-33440i202406
main71552-33450i202406
main79018-33010i202406
main79018-33020i202406
main79018-33030i202406
71588PROTECTOR, FRONT SEATBACK EDGE, NO.2
main71587-47010i202406
71751HANGER, SEAT COVER
main71751-47050i202406
71759DHOOK, FRONT SEATBACK, NO.2
main71759-50040i202406
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-33490-C0i202406
BLACK,TRIM2#
main71812-33510-C0i202406
BLACK,TRIM2#
main71812-33520-C0i202406
BLACK,TRIM0#,2#,4#
main71812-33530-C0i202406
BLACK,TRIM2#,4#
main71812-33530-C0i202406
BLACK,TRIM0#,2#,4#
main71812-33530-C0i202406
BLACK,TRIM2#
main71812-33530-C0i202406
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT),BLACK,TRIM0#,2#,4#
7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH
main7181B-33020i202406
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT)
main7181B-47010i202406
71849FCAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT)
main71849-33010-C0i202406
BLACK,TRIM2#
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-33190-C0i202406
BLACK,TRIM0#,2#,4#
main71862-33190-C0i202406
BLACK,TRIM2#
main71862-33200-C0i202406
BLACK,TRIM2#,4#
main71862-33200-C0i202406
BLACK,TRIM0#,2#,4#
main71862-33200-C0i202406
BLACK,TRIM2#
main71862-33200-C0i202406
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT),BLACK,TRIM0#,2#,4#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-33160i202406
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT)
71873ASHIELD, FRONT SEAT CUSHION, LOWER
main71874-33150i202406
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT)
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71873-33170i202406
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT)
71874ASHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-33140i202406
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT)
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
main71875-33080-C0i202406
BLACK,TRIM0#,2#,4#
main71875-33080-C0i202406
BLACK,TRIM2#
main71875-33100-C0i202406
BLACK,TRIM2#,4#
main71875-33100-C0i202406
BLACK,TRIM0#,2#,4#
main71875-33100-C0i202406
BLACK,TRIM2#
main71875-33100-C0i202406
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT),BLACK,TRIM0#,2#,4#
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
main71876-33080-C0i202406
BLACK,TRIM0#,2#,4#
main71876-33080-C0i202406
BLACK,TRIM2#
main71876-33100-C0i202406
BLACK,TRIM2#,4#
main71876-33100-C0i202406
BLACK,TRIM0#,2#,4#
main71876-33100-C0i202406
BLACK,TRIM2#
main71876-33100-C0i202406
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT),BLACK,TRIM0#,2#,4#
71910AHEADREST ASSY, FRONT SEAT
main71910-33D70-C3i202406
BLACK MELANGE,TRIM2#
main71910-33D70-E2i202406
NEUTRAL BEIGE MELANGE,TRIM4#
main71910-33E30-A2i202406
FROMAGE,TRIM0#
main71910-33E30-C2i202406
BLACK,TRIM2#
main71910-33E30-C2i202406
HEATER PACKAGE,BLACK,TRIM2#
main71910-33E30-E3i202406
OCHER,TRIM4#
main71910-33E40-C0i202406
BLACK,TRIM2#
71931SUPPORT, FRONT SEAT HEADREST
main71930-47050-A0i202406
W(LOCK),FROMAGE,TRIM0#
main71930-47050-C5i202406
W(LOCK),BLACK,TRIM2#,4#
main71930-47050-C5i202406
W(LOCK),BLACK,TRIM2#
main71930-47050-E0i202406
W(LOCK),NEUTRAL BEIGE,TRIM4#
main71931-47030-A0i202406
W/O(LOCK),FROMAGE,TRIM0#
main71931-47030-C4i202406
W/O(LOCK),BLACK,TRIM2#,4#
main71931-47030-C4i202406
W/O(LOCK),BLACK,TRIM2#
main71931-47030-E0i202406
W/O(LOCK),NEUTRAL BEIGE,TRIM4#
72020ADJUSTER ASSY, FRONT SEAT, LH
main72020-33550i202406
main72020-33580i202406
main72020-33590i202406
main72020-33600i202406
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT)
main72020-33610i202406
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT)
72123PCOVER, SEAT TRACK BRACKET, OUTER FRONT, NO.2
main72123-33110i202406
VALUE PACKAGE
main72123-47060i202406
72124ACOVER, SEAT TRACK BRACKET, INNER FRONT LH
main72123-47060i202406
72125TCOVER, FRONT SEAT TRACK, UPPER REAR LH
main72125-47010i202406
main72125-47020i202406
sub72125-47010
72136SPACER, SEAT TRACK, LOWER NO.1
main72136-33360i202406
VALUE PACKAGE&FRONT SEAT ADJUSTER-DRIVER & PASSENGER(MANUAL SEAT)
main72136-33380i202406
72136BSPACER, SEAT TRACK, LOWER NO.3
main72136-33410i202406
main72136-33440i202406
72136CSPACER, SEAT TRACK, LOWER NO.4
main72136-33420i202406
main72136-33450i202406
72138NCOVER, SEAT TRACK BRACKET, OUTER REAR LH
main72137-47060i202406
72158ECOVER, SEAT TRACK BRACKET, INNER REAR LH
main72158-47080i202406
72211GHANDLE, SEAT TRACK ADJUSTING, LH
main72211-33050i202406
72266COVER, SEAT TRACK UPPER RAIL, LH
main72265-47010i202406
main72265-47020i202406
72443BGEAR, VERTICAL ADJUSTER, LH
main72443-33020i202406
72495AHANDLE, FRONT SEAT VERTICAL ADJUSTER, LH
main72495-33020-C0i202406
BLACK,TRIM2#
72498COVER, VERTICAL ADJUSTER BRACKET
main72498-33040i202406
72526AHANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-33060-C0i202406
BLACK,TRIM2#
72552BCOVER, RECLINING HINGE, LH
main72551-33010-C0i202406
BLACK,TRIM2#
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-33100i202406
739J0AIRBAG ASSY, FRONT SEAT CENTER, LH
main739J0-33010i202406
main739J0-33020i202406
79197HOOK, SEATBACK COVER
main79197-47010i202406
79977HFELT, FRONT SEATBACK, LH
main79977-33030i202406
9011910601
main90119-10601
9014810007
main90148-10007
9356054012
main93560-54012
9418560600
main94185-60600

47 parts on this diagram · 18 diagrams in section
