FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
KOREA SPEC
KYRGYZSTAN SPEC
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
KOREA SPEC
ARMENIA SPEC
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67495ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67496ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
67663DGARNISH, DOOR FRAME, RH
67664CGARNISH, DOOR FRAME, LH
67811PAD, FRONT DOOR SILENCER
67831COVER, FRONT DOOR SERVICE HOLE, RH
67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)
67832COVER, FRONT DOOR SERVICE HOLE, LH
67833DCOVER, FRONT DOOR SERVICE HOLE, NO.2 RH
67834COVER, FRONT DOOR SERVICE HOLE, NO.2 LH
67837ASEAL, FRONT DOOR VENT, RH
67838ASEAL, FRONT DOOR VENT, LH
67851DSEAL, FRONT DOOR REAR OUTSIDE, RH
67852DSEAL, FRONT DOOR REAR OUTSIDE, LH
67855BPROTECTOR, FRONT DOOR PANEL, RH
67856BPROTECTOR, FRONT DOOR PANEL, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH
67863DRETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)
67863GRETAINER, LH(FOR FRONT DOOR NO.2 WEATHERSTRIP)
67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67867GRETAINER, DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67868LRETAINER, DOOR WEATHERSTRIP, LH
67869BCLIP, FRONT DOOR WEATHERSTRIP
67869ECLIP, FRONT DOOR WEATHERSTRIP
68101GLASS SUB-ASSY, FRONT DOOR, RH
KOREA SPEC
SRI LANKA SPEC
68102GLASS SUB-ASSY, FRONT DOOR, LH
KOREA SPEC
SRI LANKA SPEC
68141CRUN, FRONT DOOR GLASS, RH
68151CRUN, FRONT DOOR GLASS, LH
68610BCHECK ASSY, FRONT DOOR, RH
68620CHECK ASSY, FRONT DOOR, LH
75975GSTRIPE, FRONT DOOR, NO.2 RH
main75975-33040supersedes 75975-33040iAXVH80..D,N;AXVA80,MXVA80;AXVH80..LHD..G..EUR;AXVH80..G..(ARL,GCC)202406
UPPER GRADE PACKAGE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM & KEY & INSIDE HANDLE & FOOT)
75976GSTRIPE, FRONT DOOR, NO.2 LH
main75976-33040supersedes 75976-33040iAXVH80..D,N;AXVA80,MXVA80;AXVH80..LHD..G..EUR;AXVH80..G..(ARL,GCC)202406
UPPER GRADE PACKAGE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM & KEY & INSIDE HANDLE & FOOT)
75985BSTRIPE, FRONT DOOR, NO.3 RH
main75985-33040supersedes 75985-33040iAXVH80..D,N;AXVA80,MXVA80;AXVH80..LHD..G..EUR;AXVH80..G..(ARL,GCC)202406
UPPER GRADE PACKAGE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM & KEY & INSIDE HANDLE & FOOT)
75986BSTRIPE, FRONT DOOR, NO.3 LH
main75986-33040supersedes 75986-33040iAXVH80..D,N;AXVA80,MXVA80;AXVH80..LHD..G..EUR;AXVH80..G..(ARL,GCC)202406
UPPER GRADE PACKAGE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM & KEY & INSIDE HANDLE & FOOT)
87963COVER, OUTER MIRROR INSTALL HOLE, RH
87964COVER, OUTER MIRROR INSTALL HOLE, LH
9010908295
main90109-08295
9011906983
main90119-06983
9015960303
main90159-60303
9016440096
main90164-40096
9018906227
main90189-06227
9033320003
main90333-20003
9046710161
main90467-10161
9095001620
main90950-01620
9095001841
main90950-01841
9095001956
main90950-01956
9095001A02
main90950-01A02
9095001A15
main90950-01A15
9415180600
main94151-80600

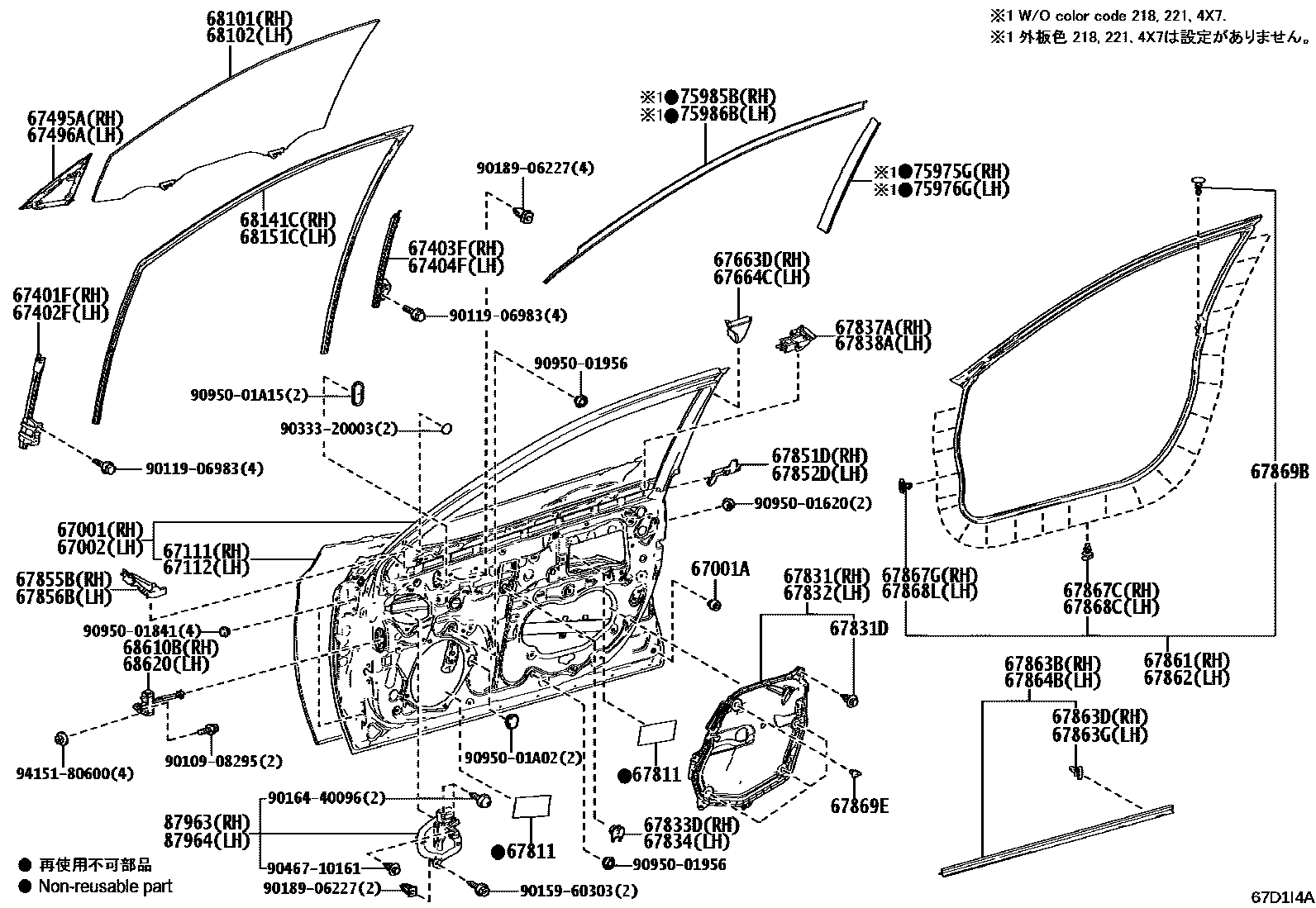

62 parts on this diagram · 2 diagrams in section
