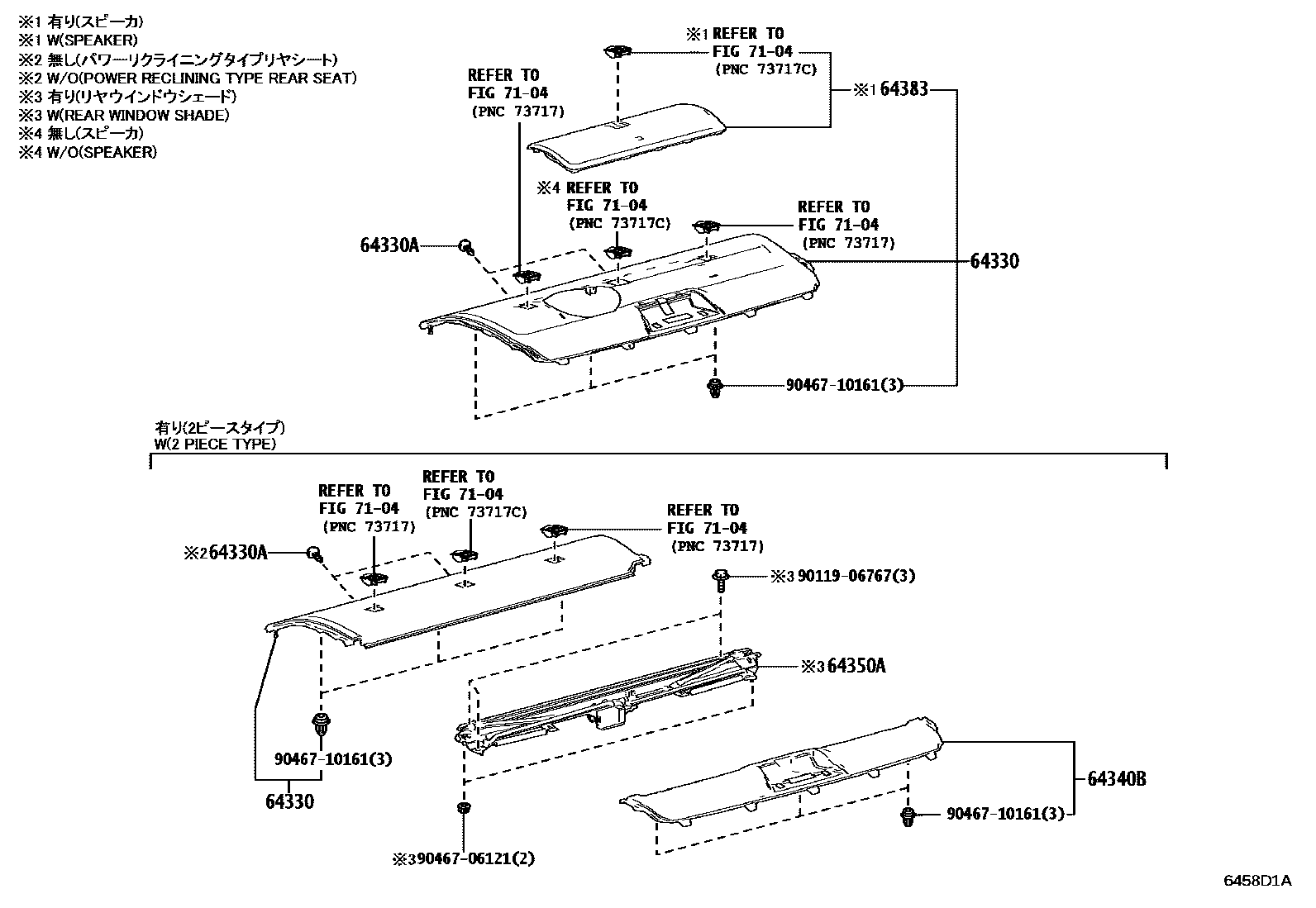

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
64330PANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#
BLACK,TRIM0#,2#,4#
KOREA SPEC,BLACK,TRIM0#,2#,4#
BLACK,TRIM2#
BLACK,TRIM0#,2#,4#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#
KOREA SPEC,BLACK,TRIM0#,2#,4#
KOREA SPEC&UPPER GRADE PACKAGE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM & KEY & INSIDE HANDLE & FOOT)&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE),BLACK,TRIM0#,2#,4#
UPPER GRADE PACKAGE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM & KEY & INSIDE HANDLE & FOOT)&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE),BLACK,TRIM0#,2#,4#
64350ASHADE ASSY, REAR WINDOW
KOREA SPEC
KOREA SPEC&UPPER GRADE PACKAGE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM & KEY & INSIDE HANDLE & FOOT)
UPPER GRADE PACKAGE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM & KEY & INSIDE HANDLE & FOOT)
ILLUMINATED ENTRY SYSTEM-WITH(ROOM & KEY)
SRI LANKA SPEC&&ILLUMINATED ENTRY SYSTEM-WITH(ROOM & KEY)
64383GRILLE, SPEAKER, REAR
BLACK,TRIM2#
7104
9011906767
main90119-06767
9046706121
main90467-06121
9046710161
main90467-10161
9 parts on this diagram · 3 diagrams in section
