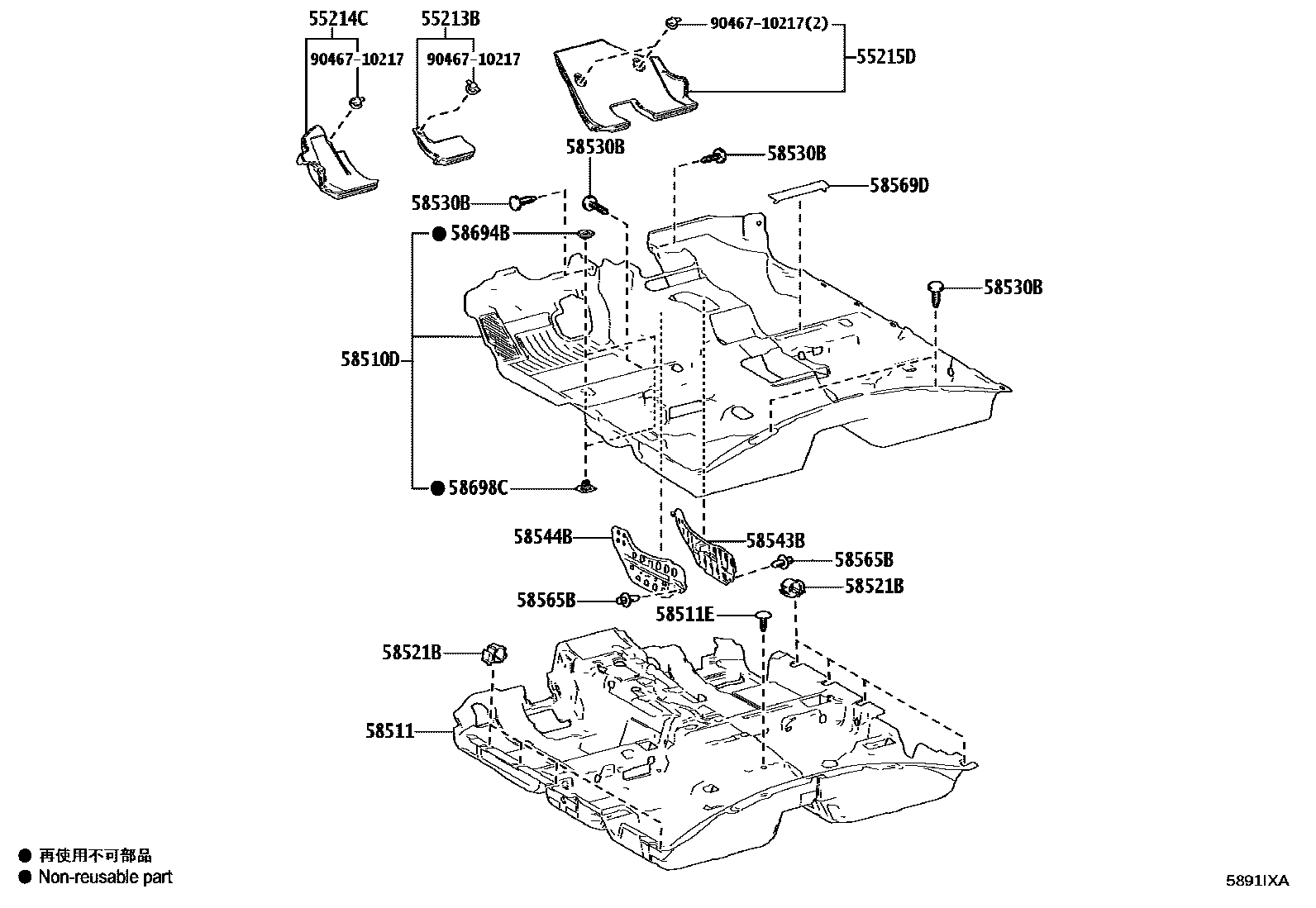

MAT & CARPET

0001 1 0002 1 0003 1

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-33220iAXVA80,AXVH80,MXVA80..LHD202406

main55213-33230iAXVH80..RHD202406

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-33110iAXVA80,AXVH80,MXVA80..LHD202406

main55214-33120iAXVH80..RHD202406

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-33040iAXVA80,AXVH80,MXVA80..LHD202406

main55215-33070iAXVH80..RHD202406

58510DCARPET ASSY, FLOOR, FRONT

main58510-33B80-C0supersedes 58510-33B70-C0iAXVH80..ARL202406

HONG KONG SPEC,BLACK,TRIM0#,2#,4#

main58510-33B90-C0supersedes 58510-33C00-C0iAXVA80..G..GCC202406

BLACK,TRIM0#,2#,4#

main58510-33C10-C0iAXVH80..LHD..G..EUR202406

UKRAINE SPEC,BLACK,TRIM0#,2#,4#

main58510-33C20-C0iAXVH80..LHD..G..EUR202406

BLACK,TRIM0#,2#,4#

58511MAT, FLOOR, FRONT

main58511-33110iAXVA80,MXVA80202406

main58511-33120iAXVH80202406

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-07042-C4iAXVA80,AXVH80,MXVA80202406

BLACK

sub90467-06175

58521BHOOK, FLOOR CARPET

main58521-33060×8iAXVA80,AXVH80,MXVA80202406

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07161-C1×2iAXVH80..RHD202406

BLACK

58543BBRACKET, FLOOR CARPET, RH

main58543-33110iAXVA80,AXVH80,MXVA80..LHD202406

main58543-33120iAXVH80..RHD202406

58544BBRACKET, FLOOR CARPET, LH

main58544-33110iAXVA80,AXVH80,MXVA80..LHD202406

main58544-33120iAXVH80..RHD202406

58565BCLIP

main90467-07076-C7×2iAXVA80,AXVH80,MXVA80202406

BLACK

sub90467-07041

sub90467-A0016

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-33010-C0iAXVA80,AXVH80..(D,N)..(EUR,GCC)202406

BLACK,TRIM0#,2#,4#

58694BPLATE, MAT SET, UPPER

main58694-33010×2iAXVA80,AXVH80,MXVA80202406

58698CPLATE, MAT SET, LOWER

main58698-33010×2iAXVA80,AXVH80,MXVA80202406

9046710217

main90467-10217

15 parts on this diagram · 3 diagrams in section
