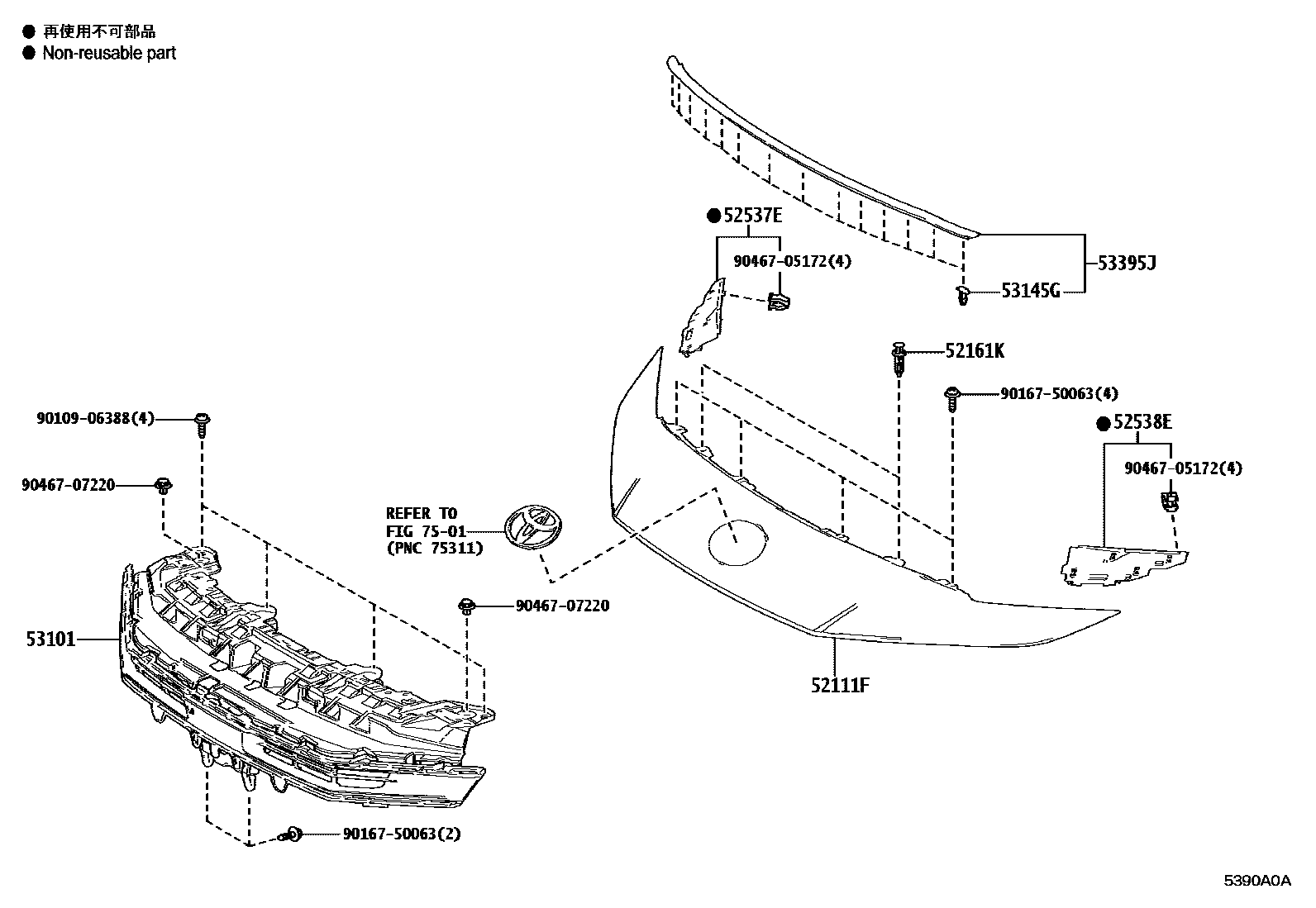

RADIATOR GRILLE

52111FBAR, FRONT BUMPER, CENTER

main52111-33901iAXVA80,AXVH80,MXVA80202406

52161KPIECE, FRONT BUMPER

main52161-16010×2iAXVA80,AXVH80,MXVA80202406

sub52161-0K040

52537ERETAINER, FRONT BUMPER END, RH

main52537-33040iAXVA80,AXVH80,MXVA80202406

52538ERETAINER, FRONT BUMPER END, LH

main52538-33040iAXVA80,AXVH80,MXVA80202406

53101GRILLE SUB-ASSY, RADIATOR

main53101-33A70iAXVA80,AXVH80,MXVA80..LHD..(D,N)202406

NO PAINT REQ.

main53101-33A80iAXVH80..N..ARL202406

NO PAINT REQ.

main53101-33B00iAXVA80,MXVA80..G;AXVH80..LHD..G..(EUR,GCC)202406

NO PAINT REQ.

main53101-33B10supersedes 53101-33B10iAXVA80..G..EUR;AXVH80..LHD..G..(EUR,GCC)202406

NO PAINT REQ.

53145GCLIP, RADIATOR GRILLE

main53145-60030×14iAXVA80,AXVH80,MXVA80202406

53395JSEAL, HOOD TO FRONT END PANEL

main53395-33080iAXVA80,AXVH80,MXVA80202406

7501

9010906388

main90109-06388

9016750063

main90167-50063

9046705172

main90467-05172

9046707220

main90467-07220

12 parts on this diagram · 1 diagram in section
