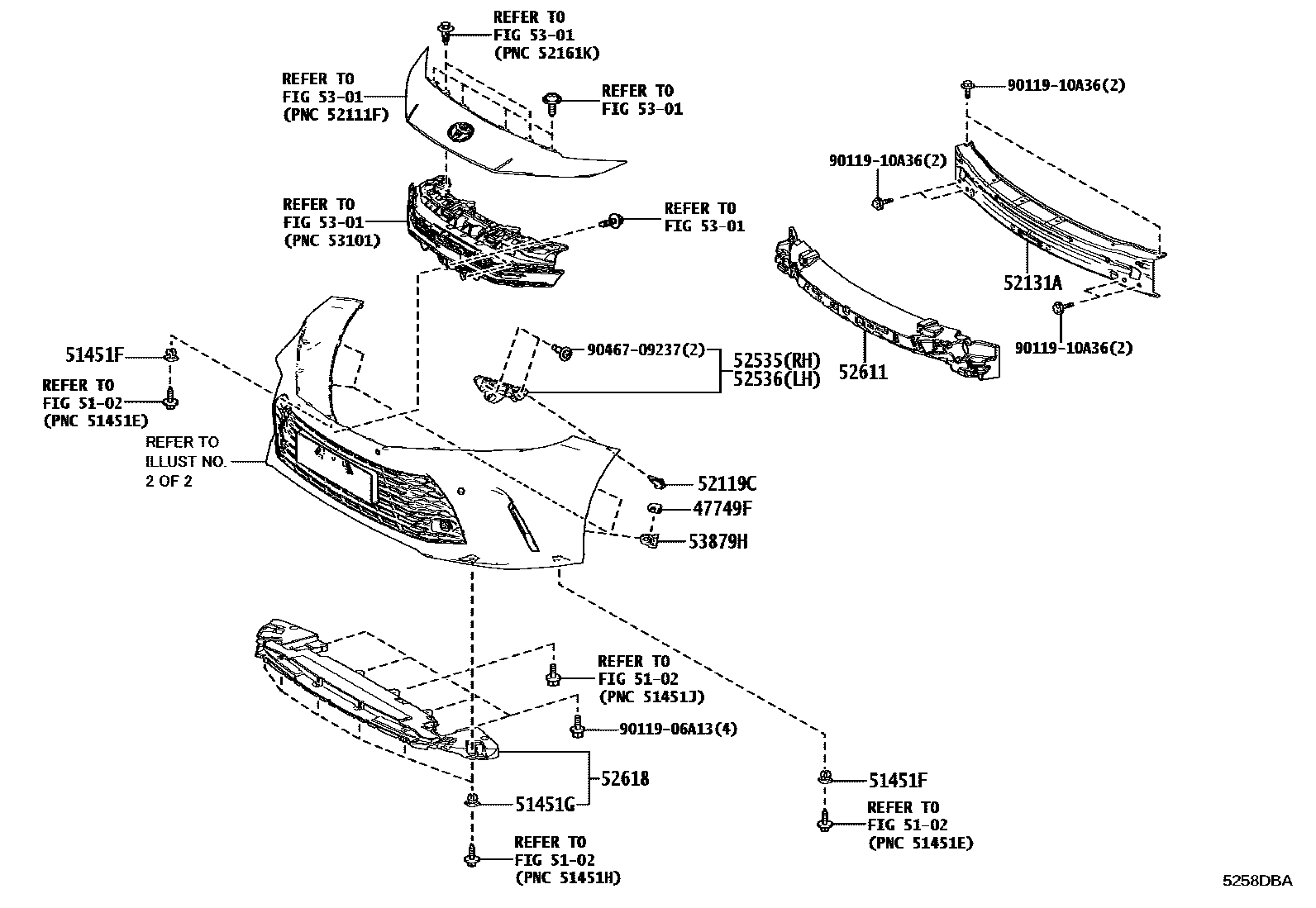

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

47749FCLIP, PIN HOLD

main47749-33030iAXVA80,AXVH80,MXVA80202406

5102

51451FGROMMET, NO.1

main90189-06237iAXVA80,AXVH80,MXVA80202406

51451GGROMMET, NO.2

main90189-06237iAXVA80,AXVH80,MXVA80202406

52119CCLIP, FRONT BUMPER COVER

main90467-05170iAXVA80,AXVH80,MXVA80202406

52131AREINFORCEMENT, FRONT BUMPER

main52131-33181iAXVA80,MXVA80202406

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-33070iAXVA80,AXVH80,MXVA80202406

NO PAINT REQ.

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-33070iAXVA80,AXVH80,MXVA80202406

NO PAINT REQ.

52611ABSORBER, FRONT BUMPER ENERGY

main52611-33390iAXVA80,AXVH80,MXVA80202406

52618ABSORBER, FRONT BUMPER, LOWER

main52618-33130iAXVA80,AXVH80,MXVA80202406

5301

53879HRETAINER, FRONT FENDER LINER

main53879-33030iAXVA80,AXVH80,MXVA80202406

9011906A13

main90119-06A13

9011910A36

main90119-10A36

9046709237

main90467-09237

15 parts on this diagram · 3 diagrams in section
