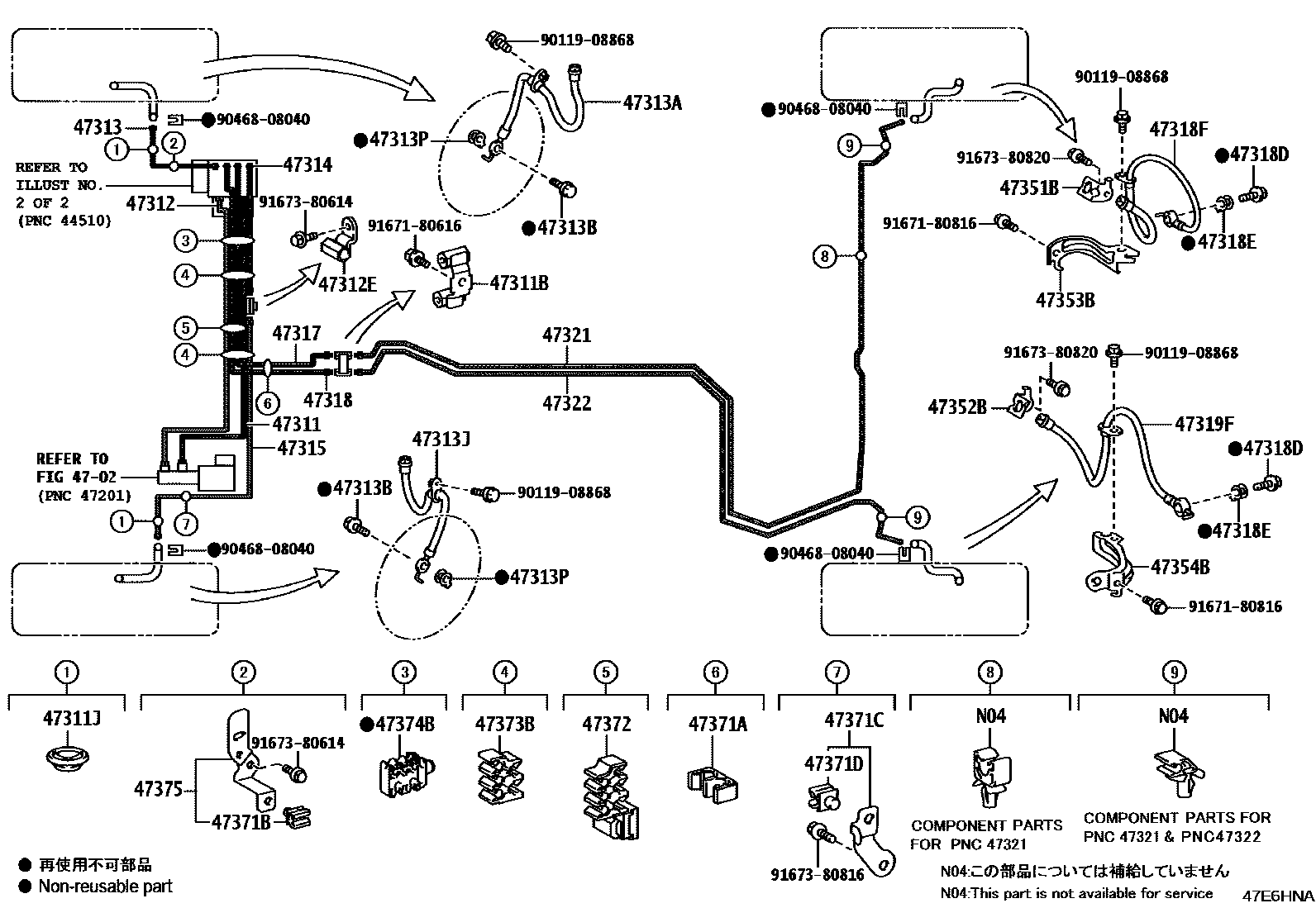

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE TUBE 0004 1BRAKE ACTUATOR 0005 1BRAKE ACTUATOR 0006 1BRAKE ACTUATOR

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-33360iAXVH80..RHD202406

main47311-33390iAXVA80,MXVA80202406

main47311-33460iAXVH80..LHD202406

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10285iAXVA80,AXVH80,MXVA80202406

47311JGROMMET, NO.1(FOR FRONT BRAKE TUBE)

main90480-25037iAXVA80,AXVH80,MXVA80202406

47312TUBE, FRONT BRAKE, NO.2

main47312-33360iAXVH80..RHD202406

main47312-33370iAXVA80,MXVA80202406

main47312-33380iAXVH80..LHD202406

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10272iAXVA80,MXVA80202406

47313TUBE, FRONT BRAKE, NO.3

main47313-33410iAXVH80..RHD202406

main47313-33420iAXVA80,AXVH80,MXVA80..LHD202406

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02K85iAXVA80,AXVH80,MXVA80202406

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iAXVA80,AXVH80,MXVA80202406

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02K86iAXVA80,AXVH80,MXVA80202406

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021iAXVA80,AXVH80,MXVA80202406

47314TUBE, FRONT BRAKE, NO.4

main47314-33310iAXVA80,MXVA80202406

main47314-33380iAXVH80..LHD202406

47315TUBE, FRONT BRAKE, NO.5

main47315-33370iAXVH80..RHD202406

main47315-33380iAXVA80,MXVA80202406

47317TUBE, FRONT BRAKE, NO.7

main47317-33490iAXVH80..RHD202406

main47317-33500iAXVA80,MXVA80202406

main47317-33510iAXVH80..LHD202406

47318TUBE, FRONT BRAKE, NO.8

main47318-33210iAXVH80..RHD202406

main47318-33220iAXVA80,MXVA80202406

main47318-33230iAXVH80..LHD202406

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iAXVA80,AXVH80,MXVA80202406

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021iAXVA80,AXVH80,MXVA80202406

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02K87iAXVA80,AXVH80,MXVA80202406

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02K88iAXVA80,AXVH80,MXVA80202406

47321TUBE, REAR BRAKE, NO.1

main47321-33310iAXVA80,MXVA80202406

main47321-33320iAXVH80202406

47322TUBE, REAR BRAKE, NO.2

main47322-33280iAXVA80,MXVA80202406

main47322-33290iAXVH80202406

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-47030iAXVA80,AXVH80,MXVA80202406

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-47030iAXVA80,AXVH80,MXVA80202406

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47351-10110iAXVA80,AXVH80,MXVA80202406

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47352-10060iAXVA80,AXVH80,MXVA80202406

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00904iAXVA80,AXVH80,MXVA80202406

47371BCLAMP, BRAKE TUBE, NO.6

main90949-01D56iAXVA80,AXVH80,MXVA80202406

47371CCLAMP, BRAKE TUBE, NO.7

main47371-33350iAXVA80,MXVA80202406

47371DCLAMP, BRAKE TUBE, NO.8

main90949-01D56iAXVA80,MXVA80202406

47372CLAMP, BRAKE TUBE, NO.2

main90949-01E31iAXVA80,MXVA80202406

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01E40iAXVH80..RHD202406

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01E79iAXVA80,AXVH80,MXVA80202406

47375CLAMP, BRAKE TUBE, NO.5

main47371-33340iAXVA80,AXVH80,MXVA80202406

9011908868

main90119-08868

9046808040

main90468-08040

9167180616

main91671-80616

9167180816

main91671-80816

9167380614

main91673-80614

9167380816

main91673-80816

9167380820

main91673-80820

40 parts on this diagram · 6 diagrams in section
