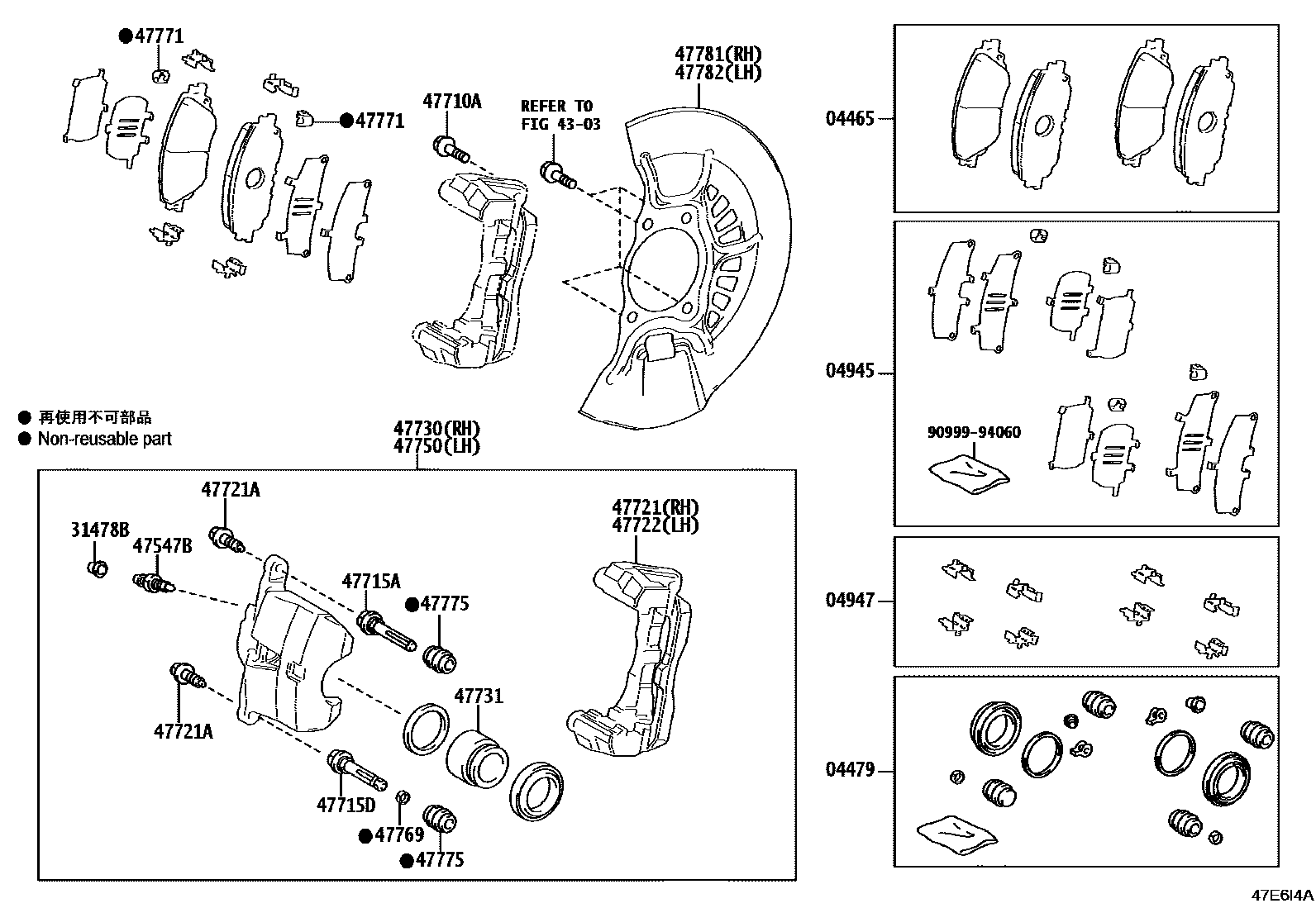

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-33510iAXVA80,AXVH80,MXVA80¥9,600202406

MARK NBK D6504H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-33160iAXVA80,AXVH80,MXVA80¥2,200202406

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-42100iAXVA80,AXVH80,MXVA80¥1,850202406

04947FITTING KIT, DISC BRAKE, FRONT

main04947-33281iAXVA80,AXVH80,MXVA80¥2,080202406

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAXVA80,AXVH80,MXVA80¥160202406

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iAXVA80,AXVH80,MXVA80¥200202406

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iAXVA80,AXVH80,MXVA80¥160202406

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52190iAXVA80,AXVH80,MXVA80¥360202406

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-12A10iAXVA80,AXVH80,MXVA80¥360202406

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-33382iAXVA80,AXVH80,MXVA80¥6,400202406

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iAXVA80,AXVH80,MXVA80¥90202406

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-33312iAXVA80,AXVH80,MXVA80¥6,400202406

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-33381iAXVA80,AXVH80,MXVA80¥29,700202406

47731PISTON, FRONT DISC BRAKE

main47731-12A10iAXVA80,AXVH80,MXVA80¥1,250202406

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-33311iAXVA80,AXVH80,MXVA80¥29,700202406

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iAXVA80,AXVH80,MXVA80¥50202406

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-33380iAXVA80,AXVH80,MXVA80¥200202406

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-52190iAXVA80,AXVH80,MXVA80¥210202406

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-33060iAXVA80,AXVH80,MXVA80¥1,050202406

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-33060iAXVA80,AXVH80,MXVA80¥1,050202406

9099994060

main90999-94060

22 parts on this diagram · 1 diagram in section
