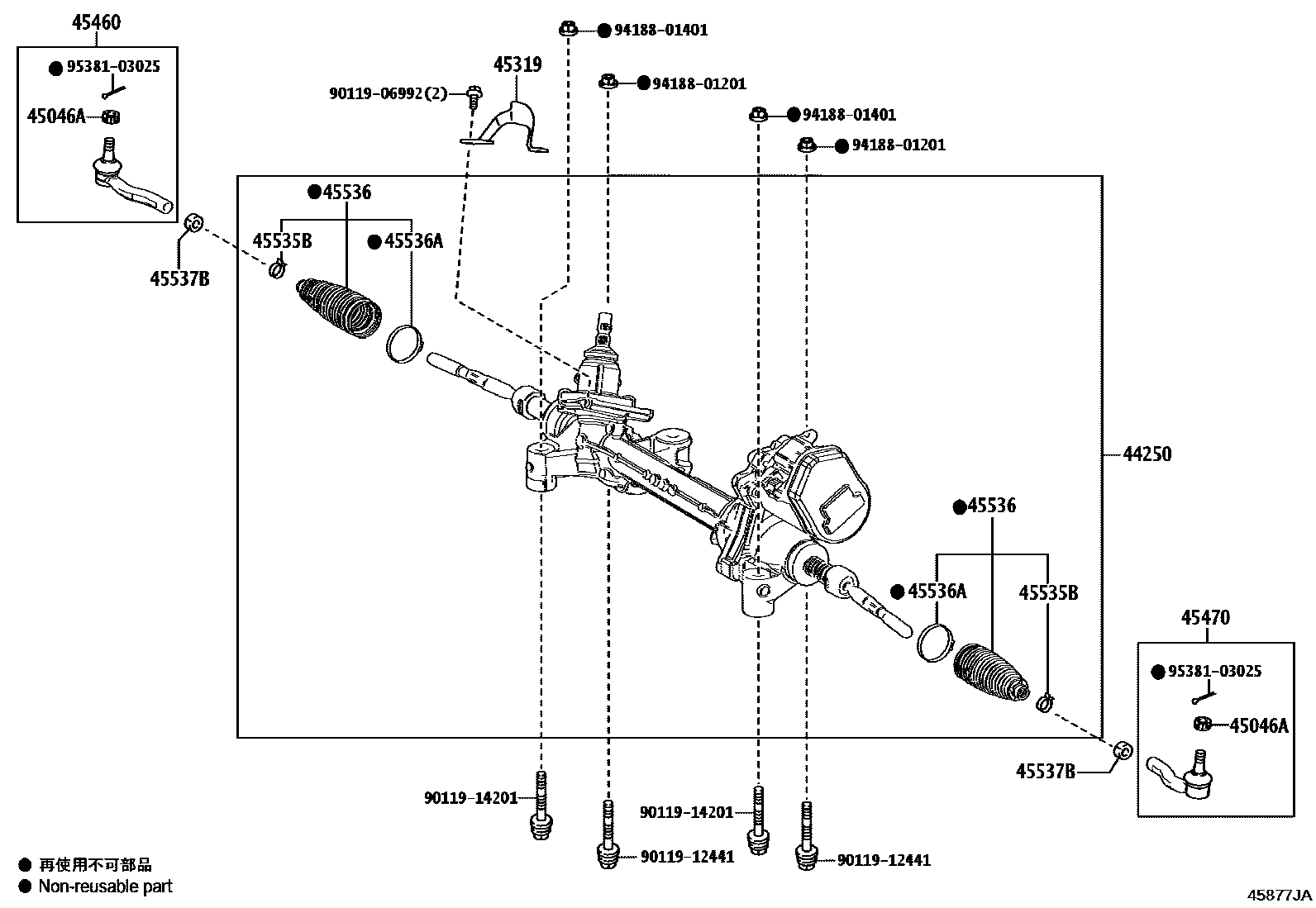

FRONT STEERING GEAR & LINK

0001 1 0002 1

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-33A00iAXVA80,AXVH80,MXVA80..LHD202406

*614

main44250-33A80iAXVH80..RHD202406

*614

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iAXVA80,AXVH80,MXVA80202406

45319INSULATOR, STEERING GEAR HEAT

main45319-33010iAXVA80,AXVH80,MXVA80..LHD202406

main45319-33030iAXVH80..RHD202406

45460ROD ASSY, TIE, RH

main45460-80008iAXVA80,AXVH80,MXVA80202406

45470ROD ASSY, TIE, LH

main45470-39365iAXVA80,AXVH80,MXVA80202406

45535BCLIP(FOR STEERING RACK BOOT)

main45538-06030iAXVA80,AXVH80,MXVA80202406

45536BOOT, STEERING RACK, NO.2

main45535-69065iAXVA80,AXVH80,MXVA80202406

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90467-19021iAXVA80,AXVH80,MXVA80202406

45537BNUT, RACK END LOCK

main90178-16001iAXVA80,AXVH80,MXVA80202406

9011906992

main90119-06992

9011912441

main90119-12441

9011914201

main90119-14201

9418801201

main94188-01201

9418801401

main94188-01401

9538103025

main95381-03025

15 parts on this diagram · 2 diagrams in section
