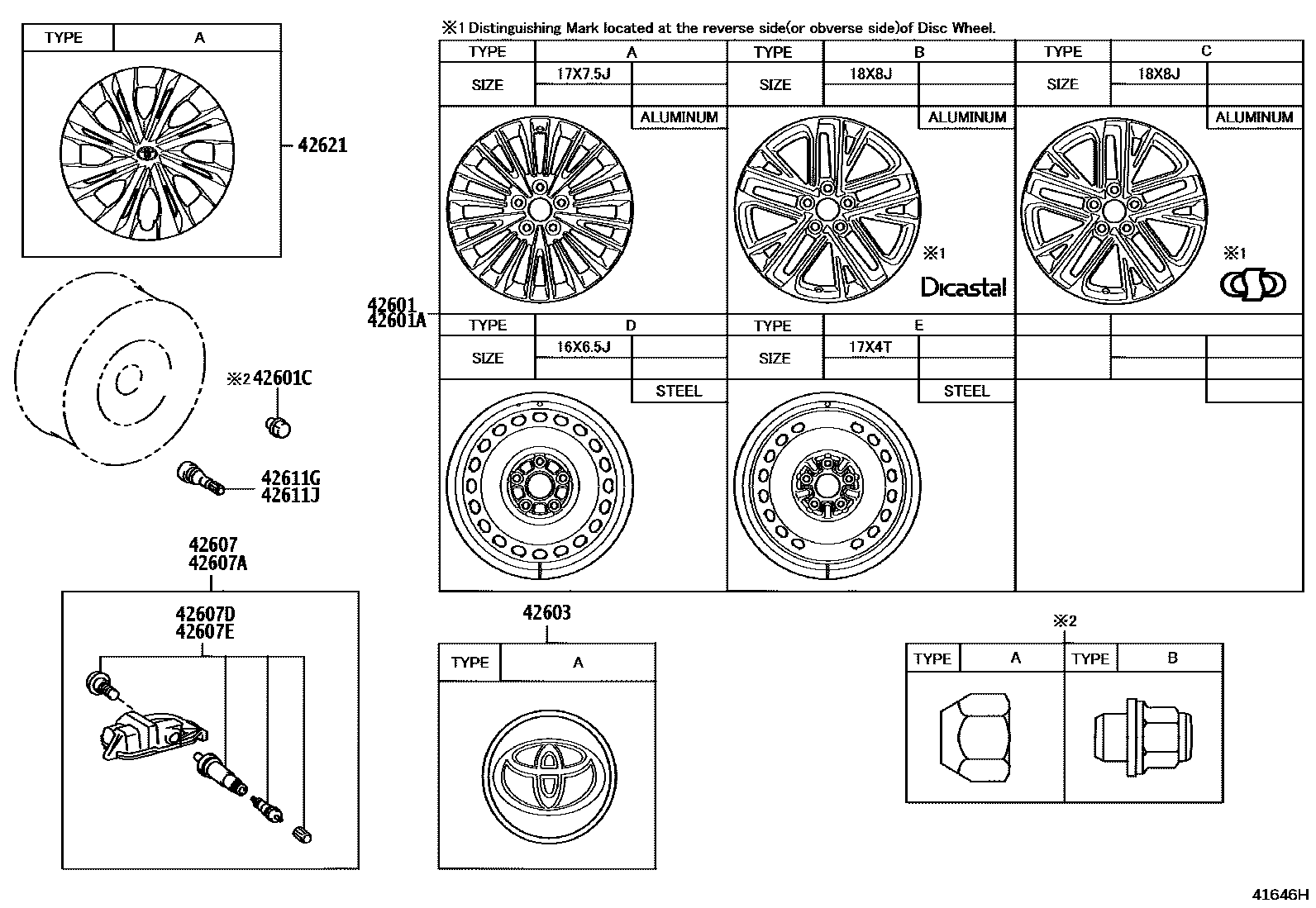

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
16X6.5J, #,TYPE D:REFER ILLUST.
17X7.5J,TYPE A:REFER ILLUST.
17X7.5J,KOREA SPEC&TIRE & DISC WHEEL-215/55R17 7.5J IS45 ALUMINUM ALL SEASON,TYPEA:REFER ILLUST.
17X7.5J,TIRE & DISC WHEEL-215/55R17 7.5J IS45 ALUMINUM SUMMER,TYPE A:REFER ILLUST.
18X8J,TYPE C:REFER ILLUST.
18X8J,KOREA SPEC&TIRE & DISC WHEEL-235/45R18 8J IS50 ALUMINUM ALL SEASON,TYPE C:REFER ILLUST.
18X8J,TIRE & DISC WHEEL-235/45R18 8J IS50 ALUMINUM SUMMER,TYPE C:REFER ILLUST.
18X8J,TYPE B:REFER ILLUST.
18X8J,KOREA SPEC&TIRE & DISC WHEEL-235/45R18 8J IS50 ALUMINUM ALL SEASON,TYPE B:REFER ILLUST.
18X8J,TIRE & DISC WHEEL-235/45R18 8J IS50 ALUMINUM SUMMER,TYPE B:REFER ILLUST.
17X7.5J,TYPE A:REFER ILLUST.
17X7.5J,TIRE & DISC WHEEL-215/55R17 7.5J IS45 ALUMINUM SUMMER,TYPE A:REFER ILLUST.
18X8J,TYPE C:REFER ILLUST.
18X8J,PAPUA NEW GUINEA, FIJI SPEC,TYPE C:REFER ILLUST.
18X8J,SRI LANKA SPEC,TYPE C:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
16X6.5J, #,TYPE D:REFER ILLUST.
17X4T,TYPE E:REFER ILLUST.
17X7.5J,TYPE A:REFER ILLUST.
18X8J,TYPE C:REFER ILLUST.
18X8J,TIRE & DISC WHEEL-235/45R18 8J IS50 ALUMINUM SUMMER,TYPE C:REFER ILLUST.
18X8J,TYPE B:REFER ILLUST.
18X8J,TIRE & DISC WHEEL-235/45R18 8J IS50 ALUMINUM SUMMER,TYPE B:REFER ILLUST.
17X7.5J,TYPE A:REFER ILLUST.
17X7.5J,TIRE & DISC WHEEL-215/55R17 7.5J IS45 ALUMINUM SUMMER,TYPE A:REFER ILLUST.
17X7.5J,TIRE & DISC WHEEL-215/55R17 7.5J IS45 ALUMINUM SUMMER&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST.
17X7.5J,SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST.
18X8J,TYPE C:REFER ILLUST.
18X8J,PAPUA NEW GUINEA, FIJI SPEC,TYPE C:REFER ILLUST.
18X8J,SRI LANKA SPEC,TYPE C:REFER ILLUST.
18X8J,SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
42603ORNAMENT SUB-ASSY, WHEEL HUB
*ALU,TYPE A:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
PAPUA NEW GUINEA, FIJI SPEC
TIRE & DISC WHEEL-215/55R17 7.5J IS45 ALUMINUM SUMMER
SRI LANKA SPEC
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
PAPUA NEW GUINEA, FIJI SPEC
TIRE & DISC WHEEL-215/55R17 7.5J IS45 ALUMINUM SUMMER
SRI LANKA SPEC
TIRE & DISC WHEEL-215/55R17 7.5J IS45 ALUMINUM SUMMER&SPARE TIRE-GROUND TIRE
SPARE TIRE-GROUND TIRE
42607DVALVE, TIRE PRESSURE MONITOR
PAPUA NEW GUINEA, FIJI SPEC
TIRE & DISC WHEEL-215/55R17 7.5J IS45 ALUMINUM SUMMER
SRI LANKA SPEC
42607EVALVE, TIRE PRESSURE MONITOR (FOR SPARE)
PAPUA NEW GUINEA, FIJI SPEC
TIRE & DISC WHEEL-215/55R17 7.5J IS45 ALUMINUM SUMMER
SRI LANKA SPEC
TIRE & DISC WHEEL-215/55R17 7.5J IS45 ALUMINUM SUMMER&SPARE TIRE-GROUND TIRE
SPARE TIRE-GROUND TIRE
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42621CAP, WHEEL
TYPE A:REFER ILLUST.
11 parts on this diagram · 2 diagrams in section
