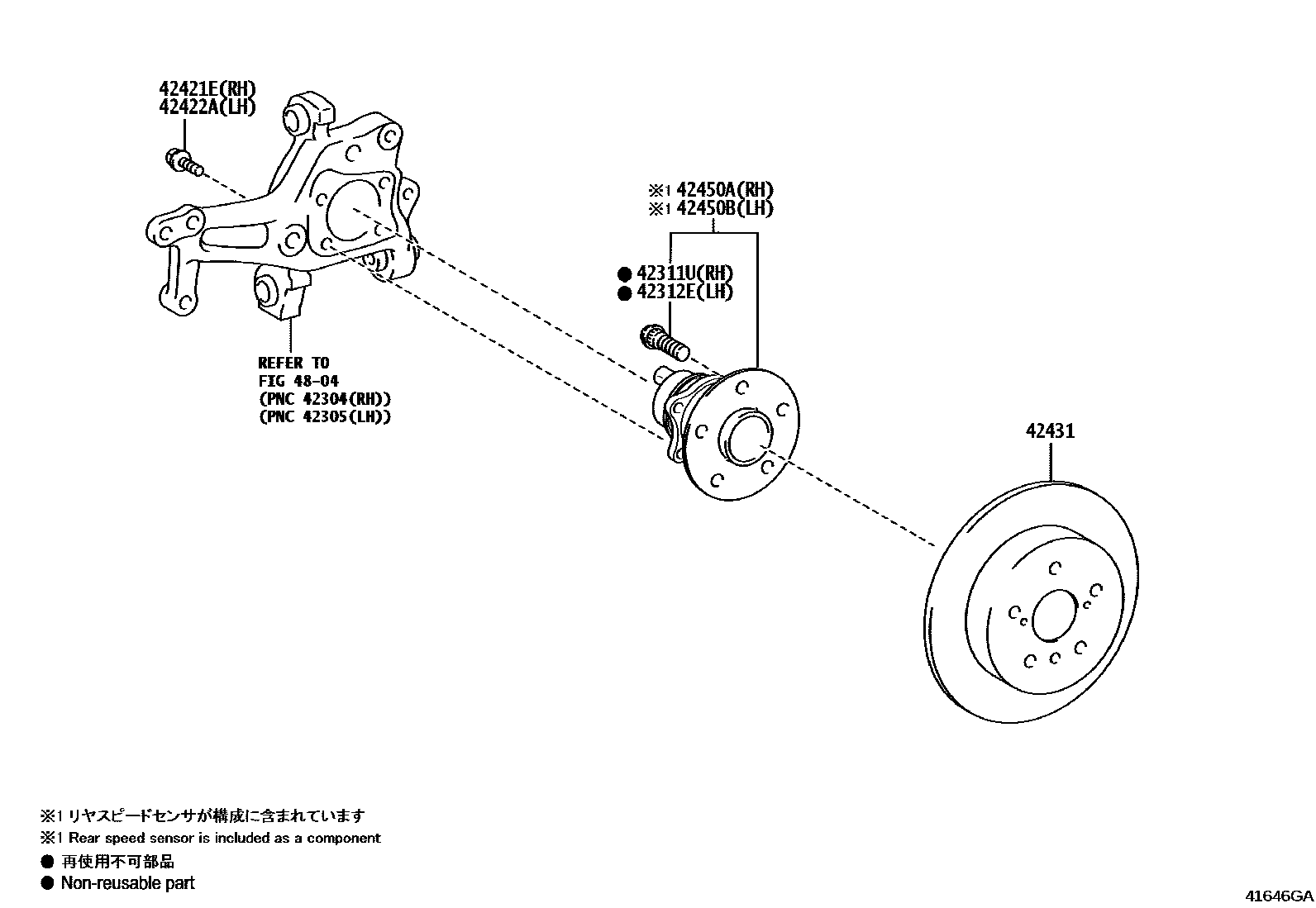

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iAXVA80,AXVH80,MXVA80202406

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iAXVA80,AXVH80,MXVA80202406

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12406iAXVA80,AXVH80,MXVA80202406

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12406iAXVA80,AXVH80,MXVA80202406

42431DISC, REAR

main42431-78010iAXVA80,AXVH80,MXVA80202406

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-33100iAXVA80,AXVH80,MXVA80202406

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-33100iAXVA80,AXVH80,MXVA80202406

4804

8 parts on this diagram · 1 diagram in section
